  11. Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Spring Clamp Terminals, Yellow

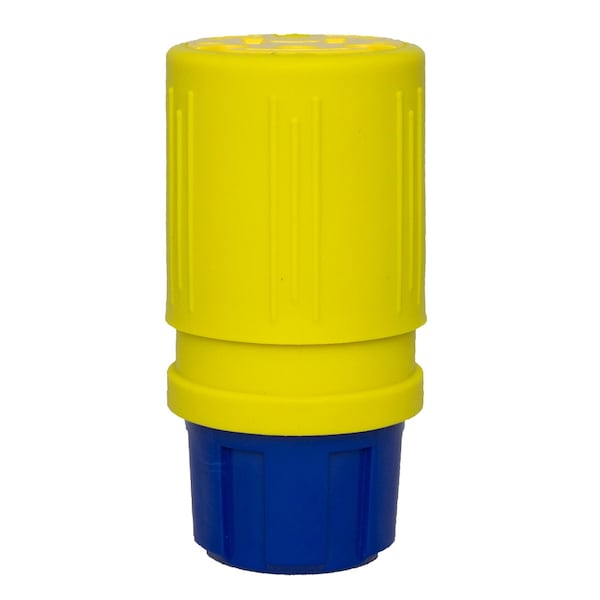

Ericson Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Spring Clamp Terminals, Yellow 1610-C - main

Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Spring Clamp Terminals, Yellow

  • Mfr # 1610-C

  • Zoro # G7165083

product price: $20.99
/ea

Key Features

NEMA Receptacle Configuration
5-15R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1610-C
Zoro #
G7165083
UPC #
782862587508
Country of Origin
United States

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Connection Orientation
Straight
Housing Color
Yellow
Cap Type
No Cap or Cover
Maximum Operating Temperature
100 Degrees C
Minimum Operating Temperature
-40 Degrees C
Standards
CSA Certified to CSA C22.2 No.42, File 31943, ETL Listed to ANSI/UL 498, UL Listed to ANSI/UL 498, File E17740, cETL Listed to CSA C22.2 No. 42
Resistance Properties
Chemica Resistant, Crush Resistant, Dust and Moisture Seal
Device Type
Connector
cETL
cETL Listed to CSA C22.2 No. 42
Blade Style
Straight
Sub Brand / Trademark
Perma-Link
Environmental Rating
Indoor
CSA
CSA Certified to CSA C22.2 No.42, File 31943
Case Qty
100
Poles / Wires
2P/3W
UL
UL Listed to ANSI/UL 498, File E17740
NEMA Configuration
NEMA 5-15
ETL
ETL Listed to ANSI/UL 498

Description

Connector Nema 5-15,Perma-Link Indust.
