Shop ERICSON

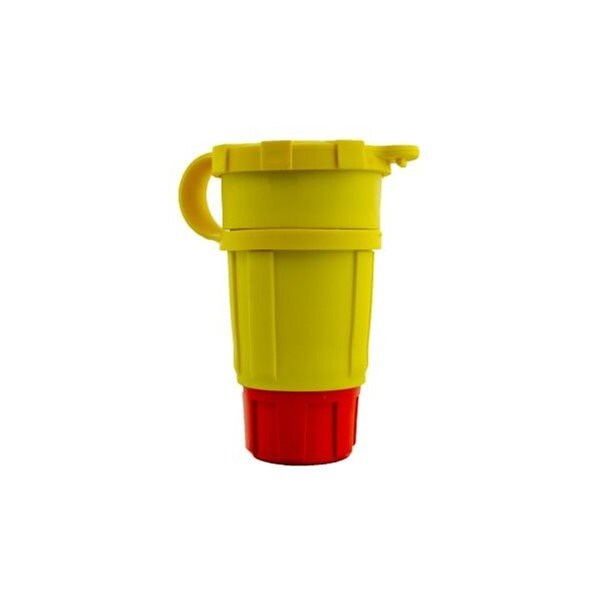

Watertight Locking Connector, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals

  • Mfr # 2420-CW6P-AM

  • Zoro # G707866357

product price:  $94.89
/ea

Key Features

NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2420-CW6P-AM
Zoro #
G707866357
UPC #
782862899878
Country of Origin
United States

Dimensions

For Minimum Cable Diameter
0.56 in
For Maximum Cable Diameter
0.77 in
Cord Size
0.560 in to 0.770 in

Details

Item
Watertight Locking Connector
NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Yellow
Cap Type
Press-On Cap
Standards
CSA Certified C22.2 No. 42 File 31943, NSF/ANSI/3-A 14159-1, UL Listed to ANSI/UL 498 File E17740
Resistance Properties
Antimicrobial, Watertight
NEMA Enclosure Rating
12, 4, 4X, 6, 7
Grade
Industrial
Market
Industrial
IP Rating
IP69K
Power Indicating Light
No
Midget Locking
No
Material
Thermoplastic Elastomer
Horsepower Rating
Not Rated
Housing Material
Thermoplastic Elastomer
Insulation Material
Thermoplastic
For Environment
Washdown
NEMA Rating
12, 4, 4X, 6, 6P
Power Indicator
No
Antimicrobial
Yes
Power and Ground Indicating Light
No

Description

Locking Connector, Current Rating 20 A, Housing Color Yellow, Housing Material Thermoplastic Elastomer, IP Rating IP69K, NEMA Receptacle Configuration L14-20R, Number of Poles 3, Number of Wires 4, Phase Single, Resistance Properties Antimicrobial, Shrouded Yes, Voltage Rating 125/250V AC, Wiring Style Standard, For Maximum Cable Diameter 0.77 in, For Minimum Cable Diameter 0.56 in, Grade Industrial, Horsepower Rating 2 hp, Market Industrial, Midget Locking No, NEMA Enclosure Rating 12, 4, 4X, 6
