Shop BRYANT

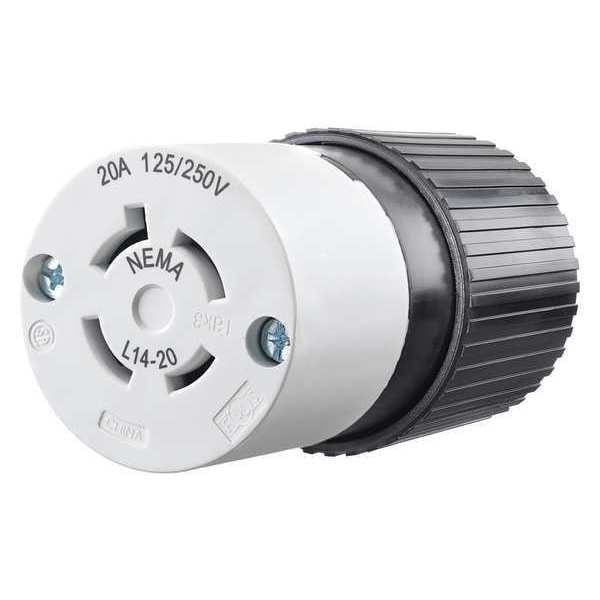

Locking Connector, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # 71420NC

  • Zoro # G4439830

product price:  $33.27
/ea

Key Features

NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71420NC
Zoro #
G4439830
UPC #
781786695191
Country of Origin
China

Dimensions

Cord Size
0.465 in to 1.150 in
Overall Length
2.13 in
Minimum Wire Size
18 AWG
Maximum Wire Size
8 AWG
Length
2.13 in
Height
3.90 in
Wire Size
#18 AWG to #8 AWG
For Minimum Cable Diameter
0.465 in
For Maximum Cable Diameter
1.15 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
IP Rating
IP20
Grade
Industrial
For Location
Indoor
Housing Material
Nylon
Polarized
Yes
Midget Locking
No
Market
Industrial
For Environment
Dry
Power Indicating Light
No
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Application
Heavy Duty Industrial
Style
Internal Cord Clamp
Insulation
Insulated Body
Features
Face and body feature alignment keys for easy assembly; Amperage, voltage and NEMA configuration imprinted on face for easy identification; Impact/chemical resistant, toughened nylon construction; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention
Conductor Range
#14 AWG to #12 AWG
Amperage Rating
20 A
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Material - Mounting Hardware
Cord Mounted
Power Indicator
No
Antimicrobial
No
Horsepower Rating
1 hp
Power and Ground Indicating Light
No
Series
Twist Lock
NEMA Enclosure Rating
Not Rated

Description

Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L14-20R, Number of Poles 3, Number of Wires 4, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Shrouded No, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Grade Industrial, Grounding Grounded, Market Industrial
