  6. Watertight Straight Blade Plug, 6-20P, 20 A, 250V AC, 2 Pole, Screw Terminals, Grounded

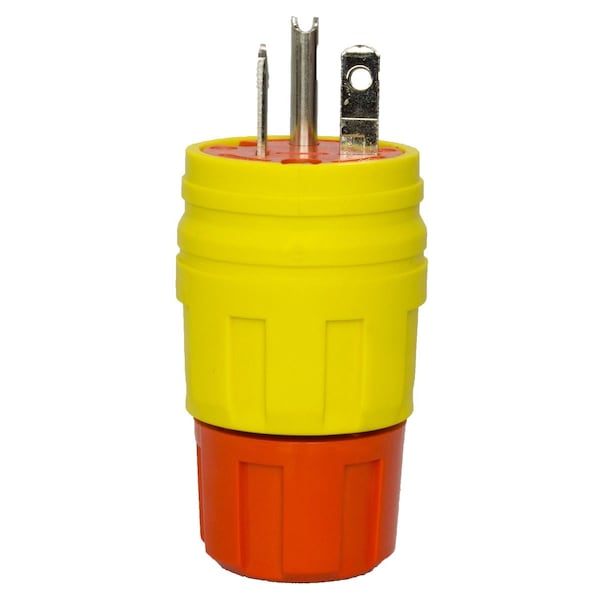

Ericson Watertight Straight Blade Plug, 6-20P, 20 A, 250V AC, 2 Pole, Screw Terminals, Grounded 1516-PW6P-AM - main

Watertight Straight Blade Plug, 6-20P, 20 A, 250V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # 1516-PW6P-AM

  • Zoro # G0116938

product price:  $30.92
/ea

Key Features

NEMA Plug Configuration
6-20P
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1516-PW6P-AM
Zoro #
G0116938
UPC #
782862899724
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.625 in
For Minimum Cable Diameter
0.30 in
Cord Size
0.300 in to 0.625 in

Details

Item
Watertight Straight Blade Plug
NEMA Plug Configuration
6-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP69K
Standards
CSA C22.2, UL 498
Resistance Properties
Antimicrobial, Corrosion Resistant
Material
Thermoplastic Elastomer
Grade
Industrial
Number of Wires
3
Special Features
Corrosion resistant
NEMA Plug Configuration - Plugs and Receptacles
6-20P
Antimicrobial
Yes
Voltage
250VAC
Phase - Plugs and Receptacles
1
HP
2.0
Corrosion Resistant
Yes
Grade - Plugs and Receptacles
Industrial
Insulation Material
Thermoplastic Elastomer
Horsepower Rating
2 hp
Housing Material
Thermoplastic Elastomer
Market
Industrial
For Environment
Washdown
NSF
NSF/ANSI/3-A 14159-1
Ideal Application
Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure.
Device Type
Plug
Environmental Rating
Watertight (IP69K)
UL
UL Listed to ANSI/UL 498, File E17740
Blade Style
Locking
Sub Brand / Trademark
Perma-Kleen
CSA
CSA Certified to CSA C22.2 No.42, File 31943
Case Qty
100
Poles / Wires
2P/3W

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating Not Rated, Housing Color Yellow, IP Rating IP69K, NEMA Plug Configuration 6-20P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Antimicrobial, Watertight, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.625 in, For Minimum Cable Diameter 0.3 in, Grade Industrial
