Shop ERIE

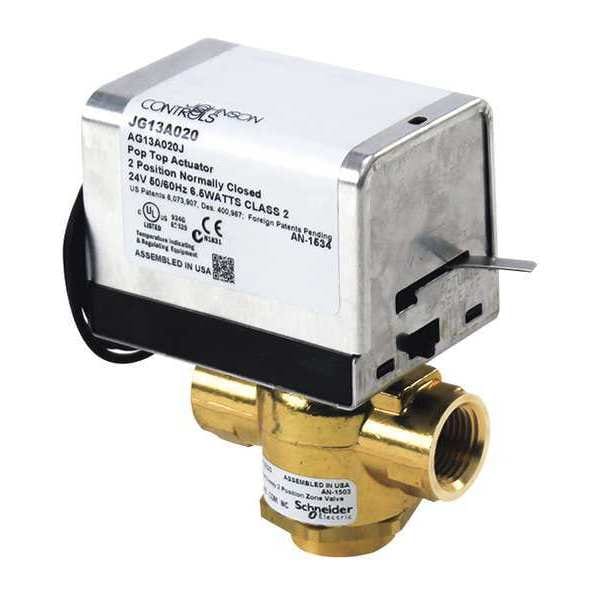

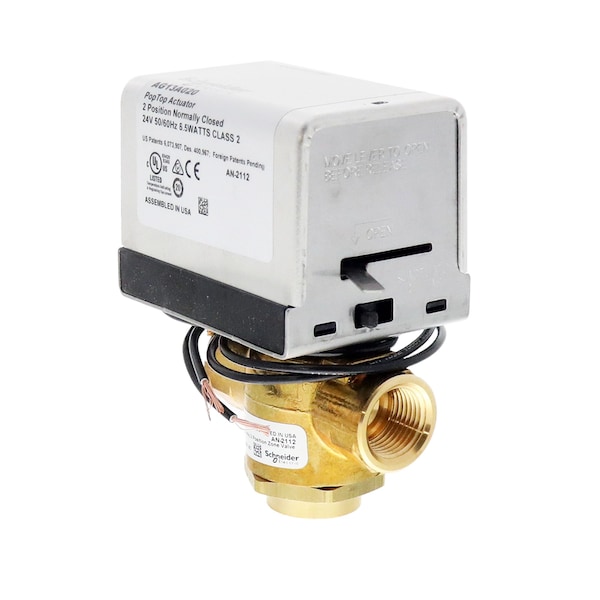

Valve 3 Way, 24V, 1/2in NPT

  • Mfr # VT3223G13A020

  • Zoro # G2494409

product price:
$
172.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V
Features
Connection
Type
6 in x 5 in x 3 in
Standards
UL Listed
Overall Length
6 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VT3223G13A020
Zoro #
G2494409
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
6 in
Overall Depth
3 in
Electrical Lead Length
18 in
Overall Width
5 in
Port Connection Size
1/2 in
Wire Rope Length
6 in
Length
6 in

Details

Item
Valve 3 Way, 24V, 1/2" NPT
Voltage
24V
Features
Connection
Type
6 in x 5 in x 3 in
Standards
UL Listed
Application
Chilled/Hot Water Control
Body Pattern
Three-Way
Includes Actuator
Actuator Included
Body Material
Brass
Actuator Voltage
24V AC
Coefficient of Volume (Cv)
4
Paddle Material
Buna-N
For Media
Water
Close-Off Pressure
25 psi
Frequency
50/60 Hz
Stem Material
Brass
Includes Electrical Leads
Electrical Leads Included
Actuator Return Action
Spring Return
Fluid Temperature - Maximum
200 Degrees F
Contact Form
SPDT
Actuator Control Signal
On/Off
Fluid Temperature - Minimum
32 Degrees F
Valve Action
Normally Closed
Port Connection Type
NPT
Spring Action
Spring Return
Product Type
Zone Valve

Description

Zone Valve, Actuator Control Signal On/Off, Actuator Return Action Spring Return, Actuator Voltage 24V AC, Application Chilled/Hot Water Control, Body Material Brass, Body Pattern Three-Way, Close-Off Pressure 25 psi, Coefficient of Volume (Cv) 4, Contact Form SPDT, Electrical Lead Length 18 in, Fluid Temperature - Maximum 200 Degrees F, Fluid Temperature - Minimum 32 Degrees F, For Media Water, Frequency 50/60 Hz, Includes Actuator Actuator Included
