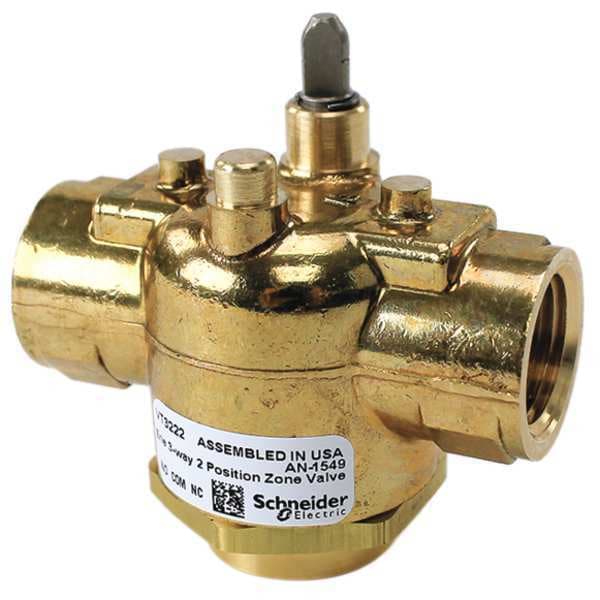

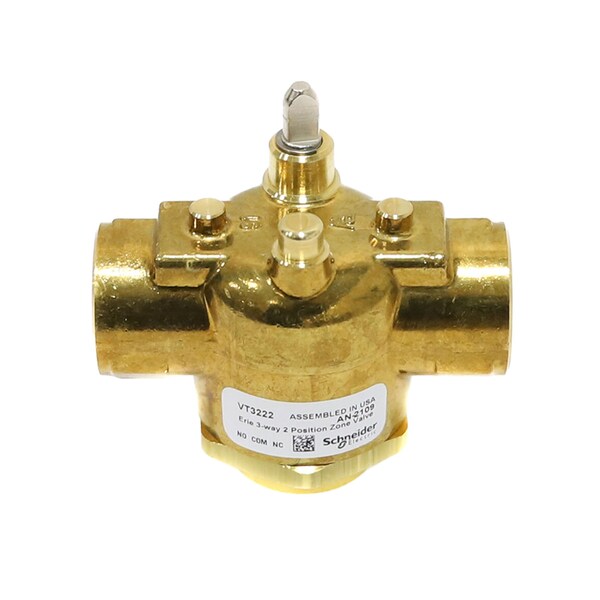

Valve Body, 1/2inNPT, 3 Way, 3.0 CV
- Mfr # VT3222
- Zoro # G2494311
product price:Â
$
67.79
/ea
Key Features
For Use With
Two Position (On/Off) Control of Fluid Flow in a Wide Variety of Heating and Cooling Applications
Features
Connection
Body Pattern
Three-Way
Port Connection Type
NPT
Port Connection Size
1/2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- VT3222
- Zoro #
- G2494311
- UPC #
- -
- Country of Origin
- United States
- Item
- Hydronic Zone Valve
- For Use With
- Two Position (On/Off) Control of Fluid Flow in a Wide Variety of Heating and Cooling Applications
- Features
- Connection
- Body Pattern
- Three-Way
- Port Connection Type
- NPT
- Coefficient of Volume (Cv)
- 3
- Product Type
- Zone Valve
- Application
- Chilled/Hot Water Control
- Includes Actuator
- Actuator Not Included
- Operating Temperature - Minimum
- 32 Degrees F
- Body Material
- Brass
- Compatible Actuator Manufacturer Part Number
- AG13B020
- Fluid Temperature - Minimum
- 32 Degrees F
- Fluid Temperature - Maximum
- 200 Degrees F
- Standards
- ANSI
- Valve Action
- Normally Open or Normally Closed
- For Media
- Water, Water-Glycol Solution to 50%
- Operating Temperature - Maximum
- 160 Degrees F
- Actuator Control Signal
- On/Off
- Port Connection Gender
- Female
Dimensions
- Port Connection Size
- 1/2 in
- Overall Length
- 2 3/4 in
- Overall Width
- 1 1/16 in
Description
Hydronic Zone Valve, Actuator Control Signal On/Off, Actuator Type Not Applicable, Actuator Voltage Not Applicable, Application Chilled/Hot Water Control, Body Material Brass, Body Pattern Three-Way, Close-Off Pressure Not Applicable, Coefficient of Volume (Cv) 3, Fluid Temperature - Maximum 200 Degrees F, Fluid Temperature - Minimum 32 Degrees F, For Media Water, Water-Glycol Solution to 50 Percent, Includes Actuator Actuator Not Included, Operating Temperature - Maximum 160 Degrees F
