  5. Tig Welder, ArcMaster 141 ACDC HF Series, 115V AC, 140 Max. Output Amps, 140A/15.6C Rated Output

This item is Discontinued.

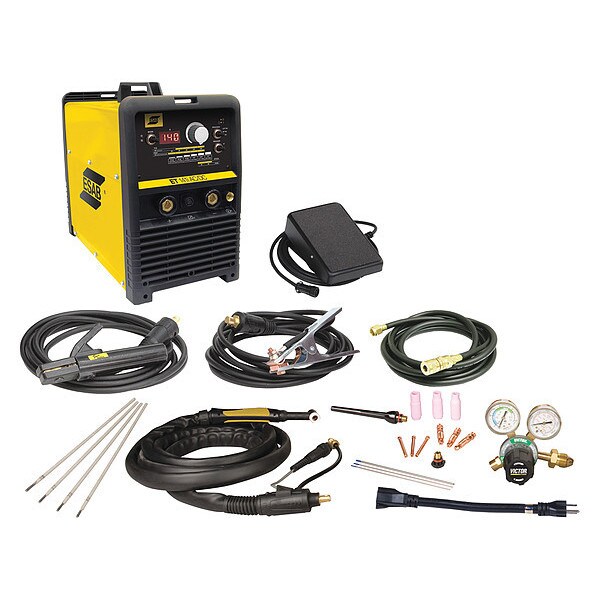

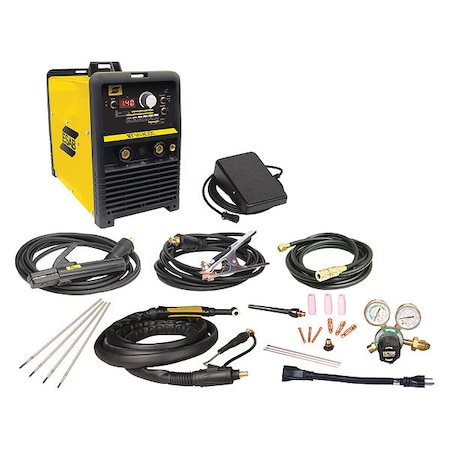

Esab Tig Welder, ArcMaster 141 ACDC HF Series, 115V AC, 140 Max. Output Amps, 140A/15.6C Rated Output W1006313

Tig Welder, ArcMaster 141 ACDC HF Series, 115V AC, 140 Max. Output Amps, 140A/15.6C Rated Output (Discontinued)

  • Mfr # W1006313
  • Zoro # G0311571
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
W1006313
Zoro #
G0311571
UPC #
822635031095
Country of Origin
China

Dimensions

Mild Steel - Material Thickness
0.030 in to 3/16 in
Aluminum - Material Thickness
Thin Gauge to 3/16 in
Overall Height
17 in
Overall Depth
15 3/4 in
Overall Width
9 9/20 in
For Maximum Material Thickness
3/16 in (Aluminum), 3/16 in (Mild Steel)
For Minimum Material Thickness
0.03 in (Mild Steel)
Power Cord Length
10 ft

Details

Item
TIG Welder
Welder Industrial Class
Light
Welding Processes
Stick, TIG
Input Voltage
115V AC
Rated Output
140A/15.6C
Welder Max. Output Amps
140
Welder Min. Output Amps
10
Welder Duty Cycle
60 %
Series
ArcMaster 141 ACDC HF
Welder Input Phase
1
Application
Aluminum Fabrication, Automotive, Boat and Trailer Repair, Home Hobbyists, Maintenance and Repair, On Site and Portable Welding Applications, Training Institutions
Features
AC Frequency preset sets the frequency of the AC square wave and Wave Balance sets the penetration to cleaning ratio when welding on aluminum. AC/DC TIG mode selection for aluminum and ferrous alloys, stainless and mild steel, and chrome molys. Lift TIG Start provides optimized TIG arc starting without the use of high frequency. Preflow and postflow preset controls shielding gas before and after the weld. Hot Start ensures good arc starting when Stick welding
Welder Input Hz
50/60
Power Source Weight
48 lb
Input (Amps)
15/20
Welded Material
Aluminum, Mild Steel, Stainless Steel
Includes
10 ft power cord and NEMA 5-20P 120 V AC plug, 13 ft 4 general purpose stick electrodes (E6013), 150A electrode holder with 13 ft lead, 150A ground clamp with 10 ft lead, 17 Style, Argon flow gauge regulator and 12.5 ft hose, ET 141i AC/DC power supply, foot control with 15 ft cable and operator's manual., power adapter 120V 20A to 15A, TIG torch and accessories
Polarity
AC/DC
Stick Welding Minimum Output Current
10 A
Max. Amperage Range (TIG)
Less than 150 A
Power Cord Included
Yes
Amperage Range
10 to 140 A
Remote Control
Foot Control Included
Weight
48 lb
Input Frequency
50/60 Hz
Welder Kit Type
Stick/TIG Package w/Foot Control
TIG Welding Minimum Output Current
10 A
Stick Welding Output @ Duty Cycle
90 A @ 23.6 V , 20%
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
Kit Includes
Flow Gauge/Regulator & Gas Hose, Foot Control, Stick Electrode Holder with Cable, Stick Electrodes, TIG Torch, Work Cable with Clamp
Rated Output at Duty Cycle (TIG)
140 A @ 20%, 60 A @ 100%, 75 A @ 60%
Open Circuit Voltage
77.6/92.8V DC
Plug Type
5-20P
Stick Welding Maximum Output Current
140 A
TIG Welding Maximum Output Current
140 A
Input Voltage (Nominal)
120V
Color
Yellow
Max. Input Current
20A @ 115V
Welding Mode
CC
Remote Connection Type
8-Pin (ESAB)
For Material Type
Aluminum, Mild Steel, Stainless Steel
TIG Welding Output @ Duty Cycle
140 A @ 15.6 V, 20%, 60 A @ 12.4 V @ 100%, 75 A @ 13 V @ 60%
Model
W1006313
Process
Stick Welding (SMAW), TIG Welding (GTAW)
brand-mfr model
ESAB - W1006313

Description

TIG Welder, For Material Type Aluminum, Mild Steel, Stainless Steel, For Maximum Material Thickness 3/16 in (Aluminum), 3/16 in (Mild Steel), For Minimum Material Thickness 0.03 in (Mild Steel), Input Frequency 50/60 Hz, Max. Input Current 20A @ 115V, Phase Single-Phase, Polarity AC/DC, Series ET 141i, Stick Welding Maximum Output Current 140 A, Stick Welding Minimum Output Current 10 A, Stick Welding Output @ Duty Cycle 90 A @ 23.6 V , 20 Percent, TIG Welding Maximum Output Current 140 A
