Shop ESSEX

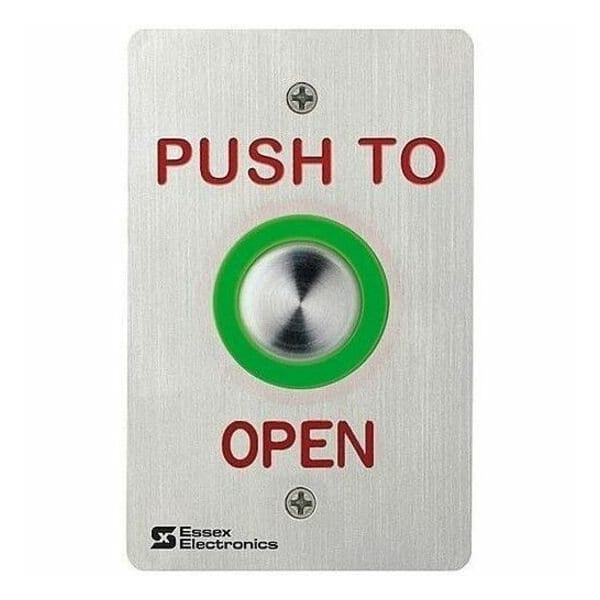

Single Gang Piezoelectric Switch, SS

  • Mfr # PEB-2SO

  • Zoro # G104397737

product price:
$
115.99
/ea
Free Shipping & Returns

Key Features

Type
Push to Open
Switch Action
Push Button
Material
Stainless Steel
For Use With
Any Electrically Controlled Device, Automatic Door, Electric Lock/Strike, Magnetic Lock
Input Voltage
12 to 24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PEB-2SO
Zoro #
G104397737
UPC #
666272109614
Country of Origin
United States
Item
Exit Push Button
Type
Push to Open
Switch Action
Push Button
Material
Stainless Steel
For Use With
Any Electrically Controlled Device, Automatic Door, Electric Lock/Strike, Magnetic Lock
Input Voltage
12 to 24V DC
Standards
UL 294
Finish
Stainless Steel
Performance
Heavy-Duty
Exit Device Type
Mortise
Amps AC
10 mA to 120 m
Color
Gray
Operating Temp.
-40 Degrees to 160 Degrees F
ADA Compliant
No
Output
1 N/C, 1 N/O
Supports Touchless Operation
No
Features
Adjustable 1 to 40 sec Output Time, IP66 Rated, Vandal-Resistant
Keypad
1 Button
Rating
2A @ 30 V DC
Button Color
Silver
Power Source
DC Power
Supports Operation Type
Push-Button Operation
Operation Style
Manual
Operating Temperature - Maximum
160 Degrees F
Failure Mode
Fail Safe or Fail Secure
Operating Temperature - Minimum
-40 Degrees F
ANSI/BHMA Finish
Unfinished
Operation Type
Push Button
Voltage
125V AC, 30V DC
Product Type
Exit Push Button
Performance Grade
1
Power Source - TS Only
DC Power
Power Source - old
DC Power

Description

Exit Push Button, Type Push to Open, Switch Action Push Button, Material Stainless Steel, Finish Stainless Steel, Depth 1 1/4 in, Height 4 1/2 in, Width 2 3/4 in, Button Color Silver, Color Gray, Rating 2A @ 30 V DC, Input Voltage 12 to 24V DC, Output 1 N/C, 1 N/O, Amps AC 10 mA to 120 m, Operating Temp. -40 Degrees to 160 Degrees F, Keypad 1 Button, Standards UL 294, For Use With Any Electrically Controlled Device, Automatic Door, Electric Lock/Strike, Magnetic Lock, Exit Device Type Mortise
