  11. Touchless Switch, Stainless Steel

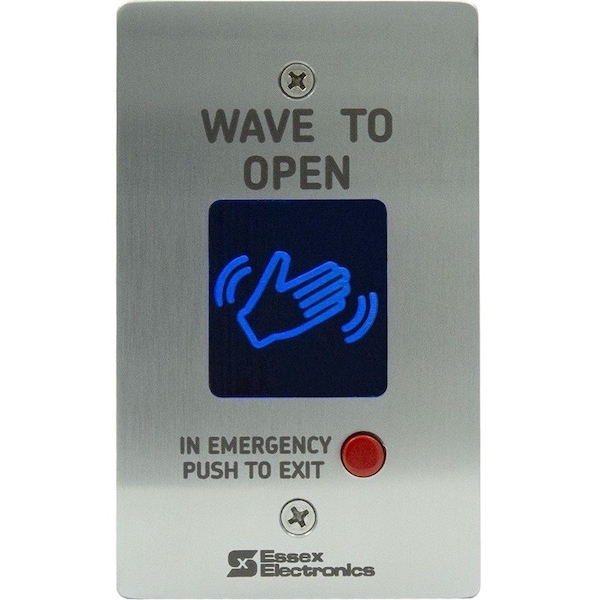

Essex Touchless Switch, Stainless Steel HEWMO - 2 - main

Touchless Switch, Stainless Steel

  • Mfr # HEWMO - 2

  • Zoro # G200892648

product price: $242.99
/ea
Free Shipping & Returns

Key Features

Type
Single Gang
Switch Action
DPDT
Includes
(2) Wire Mechanical Switches
Material
Stainless Steel
For Use With
Access control, Automatic Door Operators
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HEWMO - 2
Zoro #
G200892648
UPC #
666272109096
Country of Origin
United States

Dimensions

Depth
1 1/4 in
Button Dia.
5/8"
Fits Stile Width
2 3/4 in
Width
2 3/4 in
Height
4 1/2 in
Overall Height
4 1/2 in
Overall Width
2 3/4 in
Overall Depth
1 1/4 in

Details

Item
Wave-to-Open Touch Plate
Type
Single Gang
Switch Action
DPDT
Includes
(2) Wire Mechanical Switches
Material
Stainless Steel
For Use With
Access control, Automatic Door Operators
Input Voltage
12/24V AC/DC
Standards
UL 294
Finish
Stainless Steel
Output
DPDT Relay
Supports Touchless Operation
Yes
Grade
Professional
Door Handing
Hands-Free
Event Audit Trail
No
Voltage
125V AC, 30V DC
Fire Rated
No
ADA Compliant
No
Features
24 GHz Doppler Radar Technology, Adjustable Detection Zone From 2 to 24 in, Visual and Selectable Audio Activation Feedback
Operating Temp.
-40 Degrees to 180 Degrees F
Keypad
No
Amps AC
0.5 A @ 125 V AC
Performance
Heavy-Duty
Button Color
Red
Rating
2A @ 30 V DC
Color
Gray
Power Source
AC/DC Power
Supports Operation Type
Touchless Operation
Operation Style
Automatic
Operating Temperature - Minimum
-40 Degrees F
ANSI/BHMA Finish
Unfinished
Includes Hardware
Hardware Included
Product Type
Wave-to-Open Touch Plate
Failure Mode
Fail Safe
Operating Temperature - Maximum
180 Degrees F
Operation Type
Wave-to-Open
Performance Grade
1
Hand Orientation
Non-Handed

Description

Wave-to-Open Touch Plate, Type Single Gang, Switch Action DPDT, Material Stainless Steel, Finish Stainless Steel, Depth 1 1/4 in, Height 4 1/2 in, Width 2 3/4 in, Button Color Red, Color Gray, Button Dia. 5/8 In., Rating 2A @ 30 V DC, Input Voltage 12/24V AC/DC, Output DPDT Relay, Amps AC 0.5 A @ 125 V AC, Operating Temp. -40 Degrees to 180 Degrees F, Event Audit Trail No, Keypad No, Standards UL 294, For Use With Access control, Automatic Door Operators, Includes (2) Wire Mechanical Switches
