  15. 2NC/2NO Limit Switch IP 67

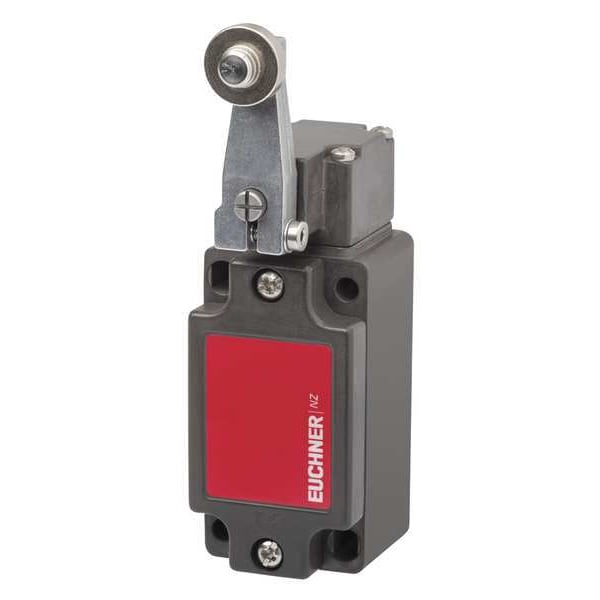

Euchner 2NC/2NO Limit Switch IP 67 NZ1HS-3131-M - main

2NC/2NO Limit Switch IP 67

  • Mfr # NZ1HS-3131-M

  • Zoro # G1890421

product price: $124.99
/ea
Free Shipping & Returns

Key Features

Contact Form- Switches
2NC/2NO
Series
Euchner NZ
Movement
Horizontal
Height
3.93 in
Width
1.57 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NZ1HS-3131-M
Zoro #
G1890421
UPC #
-
Country of Origin
Germany

Dimensions

Height
3.93 in
Width
1.57 in
Depth
2.51 in
Actuator Length
1.26 in
Roller Width
0.24 in
Body Width
1.57 in
Body Depth
2.52 in
Body Height
3.94 in
Overall Depth
2.52 in
Mounting Hole Diameter
0.21 in
Overall Height
3.94 in
Overall Width
1.57 in
Roller Diameter
0.71 in

Details

Item
Limit Switch
Contact Form- Switches
2NC/2NO
Series
Euchner NZ
Movement
Horizontal
Operating Force
54 oz
Body Material
Aluminum
Contact Form
2NC/2NO
Operating Temp. Range
-13 Degrees to 176 Degrees F
Standards
CCC, CE, cULus
IP Rating
67
Actuator Style
Rotary Lever
Arm Material
Metal
DC Contact Rating
4 A @ 24 V
AC Contact Rating
4 A @ 230 V
Roller Material
Steel
Contact Form - Limit Switch
2NC/2NO
Electrical Connection
Screw Terminals
Actuator Location
Side
Mounting Style
Surface
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
176 Degrees F
Total Travel
75 Degrees
Mounting Hole Horizontal Center to Center Distance
30 mm
Hazardous Location Specification
Not Rated
Boot Sealed Actuator
No Boot Included
Roller Adjustability
Fixed
Pretravel
20 Degrees to 30 Degrees
Arm Adjustability
Fixed
Includes Actuator
Actuator Included
Directional Movement
Linear
Operating Force - Maximum
30 N
Lamp Type
No Lamp Module Included
Number of Mounting Holes
4
Overtravel
45 Degrees to 55 Degrees
Action
Momentary
Operating Force - Minimum
15 N
Body Configuration
Non Plug-In
Mounting Hole Vertical Center to Center Distance
60 mm
Roller Position
Front

Description

Rotary Lever Limit Switch, Electrical Connection Screw Terminals, IP Rating IP67
