Exair

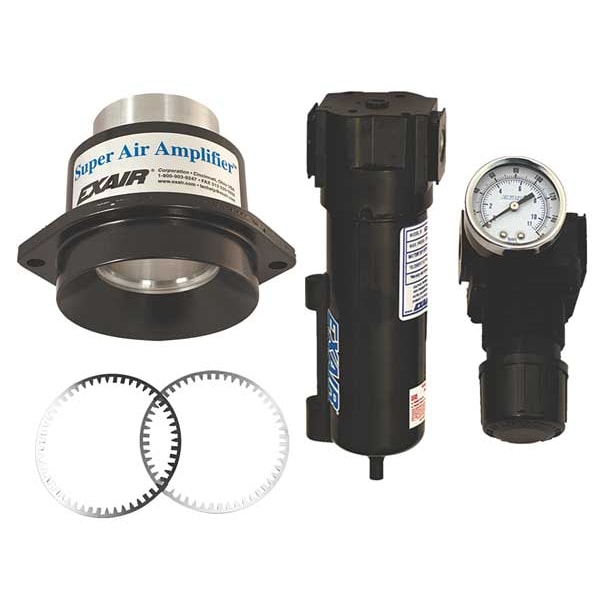

Air Amplifier Kit, 2 In Inlet, 15.5 CFM

product price: $493.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Output High Efficiency Fixed
  • Material Aluminum
  • CFM @ 80 PSI 15.5 cfm
  • Amplification Ratio 22
  • Air Output Volume CFM @ 80 psi 1,023 cfm
See all product information

Product Information

Dimensions

Inside Dia. 1.64 in
Inlet Dia. 2.0 in
Overall Length 4 1/8 in
Discharge Dia. 2 in
Inlet Diameter 2 15/16 in
Flow Pattern Width at 3 Inches 2 3/4 in
Flow Pattern Width at 18 Inches 6 3/4 in
Throat Diameter 1 5/8 in
Flow Pattern Width at 12 Inches 5 1/8 in
Mounting Hole Diameter 1/4 in
Overall Width 3 in
Inlet Size 3/8 in
Overall Height 3 in
Flow Pattern Width at 6 Inches 3 9/16 in

Details

Item Air Amplifier Kit
Output High Efficiency Fixed
Material Aluminum
CFM @ 80 PSI 15.5 cfm
Amplification Ratio 22
Air Output Volume CFM @ 80 psi 1,023 cfm
Air Inlet 3/8 in NPT
Max. dBA 72 dBA
Pressure Range 5 to 120 psi
Includes Super Air Amplifier
Temp. Rating 275 Degrees F
Body Material Aluminum
Maximum Sound Level 72 dBA
Minimum Operating Pressure 5 psi
Includes Pressure Regulator Pressure Regulator Included
Maximum Operating Pressure 80 psi
Includes Filter Separator Filter Separator Included
System of Measurement Inch
Includes Shims Shim Set Included
Air Inlet Type NPT
Standards CE, EU Directive 2001/95/EC, EU Directive 2006/42/EC
Product Type Air Amplifier Kit
Maximum Operating Temperature 275 Degrees F
Air Output Volume at 6 Inches 1,023 scfm
Air Output Volume @ 80 psi 341 scfm
Air Consumption 15.5 scfm
Mounting Hole Center to Center Distance 3 9/16 in
Number of Mounting Holes 2
Output Type High Efficiency Fixed
For Fluid Type Compressed Air

Description

Air Amplifier Kit, Amplification Ratio 22, Inlet Size 3/8 in, Air Inlet Type NPT, Inlet Diameter 2 15/16 in, Discharge Dia. 2 in, Maximum Sound Level 72 dBA, Body Material Aluminum, Air Consumption 15.5 scfm, Air Output Volume @ 80 psi 341 scfm, Output Type High Efficiency Fixed, Includes Super Air Amplifier, Includes Filter Separator Filter Separator Included, Includes Pressure Regulator Pressure Regulator Included, Includes Shims Shim Set Included, Mounting Hole Diameter 1/4 in
