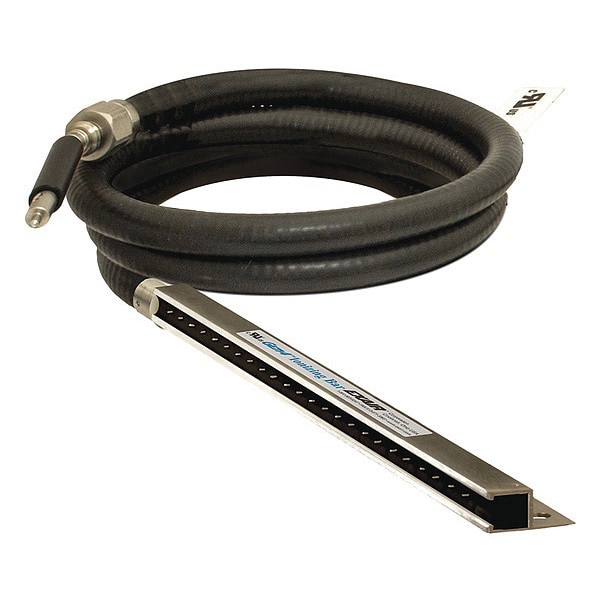

Ionizing Bar, GEN4, 12"
- Mfr # 8012
- Zoro # G7194387
product price:Â
$
365.99
/ea
Free Shipping & Returns
Key Features
Features
Effective upto 4 in Shockless Non-Radioactive, Electromagnetically Shielded Cable, Eliminates Additional Ground Connection, Fully Assembled, Integrated Ground, Rapid Static Decay, Stainless Steel Connections to Power Supply
Includes
5 ft Armored and Electromagnetically Shielded Cable, Assembled Connector
Length
13 5/8 in
Overall Height
5/8 in
Maximum Distance from Charged Surface
4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 8012
- Zoro #
- G7194387
- UPC #
- -
- Country of Origin
- United States
- Item
- Ionizing Bar
- Features
- Effective upto 4 in Shockless Non-Radioactive, Electromagnetically Shielded Cable, Eliminates Additional Ground Connection, Fully Assembled, Integrated Ground, Rapid Static Decay, Stainless Steel Connections to Power Supply
- Includes
- 5 ft Armored and Electromagnetically Shielded Cable, Assembled Connector
- Maximum Distance from Charged Surface
- 4 in
- Standards
- CE, cRUus, cULus, EMC, EU General Product Safety Directive (2001/95/EC), EU Machinery Directive (2006/42/EC), RoHS, UL 94 HB (Plastic Parts)
- Static Discharge Time
- 0.1 sec, 0.14 sec, 0.29 sec, 0.53 sec, 0.96 sec
- Product Type
- Ionizing Bar
- Operating Temperature - Maximum
- 165 Degrees F
- Charged Surface Distance - Maximum
- 4 in
- Calibration Certificate Type
- Not Certified
- Input Voltage - Maximum
- 5 kV
Dimensions
- Length
- 13 5/8 in
- Overall Height
- 5/8 in
- Depth
- 1/2 in
- Ionizer Bar Working Length
- 12 in
- Ionizer Bar Working Width
- 12 in
- Cord Length
- 5 ft
- Overall Width
- 13 5/8 in
- Overall Depth
- 1 1/8 in
Description
Ionizing Bar, Static Discharge Time 0.1 sec, 0.14 sec, 0.29 sec, 0.53 sec, 0.96 sec, Depth 1/2 in, Features Effective upto 4 in Shockless Non-Radioactive, Electromagnetically Shielded Cable, Eliminates Additional Ground Connection, Fully Assembled, Integrated Ground, Rapid Static Decay, Stainless Steel Connections to Power Supply, Includes 5 ft Armored and Electromagnetically Shielded Cable, Assembled Connector, Length 13 5/8 in, Product Type Ionizing Bar
