  9. Vortex Tube, 30 CFM, 2000 BtuH, NEMA 12
Shop All Vortex Tubes
Exair

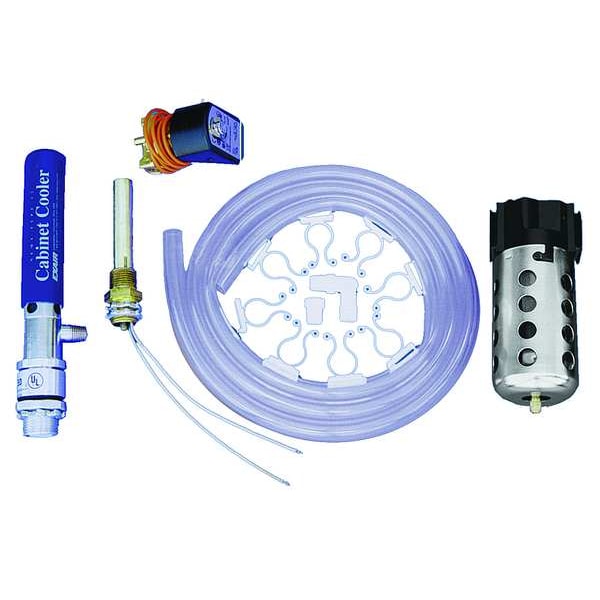

Vortex Tube, 30 CFM, 2000 BtuH, NEMA 12

product price: $842.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material Aluminum, Stainless Steel
  • CFM @ 100 psi 30 cfm
  • Max. dBA 74 dBA
  • BtuH @ 100 psi 2,000 BtuH
  • Air Inlet 1/4 in (M)NPT
See all product information

Product Information

Dimensions

Outside Dia. 1.34 in
Overall Length 8 5/8 in
Mounting Hole Size 1.13 in
Inlet Size 1/4 in
Body Length 8 in
Mounting Stud Thread Size 3/4 in
Mounting Hole Diameter 1 1/8 in
Body Outside Diameter 1 5/16 in

Details

Item Vortex Tube Enclosure Cooler
Material Aluminum, Stainless Steel
CFM @ 100 psi 30 cfm
Max. dBA 74 dBA
BtuH @ 100 psi 2,000 BtuH
Air Inlet 1/4 in (M)NPT
Standards EU (2001/95/EC), EU (2006/42/EC), UL Listed
Pressure Range 80 to 120 psi
Temp. Rating 125 Degrees F
Includes Thermostat
Mounting Thread 3/4 in NPS
NEMA Enclosure Rating 12
Mounting Style Side Tapped
Series Cabinet Cooler
IP Rating IP54
Mounting Orientation Vertical
Minimum Operating Pressure 80 psi
Maximum Operating Temperature 125 Degrees F
Maximum Flow Rate 30 cfm
Cooling Capacity 2,000 BtuH
Body Material Aluminum
Maximum Operating Pressure 120 psi
Maximum Differential Temperature Setting 125 Degrees F
Maximum Sound Level 74 dBA
Inlet Gender Male
For Fluid Type Compressed Air
Mounting Stud Thread Type NPS
System of Measurement Inch
Air Inlet Type NPT

Description

Vortex Tube Enclosure Cooler, Maximum Flow Rate 30 cfm, Cooling Capacity 2,000 BtuH, Maximum Differential Temperature Setting 125 Degrees F, Body Material Aluminum, Inlet Size 1/4 in, Air Inlet Type NPT, Inlet Gender Male, Mounting Hole Diameter 1 1/8 in, Maximum Sound Level 74 dBA, Maximum Operating Temperature 125 Degrees F, NEMA Enclosure Rating 12, Series Cabinet Cooler, Includes Thermostat, Mounting Stud Thread Size 3/4 in, Mounting Stud Thread Type NPS, IP Rating IP54
