Shop EXTECH

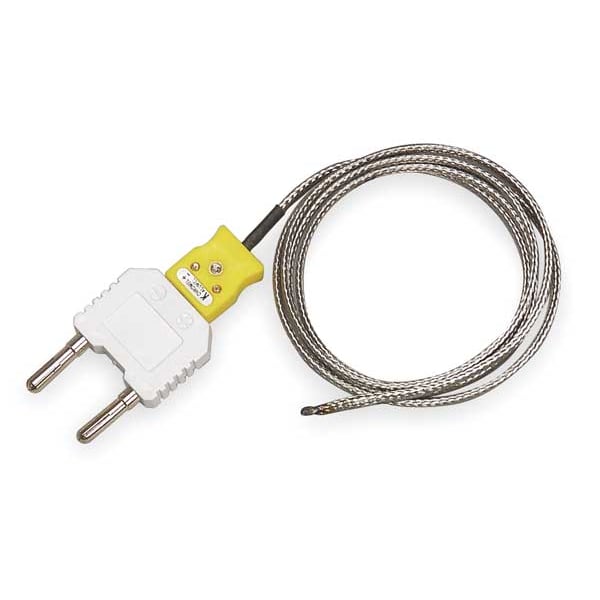

Bead Wire Temp Probe, -58 to 1000 Deg F

  • Mfr # TP875

  • Zoro # G3467965

product price:  $45.99
/ea

Key Features

Sensor Type
Thermocouple
Temp. Range (F)
-58 Degrees to 1000 Degrees
Temp. Range (C)
-50 Degrees to 538 Degrees
Primary Measuring Element
Thermocouple
Probe Temp. Measuring Element
K Thermocouple
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
TP875
Zoro #
G3467965
UPC #
793950388754
Country of Origin
China

Dimensions

Probe Wire Length
3 ft 3 in
Wire Length
3 ft. 3"
Manufacturers Warranty Length
1 yr
Cable Length
39 in
Manufacturer Warranty Length
1 yr
Probe Diameter
0.167 in
Probe Tip Diameter
0.091 in

Details

Item
Bead Wire Temperature Probe
Sensor Type
Thermocouple
Temp. Range (F)
-58 Degrees to 1000 Degrees
Temp. Range (C)
-50 Degrees to 538 Degrees
Primary Measuring Element
Thermocouple
Probe Temp. Measuring Element
K Thermocouple
Probe Connector
Mini
Probe Connection Type
Type K Mini Jack with Dual Banana Plug Adapter
Probe Contact Material
Welded Bead
Use
Air or Surface
Response Time
Less Than 2 sec
For Use With
Type K Temperature Function
Temperature Measuring Element
K Thermocouple
Includes
Instructions
Maximum Temperature C
538 Degrees C
Head Material
Welded Bead
Minimum Temperature C
-50 Degrees C
Includes Thermowell
No
For Surfaces
Yes
For Solids
No
Probe Bend
Straight
Connector Type
Banana Plug, Mini Plug
Maximum Temperature F
1,000 Degrees F
For Gases
No
Minimum Temperature F
-58 Degrees F
Temperature Range
-58 Degrees to 1,000 Degrees F/-50 Degrees to 538 Degrees C
For Application
Air, Surface
For Air
Yes
Tip Style
Rounded
For Liquids and Gels
No
Thermocouple Type
Type K
Maximum Temperature °C
538 Degrees C
Maximum Temperature °F
1,000 Degrees F
Minimum Temperature °F
-58 Degrees F
Minimum Temperature °C
-50 Degrees C
Maximum Temperature °C
538 Degrees C
Minimum Temperature °F
-58 Degrees F
Maximum Temperature °F
1,000 Degrees F
Minimum Temperature °C
-50 Degrees C
Probe Sheath Material
Polyolefin
Junction Type
Exposed
For Media Type
Surfaces
Maximum Temperature (°C)
538 Degrees C
Maximum Temperature (°F)
1,000 Degrees F
Cable Material
Nickel-Chromium ,Nickel-Silicon
Accuracy
+/-2.5 Degrees C or +/-0.75 % of Reading, Whichever is Greater

Description

Bead Wire Temperature Probe, Type K, For Application Air, Surface, Banana Plug, Mini Plug, Cable Length 39 in, -58 Degrees to 1,000 Degrees F/-50 Degrees to 538 Degrees C, Thermocouple
