Shop EXTECH

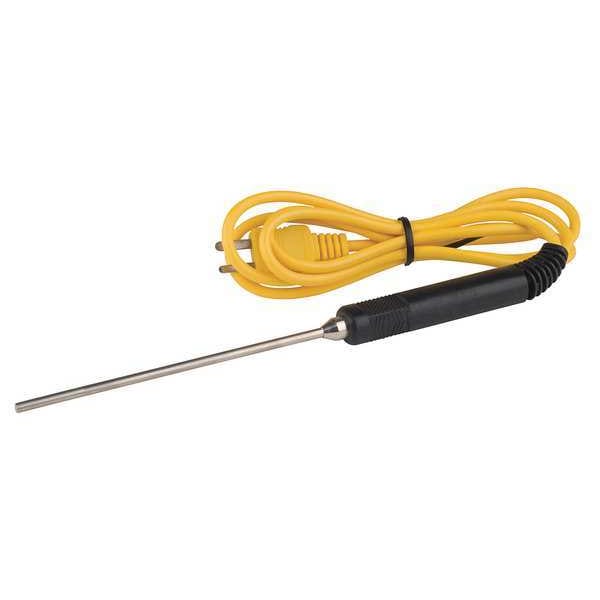

Temperature Probe, Mini Plug, Type K

  • Mfr # 871515

  • Zoro # G4076956

product price:  $53.99
/ea

Key Features

Sensor Type
Thermocouple
Temp. Range (F)
-40 Degrees to 1292 Degrees
Temp. Range (C)
-40 Degrees to 700 Degrees
Probe Length
4 in
Primary Measuring Element
Thermocouple
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
871515
Zoro #
G4076956
UPC #
793950871515
Country of Origin
Taiwan, Province of China

Dimensions

Probe Length
4 in
Probe Wire Length
3 ft 3 in
Wire Length
3 ft. 3"
Probe Dia.
3/23 in
Cable Length
39 in
Manufacturer Warranty Length
6 mo
Probe Size
1/8 in x 4 in
Probe Diameter
0.125 in
Probe Tip Diameter
0.125 in

Details

Item
Immersion Temperature Probe
Sensor Type
Thermocouple
Temp. Range (F)
-40 Degrees to 1292 Degrees
Temp. Range (C)
-40 Degrees to 700 Degrees
Primary Measuring Element
Thermocouple
Probe Temp. Measuring Element
K Thermocouple
Probe Connection Type
Type K Sub Mini
Probe Contact Material
Stainless Steel
Accuracy
+/-2 % of Reading or +/-4 Degrees F/2 Degrees C
Use
Air or Liquids
Response Time
Less Than 2 sec
Temperature Measuring Element
K Thermocouple
Probe Material
Stainless Steel
Process Connection
1/4 in NPT, Compression Fitting
Fitting Type
Compression
Head Material
Stainless Steel
Maximum Temperature C
700 Degrees C
Process Mounting
Type K Connection
For Air
Yes
Head Connection
1/4 in NPT
Minimum Temperature F
-40 Degrees F
For Surfaces
Yes
Temperature Range
-40 Degrees to 1,292 Degrees F/-40 Degrees to 700 Degrees C
For Gases
No
Minimum Temperature C
-40 Degrees C
Tip Style
Rounded
Includes Thermowell
No
Thermocouple Type
Type K
For Liquids and Gels
Yes
Probe Bend
Straight
Maximum Temperature F
1,292 Degrees F
For Solids
No
For Application
Air, Liquid, Surface
Connector Type
Mini Plug
Minimum Temperature °C
-40 Degrees C
Maximum Temperature °C
700 Degrees C
Maximum Temperature °F
1,292 Degrees F
Minimum Temperature °F
-40 Degrees F
Maximum Temperature °F
1,292 Degrees F
Minimum Temperature °C
-40 Degrees C
Maximum Temperature °C
700 Degrees C
Minimum Temperature °F
-40 Degrees F
Maximum Temperature (°C)
700 Degrees C
Cable Material
Polyurethane
Handle Type
Straight Handle
For Media Type
Liquids and Gels, Surfaces
Maximum Temperature (°F)
1,292 Degrees F
Junction Type
Exposed
Probe Sheath Material
316 Stainless Steel

Description

Immersion Temperature Probe, Type K, For Application Air, Liquid, Surface, Type K Connection, Mini Plug, Probe Size 1/8 in x 4 in, Cable Length 39 in, -40 Degrees to 1,292 Degrees F/-40 Degrees to 700 Degrees C, Thermocouple
