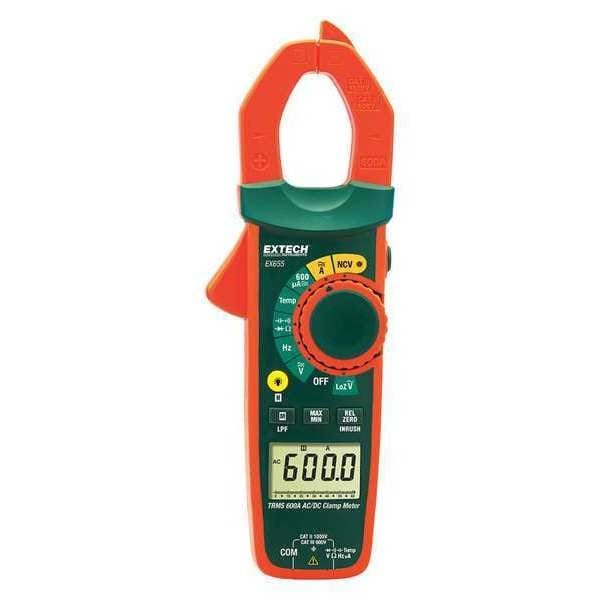

Clamp Meter, Digital, AAA, 600 Max. AC Amps

Clamp Meter, Digital, AAA, 600 Max. AC Amps

Mfr # EX655-NIST
Zoro # G0580358

$359.99

Free Shipping & Returns

Key Features

Digital/Analog

Digital

Max. AC Amps

600

Clamp Meter Jaw Style

Clamp On

Max. DC Volts

1,000 V

Max. Ohms

60 megaohm

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

EX655-NIST

Zoro #

G0580358

UPC #

793950396568

Country of Origin

China

Dimensions

Max. Conductor Size

500 kcmil

Manufacturers Warranty Length

3 yr

Maximum Conductor Size

350MCM

Battery Size

AAA

Overall Width

3 in

Overall Height

1.6 in

Details

Item

Digital Clamp Meter

Digital/Analog

Digital

Max. AC Amps

600

Clamp Meter Jaw Style

Clamp On

Max. DC Volts

1,000 V

Max. Ohms

60 megaohm

Jaw Capacity

1.2 in (30 mm)

Temp. Range

-40 Degrees to 1832 Degrees F

Safety Rating

CAT II 1000V, CAT III 600V

Display

LCD

Jaw Opening

1.18 in

Max. DC Amps

600

Max. AC Volts

750 V

Calibration Frequency

50 to 60 Hz

Audible Continuity

Yes

AC Current Accuracy

+/-2.5%

Bar Graph

Yes

Inrush

Yes

Peak Hold

Includes

(3) AAA Batteries, General Purpose Bead Wire Temperature Probe, Test Leads

Capacitance

60 mF

Frequency Counter

10 Hz to 1 MHz

Operating Temp.

32 Degrees to 122 Degrees F

Standards

CE, cULus

Calibration Certificate

Included

Battery Type

AAA

Auto Ranging

Yes

Thermometer Type

Type K Thermocouple

Non-Contact Voltage Detector

Yes

Auto Power Off

Yes

Special Features

1.18" (30mm) jaw size accomodates conductors up to 350MCM, 6000 count backlit LCD display with bargraph, Built-in LED flashlight for working in dimly-lit areas, Built-in non-contact voltage detector (NCV) with LED indicator, DC Zero mode, Data Hold, Min/Max, Relative function, Auto Power Off, Inrush mode captures current surges during motor startup, Low Impedance (LoZ) prevents false reading caused by ghost voltages, Low Pass Filter (LPF) for accurate measurements of variable frequency drive signals

AC Response

TRMS

Counts

6,000

Data Hold

Yes

Diode Test

Yes

Data Logging

Yes

Memory

Max/Min

Minimum Storage Temperature

-4 Degrees F

Basic DC Current Accuracy

+/-2.50%

Thermal Imaging

Frequency Measurement Accuracy

+/-0.10%

Minimum Operating Temperature

32 Degrees F

Frequency Measurement Resolution

0.01 Hz

Maximum AC Current Measurement

600 A

Capacitance Measurement Accuracy

+/-10.00%

Minimum AC Voltage Measurement

6 V

Basic AC Voltage Accuracy

+/-1.50%

AC Current Measurement Resolution

0.1 uA, 0.01 A

Maximum Capacitance Measurement

60 mF

DC Current Measurement Resolution

0.1 uA

Maximum Storage Temperature

140 Degrees F

Removable Screen

Minimum DC Voltage Measurement

600 mV

Minimum DC Current Measurement

60 A

Minimum AC Current Measurement

60 A

Battery Access

Yes

Intrinsically Safe

Capacitance Measurement Resolution

0.01 nF

Current Leakage Testing

Batteries Included

Yes

Bar Graph Included

Yes

Maximum DC Current Measurement

600 A

Display Type

Backlit LCD

Basic AC Current Accuracy

+/-2.50%

Dustproof

Resistance Measurement Resolution

0.1 ohm

Minimum Frequency Measurement

10 Hz

DC Voltage Measurement Resolution

0.1 mV

Jaw Style

Clamp-Jaw

AC Response Calculation

TRMS

Basic DC Voltage Accuracy

+/-1.00%

Maximum Operating Temperature

122 Degrees F

Minimum Capacitance Measurement

60 nF

Instrument Counts

6,000

Parameters Measured

AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Inrush AC Current, Resistance, Temperature (K)

Maximum Resistance Measurement

60 megaohm

AC Voltage Measurement Resolution

1 mV

Resistance Measurement Accuracy

+/-1.50%

Bluetooth Compatible

Calibration Certificate Included

Yes - NIST with Data

Maximum DC Voltage Measurement

1,000 V

Maximum AC Voltage Measurement

750 V

Minimum Resistance Measurement

6 ohm

Maximum Frequency Measurement

1 MHz

Inrush Current Measurable

Yes

Waterproof

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT II 1000V, CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 750 V, Maximum DC Current Measurement 600 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Inrush Current, Resistance, Temperature, Intrinsically Safe No, Dustproof No
