  9. DigitalClampMeter, TRMS, 1000A, 1000VAC

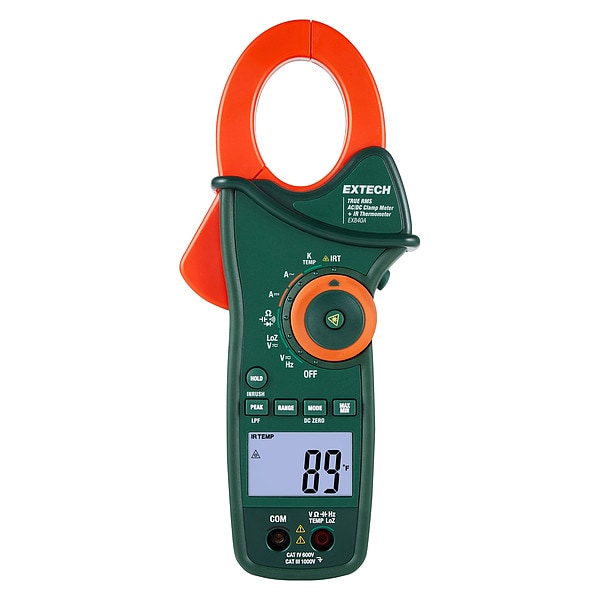

Extech DigitalClampMeter, TRMS, 1000A, 1000VAC EX840A - main

DigitalClampMeter, TRMS, 1000A, 1000VAC

  • Mfr # EX840A

  • Zoro # G211248694

product price: $288.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Safety Rating
CAT IV 600V
Jaw Opening
1.7 in
Thermometer Type
Infrared
Battery Access
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EX840A
Zoro #
G211248694
UPC #
793950398425
Country of Origin
China

Dimensions

Overall Width
4.3 in
Battery Size
9V
Maximum Conductor Size
750MCM
Manufacturers Warranty Length
3 yr
Overall Height
10.6 in

Details

Item
Clamp Meter
Digital/Analog
Digital
Safety Rating
CAT IV 600V
Jaw Opening
1.7 in
Thermometer Type
Infrared
Battery Access
Yes
Peak Hold
Yes
Frequency Measurement Accuracy
+/-1.5%
AC Response Calculation
TRMS
Diode Test
Yes
Resistance Measurement Accuracy
+/-1.5%
Maximum DC Voltage Measurement
1,000 V
Frequency Counter
0.001 kHz to 4 kHz
Maximum DC Current Measurement
1,000 A
Data Logging
Yes
Auto Power Off
Yes
Includes
Case, Test Leads, Type K Temperature Probe
Standards
CE, ETL
Minimum AC Voltage Measurement
0.1 mV
Maximum AC Current Measurement
1,000 A
Minimum Capacitance Measurement
0.001 nF
Display Type
Backlit LCD
Minimum DC Current Measurement
0.1 A
Basic AC Current Accuracy
+/-2.5%
Basic DC Current Accuracy
+/-2.5%
Maximum Frequency Measurement
4 kHz
Basic AC Voltage Accuracy
+/-1.5%
Maximum Storage Temperature
140 Degrees F
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Low Input Impedance, Low Pass Filter (LPF), Resistance, Temperature (IR), Temperature (K)
Auto Ranging
Yes
Batteries Included
Yes
Maximum Resistance Measurement
40 megaohm
Minimum Storage Temperature
-4 Degrees F
Minimum Frequency Measurement
0.001 kHz
Maximum AC Voltage Measurement
1,000 V
Calibration Certificate Included
No
Special Features
Non-Contact Temperature Measurements with Laser Pointer
Basic DC Voltage Accuracy
+/-2.8%
Minimum Operating Temperature
41 Degrees F
Minimum AC Current Measurement
0.1 A
Audible Continuity
Yes
Maximum Capacitance Measurement
40,000 F
Battery Voltage
9V
Inrush Current Measurable
Yes
Minimum Resistance Measurement
100 kiloohm
Minimum DC Voltage Measurement
0.1 mV
Memory
4,000 Readings
AC Current Measurement Resolution
0.1 A
Data Hold
Yes
Jaw Style
Clamp On
Current Leakage Testing
No
Dustproof
Yes
Removable Screen
No
Thermal Imaging
No
Waterproof
No
Capacitance Measurement Accuracy
+/-3.0%
IP Rating
IP40
Bluetooth Compatible
No
Intrinsically Safe
No

Description

Clamp Meter, Audible Continuity Yes, Safety Rating CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating IP40, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Low Input Impedance, Low Pass Filter (LPF), Resistance, Temperature (IR), Temperature (K)
