This item is Discontinued.

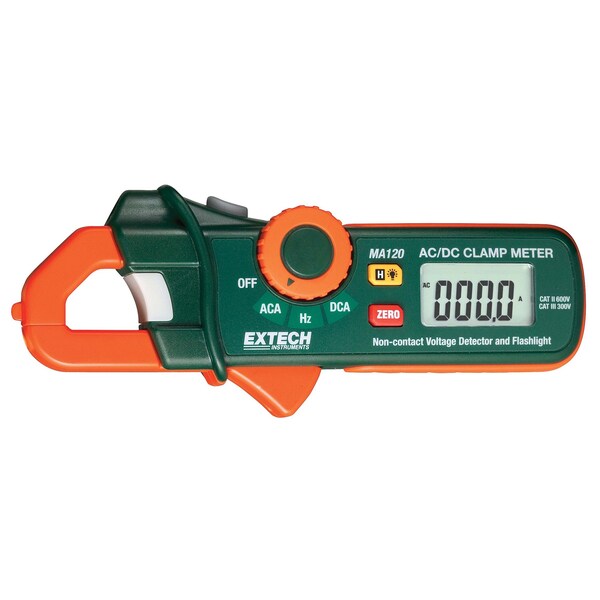

Extech Clamp Meter With Nist, Ma120 MA120-NIST

Clamp Meter With Nist, Ma120 (Discontinued)

  • Mfr # MA120-NIST
  • Zoro # G0632305
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MA120-NIST
Zoro #
G0632305
UPC #
-
Country of Origin
China

Dimensions

Manufacturers Warranty Length
2 yr
Overall Height
1.3 in
Overall Width
2.6 in
Battery Size
AAA
Maximum Conductor Size
300MCM

Details

Item
Clamp Meter With Nist, Ma120
Digital/Analog
Digital
Safety Rating
CAT II 600V, CAT III 300V
Jaw Opening
0.7 in
Calibration Frequency
50 to 60 Hz
Data Logging
Yes
Standards
CE
Includes
(2) AAA Batteries, Soft Case
Auto Power Off
Yes
Data Hold
Yes
Audible Continuity
No
Frequency Counter
1 kHz
Non-Contact Voltage Detector
Yes
Auto Ranging
Yes
Maximum Storage Temperature
140 Degrees F
Minimum Frequency Measurement
40 Hz
Frequency Measurement Resolution
0.01 Hz
Maximum DC Current Measurement
200 A
Frequency Measurement Accuracy
+/-1.20%
DC Current Measurement Resolution
0.1 A
Intrinsically Safe
No
Minimum Capacitance Measurement
40 nF
Display Type
LCD
Batteries Included
Yes
Maximum Frequency Measurement
1 kHz
Removable Screen
No
Maximum AC Current Measurement
400 A
Jaw Style
Clamp-Jaw
Battery Access
Yes
Basic AC Current Accuracy
+/-3.0%
AC Current Measurement Resolution
0.1 A
Thermal Imaging
No
Instrument Counts
2,000
Minimum Storage Temperature
-14 Degrees F
Bluetooth Compatible
No
Basic DC Current Accuracy
+/-2.80%
Maximum Operating Temperature
122 Degrees F
Waterproof
No
Current Leakage Testing
No
Parameters Measured
AC Current, Continuity, DC Current, Diode, Duty Cycle, Frequency, Resistance
Dustproof
No
Calibration Certificate Included
Yes - NIST with Data
AC Response Calculation
TRMS
Minimum Operating Temperature
32 Degrees F

Description

Clamp Meter With Nist, Ma120, Audible Continuity No, Safety Rating CAT II 600V, CAT III 300V, AC Response Calculation TRMS, Maximum AC Current Measurement 400 A, Maximum DC Current Measurement 200 A, Maximum DC Voltage Measurement Not Applicable, Current Leakage Testing No, Parameters Measured AC Current, Continuity, DC Current, Diode, Duty Cycle, Frequency, Resistance, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No
