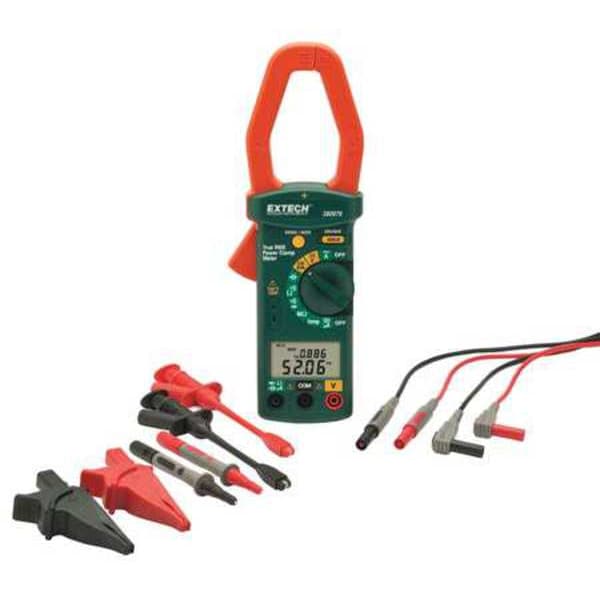

Clamp-On Power Meter, Dual LCD, 600 kW, 1,000 A, CAT IV Safety Rating, 9V Battery Power Source

  • Mfr # 380976-K

  • Zoro # G4308717

product price:
$
389.00
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Max. Watts
600 kW
Max. AC Amps
1,000
Max. DC Volts
600
Safety Rating
CAT IV
Power Source
9V Battery
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
380976-K
Zoro #
G4308717
UPC #
793950389775
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Overall Height
9 in
Overall Width
1.6 in
Battery Size
9V

Details

Item
Clamp On Power Meter
Max. Watts
600 kW
Max. AC Amps
1,000
Max. DC Volts
600
Safety Rating
CAT IV
Power Source
9V Battery
Display
Dual LCD
Jaw Opening
1.6 in
Max. AC Volts
600
Voltage Accuracy
1%
Current Accuracy
2%
Calibration Frequency
60 Hz
Max. Resistance
100 M Ohms
Counts
9,999
Max. VA
600 kVA
Special Features
Phase Angle with Lead/Lag Indicator
True RMS
Yes
Includes
(2) CAT IV 72 Test Leads, (2) Extra-Large Alligator Clips, (2) Modular Test Probe Handles, (2) Plunger Activated Jaw Clips, Carrying Case, Type K Probe
Crest Factor
1.42
Phase
1; 3
Standards
CE, cULus
Thermometer Type
K-Type
Minimum Operating Temperature
-58 Degrees F
Minimum Temperature Measurement
-58 Degrees F
Temperature Measurement Resolution
0.1 Degrees F
Maximum Power
600 kW
Wattage Measurement Accuracy
+/-5.00%
Resistance Measurement Resolution
0.1 ohm
Minimum Frequency Measurement
40 Hz
Maximum Storage Temperature
140 Degrees F
AC Current Measurement Resolution
10 mA
Basic AC Current Accuracy
+/-2.00%
Capacitance Measurement Resolution
1 nF
Minimum DC Voltage Measurement
0 mV
Minimum Resistance Measurement
0.1 ohm
Temperature Measurement Accuracy
+/-1.00%
Power Measurement Accuracy
+/-2.00%
AC Voltage Measurement Resolution
0.1 mV
Maximum Operating Temperature
1,000 Degrees F
Maximum Resistance Measurement
100 megaohm
Minimum Storage Temperature
14 Degrees F
Maximum AC Voltage Measurement
600 V
Minimum Wattage
10 W
Frequency Measurement Accuracy
+/-0.50%
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Voltage, Frequency, Resistance, Temperature
DC Current Measurement Resolution
10 nA
Basic AC Voltage Accuracy
+/-1.00%
Maximum Frequency Measurement
1 kHz
Display Type
LCD
Minimum AC Voltage Measurement
0.1 mV
Maximum DC Voltage Measurement
600 V
Maximum Wattage
600 kW
Basic DC Voltage Accuracy
+/-1.00%
Maximum Temperature Measurement
1,000 Degrees F
Batteries Included
Yes
Maximum Capacitance Measurement
7,000 uF
Resistance Measurement Accuracy
+/-5.00%
Minimum Power
10 kW
Frequency Measurement Resolution
0.1 Hz
Maximum AC Current Measurement
1,000 A
DC Voltage Measurement Resolution
0.1 mV
Battery Voltage
600 V
Capacitance Measurement Accuracy
+/-1.50%
Minimum Capacitance Measurement
1 nF
Minimum AC Current Measurement
10 mA
Instrument Counts
9,999
Data Logging
No
Current Units
A, uA
Voltage Units
mV, V
CAT Safety Rating
CAT IV
Minimum DC Current Measurement
0 uA
Calibration Certificate Included
No Certification Included
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
Power Source - TS Only
9V Battery
Power Source - old
9V Battery

Description

Clamp-On Power Meter, AC Current Measurement Resolution 10 mA, AC Voltage Measurement Resolution 0.1 mV, Basic AC Current Accuracy +/-2.00 Percent, Basic AC Voltage Accuracy +/-1.00 Percent, Basic DC Voltage Accuracy +/-1.00 Percent, Batteries Included Yes, Battery Size 9V, Battery Voltage 600V, Calibration Frequency 60 Hz, Capacitance Measurement Accuracy +/-1.50 Percent, Capacitance Measurement Resolution 1 nF, Counts 9,999, Crest Factor 1.42, DC Current Measurement Resolution 10 nA
