  5. Data Logging Anemometer, 100 to 6890 fpm

This item is Discontinued.

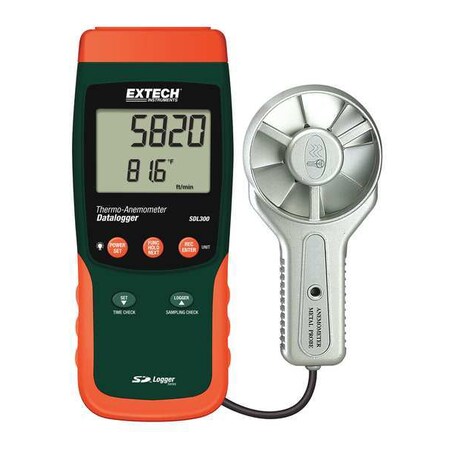

Extech Data Logging Anemometer, 100 to 6890 fpm SDL300-NIST

Data Logging Anemometer, 100 to 6890 fpm (Discontinued)

  • Mfr # SDL300-NIST
  • Zoro # G8046595
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SDL300-NIST
Zoro #
G8046595
UPC #
793950433027
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
3 yr
Probe Size
2.80 in dia
Cord Length
3.9 ft
Probe Diameter
2.8 in
Manufacturer Warranty Length
3 yr
Battery Size
AA

Details

Item
Anemometer
Air Velocity Accuracy
+/-2% of Reading
Includes
Carrying Case, Metal Vane, SD Card
Data Hold
Yes
Auto Power Off
Yes
Display
9,999 Count LCD
Data Logging
Yes
Sensing Method
Rotating Vane
Humidity Sensing
No
Power Source
Battery
Temp. Range
-148 Degrees to 2,192 Degrees F (Type J), -148 Degrees to 2,372 Degrees F (Type K), 32 Degrees to 158 Degrees F (Air)
Velocity (MPH)
0.9 to 78.3 mph
Special Features
Datalogger Saves Data to An SD Card In Excel Format, Type K/J External Thermocouple Input
Velocity (MPS)
0.4 to 35 mps
Velocity (FPM)
79 to 6890 fpm
Calibration Certificate
NIST
Storage Capacity
28,500 Records Using A 2G SD Card (Accepts A 1G to 16G SD Card)
Interface
SD Card
Velocity (Knots)
1 to 68 knots
Vane Material
Metal
Temp. Accuracy
+/-0.4% +1.8 Degrees F
Velocity (KPH)
1.8 to 126 kph
Display Type
Digital
Minimum Operating Temperature
32 Degrees F
Calibration Certificate Type
NIST
Body Style
Full Size
Battery Voltage
1.5V
Maximum Velocity Measured
6,900 fpm
Maximum Temperature Measured
158 Degrees F
Minimum Temperature Measured
32 Degrees F
Number of Batteries Required
6
Digital Display Screen Type
LCD
Air Velocity Resolution
1 fpm
Minimum Velocity Measured
60 fpm
Batteries Included
Yes
Vane Probe Attachment Style
Remote
Includes Work Light
Work Light Included
Wind Speed Units
ft/min, km/hr, knot, m/sec, mph
Temperature Accuracy
+/-1.5 Degrees F
Maximum Operating Temperature
158 Degrees F
Testing Functions
Air Velocity, Temperature

Description

Anemometer, Minimum Velocity Measured 60 fpm, Probe Diameter 2.8 in, Probe Type Rotating Vane, Maximum Velocity Measured 6,900 fpm, Minimum Dew Point Measured Not Applicable, Minimum Hot Wire Probe Length Not Applicable, Minimum Operating Temperature 32 Degrees F, Minimum Relative Humidity Measured Not Applicable, Includes Carrying Case, Metal Vane, SD Card, Relative Humidity Accuracy Not Applicable, Temperature Accuracy +/-1.5 Degrees F, Wind Speed Units ft/min, km/hr, knot, m/sec, mph
