  5. Digital Clamp Meter, Backlit, 2,000 A, 2.0 in (51 mm) Jaw Capacity, CAT IV 600V Safety Rating

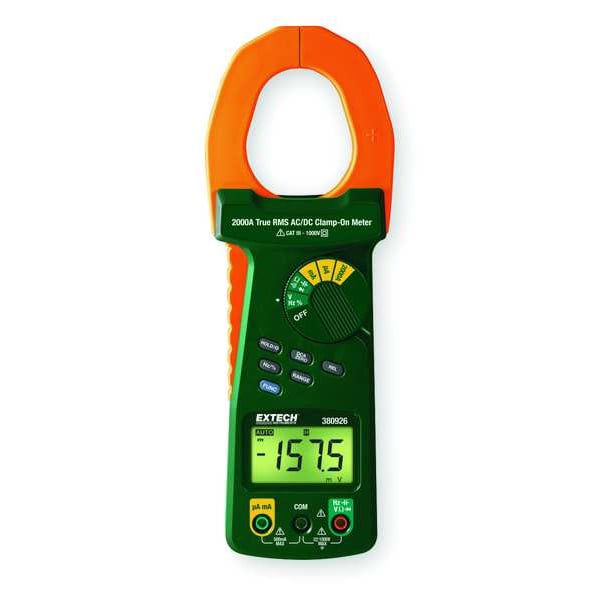

Extech Digital Clamp Meter, Backlit, 2,000 A, 2.0 in (51 mm) Jaw Capacity, CAT IV 600V Safety Rating 380926 - main

Digital Clamp Meter, Backlit, 2,000 A, 2.0 in (51 mm) Jaw Capacity, CAT IV 600V Safety Rating

  • Mfr # 380926

  • Zoro # G2140616

product price:  $349.00
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
2,000
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
40 megaohm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
380926
Zoro #
G2140616
UPC #
793950389263
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
2 yr
Max. Conductor Size
200 kcmil or (2) 500 kcmil
Overall Width
2.9 in
Battery Size
9V
Overall Height
1.5 in
Maximum Conductor Size
750MCM

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
2,000
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
40 megaohm
Jaw Capacity
2.0 in (51 mm)
Safety Rating
CAT IV 600V
Display
Backlit
Jaw Opening
2 in
Max. DC Amps
400
Max. AC Volts
1,000 V
Calibration Frequency
50 to 60 Hz
Battery Type
9V
Capacitance
50
Frequency Counter
100 KHz
Auto Power Off
Yes
Includes
Test Leads
Audible Continuity
Yes
AC Current Accuracy
+/-2.0% + 5 Digits
AC Response
TRMS
Special Features
AC/DC Current via clamp with 0.1A resolution, Large Backlit display, Large jaw size for high Current measurements, Push button Zero adjust improves DC accuracy
Auto Ranging
Yes
Diode Test
Yes
Counts
5,000
Operating Temp.
32 Degrees to 122 Degrees F
Data Hold
Yes
Standards
CE
Data Logging
Yes
Jaw Style
Clamp-Jaw
Bluetooth Compatible
No
Maximum AC Current Measurement
2,000 A
Thermal Imaging
No
Calibration Certificate Included
No
Capacitance Measurement Resolution
10 uF
Waterproof
No
Maximum DC Voltage Measurement
1,000 V
Display Type
Backlit LCD
Batteries Included
Yes
Minimum Resistance Measurement
400 ohm
AC Voltage Measurement Resolution
1 mV
Maximum Capacitance Measurement
50 uF
Current Leakage Testing
No
Minimum AC Voltage Measurement
4 V
DC Current Measurement Resolution
0.1 A
Minimum DC Current Measurement
400 A
Resistance Measurement Accuracy
+/-3.50%
Maximum Frequency Measurement
100 kHz
Instrument Counts
5,000
Basic DC Current Accuracy
+/-2.00%
Frequency Measurement Resolution
0.001 Hz
Resistance Measurement Resolution
0.1 ohm
Capacitance Measurement Accuracy
+/-3.00 %
Dustproof
No
Maximum Resistance Measurement
40 megaohm
Minimum AC Current Measurement
400 A
Battery Access
Yes
Maximum Operating Temperature
122 Degrees F
Intrinsically Safe
No
Minimum DC Voltage Measurement
400 mV
Basic AC Voltage Accuracy
+/-1.20%
Removable Screen
No
Maximum AC Voltage Measurement
1,000 V
Basic DC Voltage Accuracy
+/-1.00%
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance
Minimum Operating Temperature
32 Degrees F
Maximum DC Current Measurement
2,000 A
AC Current Measurement Resolution
0.1 uA, 0.1 A
Frequency Measurement Accuracy
+/-1.00%
Minimum Frequency Measurement
5 Hz
AC Response Calculation
TRMS
Basic AC Current Accuracy
+/-2.00%
DC Voltage Measurement Resolution
0.1 mV

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 2,000 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 2,000 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes
