Shop KLEIN TOOLS

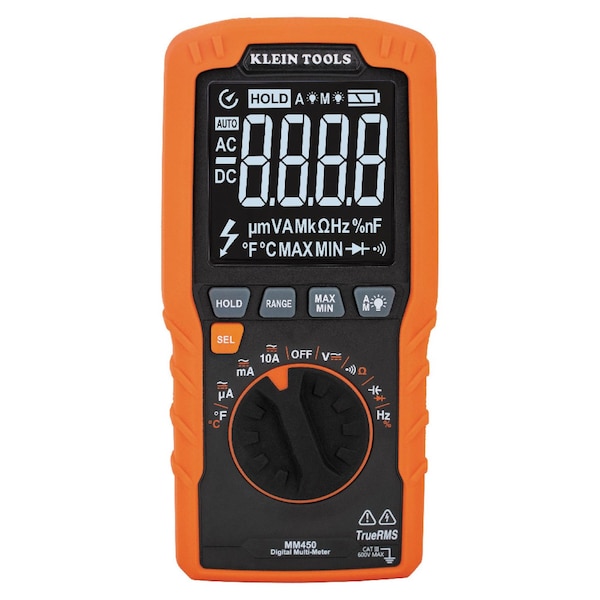

Slim Digital Multimeter, 600V, Temp, 600 V Max DC, TRMS, 4,000 Instrument Counts, LCD

  • Mfr # MM450

  • Zoro # G905958359

product price:  $86.59
/ea

Key Features

Display Type
LCD
Data Hold
Yes
Instrument Counts
4,000
Includes
Carrying Pouch, Test Leads, Thermocouple with Adapter, Batteries
Standards
CAT III 600V; CE and UKCA Certified
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
MM450
Zoro #
G905958359
UPC #
092644693755
Country of Origin
China

Dimensions

Depth
6.5 in
Overall Height
1.09 in
Overall Width
3.14 in
Battery Size
AAA

Details

Item
Slim Digital Multimeter, 600V, Temp
Display Type
LCD
Data Hold
Yes
Instrument Counts
4,000
Includes
Carrying Pouch, Test Leads, Thermocouple with Adapter, Batteries
Standards
CAT III 600V; CE and UKCA Certified
Auto Power Off
Yes
Audible Continuity
Yes
Diode Test
Yes
Source Current
10A AC/DC
Instrument Safety Rating
CAT III 600V
Function
Auto Power-Off; Data Hold; Auto-Range Mode; Min/Max Value of Measurement; Backlight; Lead Alert
Temp. Range
-40degree to 1832degreeF (-40degree to 1000degreeC)
Special Features
High-Visibility Display with Optical Sensor, Lead Alert, Min/Max Measurements, Slim Profile
Intrinsically Safe
No
Duty Cycle
Duty Cycle Test Included
Color
Orange/Black
Fitting Material
ABS, Electrical Components
Calibration Certificate
Not Included
Frequency Range (Hz)
1 Hz to 50 KHz
Auto Ranging
Yes
Features
Slim Profile; Lead-Alert; High-Visibility Display with Optical Sensor; Auto-Range; Min/Max Measurements; Auto Power-Off; Data-Hold
Max. Ohms
50 MΩ
Calibration Certificate Included
No Certification Included
Weight
9.1 oz
Removable Screen
No
Bluetooth Compatible
No
Waterproof
No
Basic AC Voltage Accuracy
+/-(1.0% + 3 digits)
Maximum AC Voltage Measurement
600 V
Current Leakage Testing
No
Basic DC Current Accuracy
+/-(1.0% + 5 digits)
Maximum DC Voltage Measurement
600 V
AC Response Calculation
TRMS
Dustproof
No
Basic AC Current Accuracy
+/-(1.5% + 5 digits)
Maximum AC Current Measurement
10 A
FEATURES HOLD_MERCH
LCD Yes Yes
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Resistance
Maximum Temperature Measurement
1,832 Degrees F
Maximum Resistance Measurement
50 megaohm
Fuse Access
Yes
Batteries Included
Yes
Capacitance Measurement Resolution
400 uF
Capacitance Measurement Accuracy
+/-(3.0% + 5 digits)
MERCH HOLD - DMM Features
No No No No No No No Not Rated
Maximum DC Current Measurement
10 A
IP Rating
Not Rated
Minimum Temperature Measurement
-40 Degrees F
Multimeter Features_Filter_BACKGROUND
MM450
Resistance Measurement Accuracy
+/-(1.2% + 5 digits)
Safety Rating_SUBHEAD
CAT III 600V
Battery Chemistry
Alkaline
Temperature Measurement Accuracy
+/-(1.2% + 6 Degrees F)
MERCH HOLD ACCURACY
+/-(0.5% + 5 digits) +/-(1.0% + 3 digits) +/-(1.0% + 5 digits) +/-(1.5% + 5 digits) +/-(3.0% + 5 digits) +/-(1.0% + 5 digits) +/-(1.2% + 6 Degrees F) +/-(1.2% + 5 digits)
Basic DC Voltage Accuracy
+/-(0.5% + 5 digits)
Maximum Frequency Measurement
50 kHz
Thermal Imaging
No
Battery Access
Yes
Multiple On-Screen Displays
Yes
Safety Rating_BACKGROUND
MM450 CAT III 600V
Frequency Measurement Accuracy
+/-(1.0% + 5 digits)
Minimum Resistance Measurement
0.1 ohm
Minimum AC Voltage Measurement
1 mV
CAT Safety Rating
CAT III 600V
Voltage Units
mV, V
Minimum DC Current Measurement
0.1 uA
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
Data Logging
No
Minimum AC Current Measurement
0.1 uA
Current Units
A, mA, uA
Includes Auto Sensing
No Auto Sensing Included
Minimum DC Voltage Measurement
0.1 mV

Description

Slim Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-(1.0 Percent + 3 digits), Basic DC Voltage Accuracy +/-(0.5 Percent + 5 digits), Data Hold Yes, Basic DC Current Accuracy +/-(1.0 Percent + 5 digits), Instrument Safety Rating CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 4,000, Special Features High-Visibility Display with Optical Sensor, Lead Alert, Min/Max Measurements, Slim Profile
