  5. Digital Clamp Meter, LCD, 400 A, 0.9 in (23 mm) Jaw Capacity, CAT III 300V Safety Rating

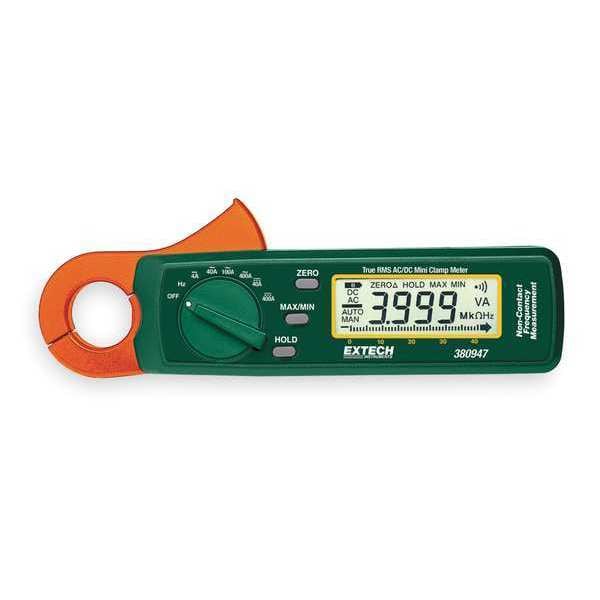

Extech Digital Clamp Meter, LCD, 400 A, 0.9 in (23 mm) Jaw Capacity, CAT III 300V Safety Rating 380947 - main
Shop EXTECH

Digital Clamp Meter, LCD, 400 A, 0.9 in (23 mm) Jaw Capacity, CAT III 300V Safety Rating

  • Mfr # 380947

  • Zoro # G0757617

product price:  $379.00
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
400
Clamp Meter Jaw Style
Clamp On
Jaw Capacity
0.9 in (23 mm)
Safety Rating
CAT III 300V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
380947
Zoro #
G0757617
UPC #
793950389478
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
2 yr
Maximum Conductor Size
4/0 AWG
Battery Size
AA
Overall Height
1.3 in
Overall Width
1.8 in

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
400
Clamp Meter Jaw Style
Clamp On
Jaw Capacity
0.9 in (23 mm)
Safety Rating
CAT III 300V
Display
LCD
Jaw Opening
0.9 in
Max. DC Amps
400
Calibration Frequency
50 to 60 Hz
Auto Ranging
Yes
Battery Type
AA
Includes
Battery
Operating Temp.
4 Degrees to 122 Degrees F
AC Response
TRMS
Memory
Max/Min
Special Features
Fast 40 Segment Bargraph, Min/Max, Data Hold and Auto Power Off, One Touch Auto Zero
Data Hold
Yes
AC Current Accuracy
+/-2.0% + 5 Digits
Bar Graph
Yes
Frequency Counter
10 kHz
Counts
4,000
Data Logging
Yes
Standards
CE, cULus
Auto Power Off
Yes
Audible Continuity
No
Non-Contact Voltage Detector
Yes
Intrinsically Safe
No
Maximum Operating Temperature
122 Degrees F
Minimum AC Current Measurement
4 A
Dustproof
No
Battery Access
Yes
Thermal Imaging
No
Basic AC Current Accuracy
+/-5.00%
Bar Graph Included
Yes
Calibration Certificate Included
No
DC Current Measurement Resolution
0.01 A
Minimum Operating Temperature
4 Degrees F
Maximum Frequency Measurement
10 kHz
Batteries Included
Yes
Removable Screen
No
Maximum AC Current Measurement
3,000 A
AC Response Calculation
Average
Minimum Capacitance Measurement
50 nF
AC Current Measurement Resolution
0.001 A
Jaw Style
Clamp-Jaw
Display Type
LCD
Waterproof
No
Instrument Counts
4,000
Frequency Measurement Resolution
0.01 Hz
Minimum Frequency Measurement
40 Hz
Maximum DC Current Measurement
400 A
Frequency Measurement Accuracy
+/-0.50%
Minimum DC Current Measurement
40 A
Current Leakage Testing
No
Bluetooth Compatible
No
Basic DC Current Accuracy
+/-4.00%
Parameters Measured
AC Current, DC Current, Frequency

Description

Digital Clamp Meter, Audible Continuity No, Safety Rating CAT III 300V, AC Response Calculation Average, Maximum AC Current Measurement 3,000 A, Maximum DC Current Measurement 400 A, Current Leakage Testing No, Parameters Measured AC Current, DC Current, Frequency, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No, Bluetooth Compatible No, Jaw Opening 0.9 in, Jaw Style Clamp On, Calibration Certificate Included No
