Shop FLUKE

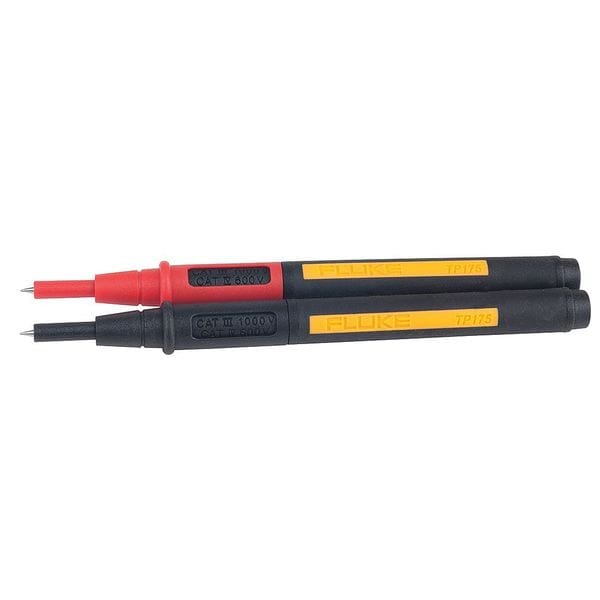

Test Probe, CAT II 1000V, CAT III 1000V, CAT IV 600V, 5", Silicone, Red, Black

  • Mfr # TP175

  • Zoro # G3634154

product price:
$
56.89
/pr
Zoro's best price: not eligible for any other offers or promotions

Key Features

Instrument Safety Rating
CAT II 1000V, CAT III 1000V, CAT IV 600V
Plug and Connector Description
Most Fluke Test Lead Sets That Accept Interchangeable Probes (Mfr. No. Tl27, Tl220, Tl221, Tl222, Tl224, Tl225, Tl238, Tlk220, TLK225, TLK287, TLK289) and Select Fluke Mainframe Units
Length
5"
Color
Red, Black
Max Amps
10:00 AM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TP175
Zoro #
G3634154
UPC #
095969621113
Country of Origin
China

Dimensions

Length
5"
Manufacturers Warranty Length
1 yr

Details

Item
Test Probe
Instrument Safety Rating
CAT II 1000V, CAT III 1000V, CAT IV 600V
Plug and Connector Description
Most Fluke Test Lead Sets That Accept Interchangeable Probes (Mfr. No. Tl27, Tl220, Tl221, Tl222, Tl224, Tl225, Tl238, Tlk220, TLK225, TLK287, TLK289) and Select Fluke Mainframe Units
Color
Red, Black
Max Amps
10:00 AM
Features
Fits Standard Modular Test Leads, Converts Probe Tip Length Between 4mm, CAT III 1000V, CAT IV 600V Measurement and 19mm, CAT II 1000V Measurement
For Use With
Test Clip and Probe Multimeter
Wire Insulation
Silicone
Hands Free Voltage
1,000V AC/V DC
Max. Voltage - Clip or Probe
1000V AC/V DC
For Use With - Test Clip and Probe
Multimeter Test Leads with 4mm Sheathed Banana Plugs
Tip Material - Test Probe
Stainless Steel
Insulating Material - Clip or Probe
Dual Extruded Silicone
Standards
EN61010-031
Item - Test Clip and Probe
Test Probe
Max. Amps - Clip or Probe
10:00 AM
Wire Gauge
18
Safety Rating
CAT II 1000V, CAT III 1000V, CAT IV 600V
Max. Amps
10 A
Temp. Range
-4 Degrees to 131 Degrees F
Color - Clip or Probe
Black/Red
Max. Voltage
1000VAC
Hand Held Voltage
1,000V AC/V DC
Tip Material
Stainless Steel
Number of Probes
2
Number of Alligator Clips
0
Maximum Operating Temperature
131 Degrees F
Test End Termination
Standard Probe
Maximum Current
10 A
Maximum Voltage
1,000 V
Insulation Material
Silicone
Number of Modular Test Clips
0
CAT Safety Rating
CAT II 1000V, CAT III 1000V, CAT IV 600V
Compatible Manufacturer Model Number
Fluke 345
Compatible with Manufacturer Model Number
Fluke 345
For Manufacturer Part Number
Fluke 345
Compatible with Mfr. Model Number
Fluke 345
Compatible Manufacturer Part Number
Fluke 345

Description

Test Probe, For Use With Fluke 345, Maximum Current 10 A, Maximum Voltage 600/1,000V, Color Black/Red, Hand Held Voltage 1,000V AC/V DC, Hands Free Voltage 1,000V AC/V DC, Instrument Safety Rating CAT II 1000V, CAT III 1000V, CAT IV 600V, Features Patented Twistguard Extendable Tip Shroud Meets the Highest Electrical Safety Requirements to Reduce Tip Exposure While Providing the Versatility Needed for Most Measurements, Probes Always Show Correct Category Rating for Tip Being Used, Length 5 in
