  5. Digital Clamp Meter, LCD, 80 A, 0.5 in (13 mm) Jaw Capacity, CAT III 600V Safety Rating

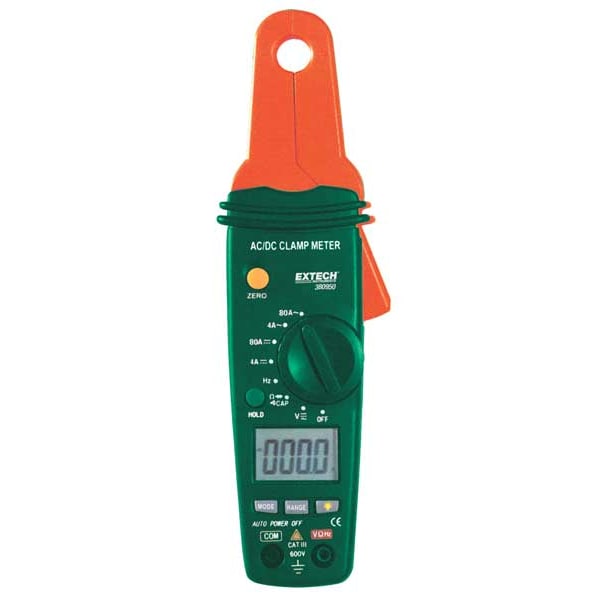

Extech Digital Clamp Meter, LCD, 80 A, 0.5 in (13 mm) Jaw Capacity, CAT III 600V Safety Rating 380950 - main
Shop EXTECH

Digital Clamp Meter, LCD, 80 A, 0.5 in (13 mm) Jaw Capacity, CAT III 600V Safety Rating

  • Mfr # 380950

  • Zoro # G5041915

product price:  $179.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
80
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40 megaohm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
380950
Zoro #
G5041915
UPC #
793950389508
Country of Origin
China

Dimensions

Manufacturers Warranty Length
2 yr
Maximum Conductor Size
3/0 AWG
Overall Height
1.4 in
Battery Size
AAA
Overall Width
2.7 in

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
80
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40 megaohm
Jaw Capacity
0.5 in (13 mm)
Safety Rating
CAT III 600V
Display
LCD
Jaw Opening
0.5 in
Max. DC Amps
80
Max. AC Volts
600 V
Auto Ranging
Yes
Peak Hold
Yes
AC Response
Average
Includes
(2) 1.5V AAA Batteries, Carrying Case, Test Leads
Battery Type
AAA
Diode Test
Yes
Counts
4,000
Frequency Counter
10 MHz
Data Hold
Yes
Standards
CE
Data Logging
Yes
Special Features
Extra-small diameter jaw designed to reach into very small areas
Audible Continuity
Yes
Memory
Max
Minimum AC Voltage Measurement
400 V
Basic DC Current Accuracy
+/-3.00%
Maximum AC Voltage Measurement
600 V
Minimum Frequency Measurement
5 Hz
Batteries Included
Yes
Thermal Imaging
No
Minimum Operating Temperature
14 Degrees F
DC Current Measurement Resolution
4 A
Maximum DC Current Measurement
80 A
Bluetooth Compatible
No
Minimum DC Current Measurement
4 A
Resistance Measurement Accuracy
+/-2.50%
Maximum Operating Temperature
122 Degrees F
AC Voltage Measurement Resolution
0.1 mV
Capacitance Measurement Accuracy
+/-5.00%
Maximum DC Voltage Measurement
600 V
Display Type
LCD
AC Current Measurement Resolution
4 A
DC Voltage Measurement Resolution
0.1 mV
Minimum Capacitance Measurement
40 nF
Current Leakage Testing
No
Minimum Resistance Measurement
400 ohm
Frequency Measurement Accuracy
+/-1.20%
Maximum AC Current Measurement
100 A
Basic AC Voltage Accuracy
+/-2.00%
Waterproof
No
Basic DC Voltage Accuracy
+/-3.00%
Maximum Frequency Measurement
10 MHz
Intrinsically Safe
No
Battery Access
Yes
AC Response Calculation
TRMS
Resistance Measurement Resolution
0.1 ohm
Removable Screen
No
Jaw Style
Clamp-Jaw
Maximum Storage Temperature
140 Degrees F
Instrument Counts
4,000
Minimum DC Voltage Measurement
400 mV
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Resistance
Basic AC Current Accuracy
+/-3.0%
Calibration Certificate Included
No
Dustproof
No
Minimum AC Current Measurement
4 A
Maximum Resistance Measurement
40 megaohm
Minimum Storage Temperature
-22 Degrees F
Frequency Measurement Resolution
0.001 Hz

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 100 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 80 A, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Resistance, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No
