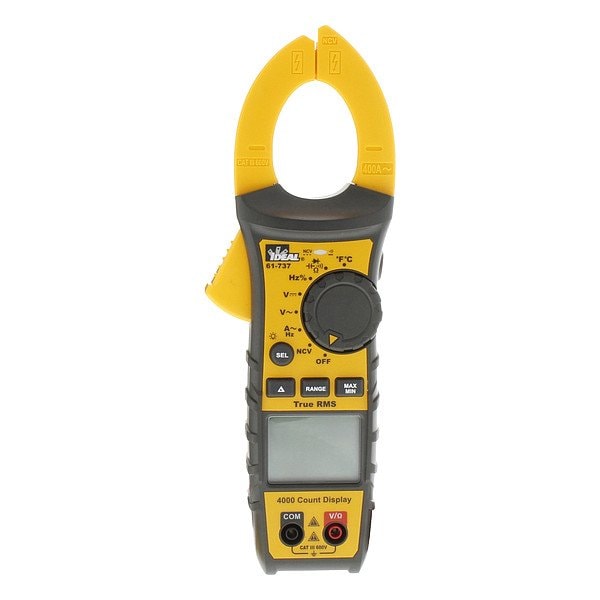

DigitalClampMeter, TRMS, 400A, 600VAC

Mfr # 61-737
Zoro # G622768583

70.38

Sold in multiples of 4 for $281.52

Key Features

Minimum Operating Temperature

104 Degrees F

Peak Hold

Basic DC Voltage Accuracy

+/-1%

Software Included

Minimum Frequency Measurement

99.99 Hz

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 61-737
Zoro #: G622768583
UPC #: 783250810253
Country of Origin: China

Dimensions

Battery Size: AAA
Overall Width: 2.8 in
Manufacturers Warranty Length: 2 yr Limited
Overall Height: 1.8 in

Details

Minimum Operating Temperature: 104 Degrees F
Peak Hold: No
Basic DC Voltage Accuracy: +/-1%
Software Included: No
Minimum Frequency Measurement: 99.99 Hz
Minimum Storage Temperature: 14 Degrees F
Maximum Storage Temperature: 140 Degrees F
AC Voltage Measurement Resolution: 0.001 V
Minimum AC Voltage Measurement: 0 V
Auto Power Off: Yes
Bar Graph Included: No
Instrument Counts: 4,000
Inrush Current Measurable: No
Maximum Frequency Measurement: 999.9 Hz
Capacitance Measurement Accuracy: +/-4%
Diode Test: Yes
Minimum Resistance Measurement: 0 ohm
Memory: Min/Max
Multiple On-Screen Displays: No
Frequency Measurement Resolution: 0.01 Hz
Temperature Types Measured: Temperature Degrees C, Temperature Degrees F
Includes Auto Sensing: No Auto Sensing Included
Minimum AC Current Measurement: 0 A
Frequency Measurement Accuracy: +/-0.1%
Capacitance Measurement Resolution: 0.1 nF
Batteries Included: Yes
Current Units: A
Jaw Detachability: Fixed
Battery Access: Yes
Data Hold: Yes
Display Type: LCD
Removable Screen: No
Resistance Measurement Resolution: 0.1 ohm
Calibration Certificate Included: Traceable without Data
Maximum AC Current Measurement: 400 A
Maximum Capacitance Measurement: 4 mF
Standards: cULus
Jaw Opening: 1.4 in
Thermal Imaging: No
DC Voltage Measurement Resolution: 0.1 mV
Item: Digital Clamp Meter
Minimum Capacitance Measurement: 400 nF
Maximum DC Voltage Measurement: 600 V
Audible Continuity: Yes
Basic AC Current Accuracy: +/-2%
Parameters Measured: AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Frequency, Resistance, Temperature
Auto Ranging: Yes
Intrinsically Safe: No
Jaw Style: Clamp
Non-Contact Voltage Detector: Yes
Current Leakage Testing: No
Time of Day Clock: No
IP Rating: IP40
Maximum AC Voltage Measurement: 600 V
AC Response Calculation: TRMS
Data Logging: No
AC Current Measurement Resolution: 0.01 A
Minimum DC Voltage Measurement: 0 V
Basic AC Voltage Accuracy: +/-1%
Includes: Batteries, Type K Thermocouple Probe, Soft Carrying Case, Test Leads
Special Features: Compatible with Magnetic Strap Mount
Resistance Measurement Accuracy: +/-1.5%
Maximum Resistance Measurement: 40 megaohm
Thermometer Type: Type K Thermocouple
CAT Safety Rating: CAT III 600V
Voltage Units: mV, V
Battery Voltage: 1.5 V

Description

Digital Clamp Meter, Audible Continuity Yes, AC Response Calculation TRMS, Maximum AC Current Measurement 400 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement Not Applicable, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, IP Rating IP40, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Frequency, Resistance, Temperature, Intrinsically Safe No, Data Logging No, Thermal Imaging No, Removable Screen No
