  9. Digital Manometer, 0 to 13.85 In WC

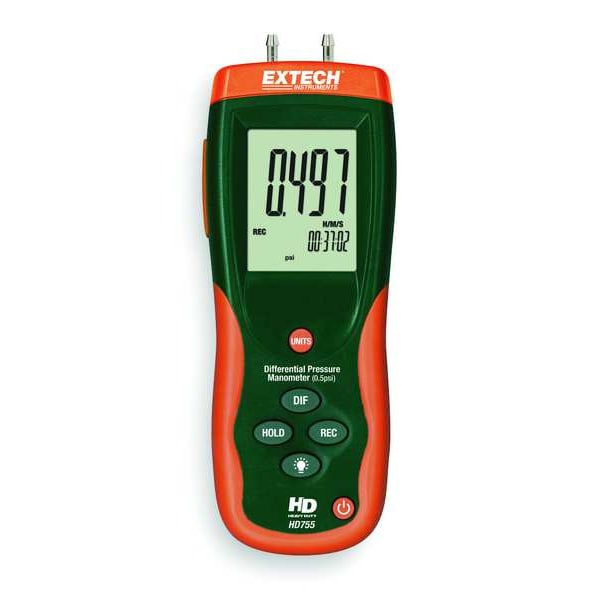

Extech Digital Manometer, 0 to 13.85 In WC HD755 - main

Digital Manometer, 0 to 13.85 In WC

  • Mfr # HD755

  • Zoro # G2720715

product price: $288.99
/ea
Free Shipping & Returns

Key Features

Includes
AC Adaptor, Built-in Stand, Connection Hose, Hard Carrying Case, USB Cable
Standards
NIST
Accuracy
+/-0.3% of Full Scale
Pressure Accuracy
+/-0.3% of Full Scale
Battery Type
9V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HD755
Zoro #
G2720715
UPC #
793950107553
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Process Connection Size
1/8 in
For Tubing Diameter
1/8 in
Battery Size
9V

Details

Item
Digital Manometer
Includes
AC Adaptor, Built-in Stand, Connection Hose, Hard Carrying Case, USB Cable
Standards
NIST
Accuracy
+/-0.3% of Full Scale
Pressure Accuracy
+/-0.3% of Full Scale
Battery Type
9V
Pressure Resolution
0.001 psi
Operating Range
0 to 3.44 kPa
For Use With
Air, Non-Corrosive Gases, Non-Ionized Gases
Operating Temp. Range
32 Degrees to 122 Degrees F
Data Storage
PC Via USB Interface
Connection Type
Fits 1/8 in ID Tubing
Resolution
0.01 in wc
Max. Pressure
0.5 psi (0.0344 bar)
Pressure Range
0 psi to 0.5 psi
Interface
USB
Display
4 Digit Backlit LCD
Calibration Certificate Included
No
Maximum Operating Temperature
122 Degrees F
Wireless Connectivity
USB
NIST Traceable Certificate
No
Number of Pressures Measured
Dual
Number of Connections
2
Manometer Type
General Purpose Digital Manometer
Weight
9.8 oz
Auto Power Off
Yes
Data Hold
Yes
Min/Max Capture
Yes
Application
Air; Non-Corrosive Gases; Non-Ionized Gas
Minimum Operating Temperature
32 Degrees F
Batteries Included
Yes
Maximum Pressure
0.5 psi
Process Connection Type
Hose Barb
Digital Display Features
4 Digit Backlit LCD
Maximum Operating Pressure
0.5 psi
Data Interface
USB
Batteries Required
Yes
Minimum Pressure
0 psi
Series
HD755
Operating Pressure Range
0 to 3.44 kPa
Type of Pressure
Differential, Gauge
Includes Min/Max Capture
Min/Max Capture
Operating Pressure - Maximum
0.5 psi
Operating Temperature - Minimum
32 Degrees F
Number of Process Connections
2
Digital Display Type
Backlit LCD
Number of Digits
4
Operating Temperature - Maximum
122 Degrees F
Pressure Measurement - Maximum
0.5 psi
Display Units
bar, in H2O, in Hg, kg/sq cm, kPa, mbar, mm H2O, mm Hg, psi
Includes Data Logging
Data Logging Included
Includes Data Hold
Data Hold
Pressure Type Measured
Differential, Gauge
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included
Pressure Measurement - Minimum
0 psi
Pressure Stages Measured
Dual
Includes Batteries
Batteries Included

Description

Digital Manometer, Maximum Pressure 0.5 psi, Minimum Pressure 0 psi, Accuracy +/-0.3 Percent of Full Scale, Process Connection Size 1/8 in, Process Connection Type Hose Barb, Batteries Included Yes, Digital Display Features 4 Digit Backlit LCD, NIST Traceable Certificate No, Series HD755, Wireless Connectivity USB, Application Air; Non-Corrosive Gases; Non-Ionized Gas, Auto Power Off Yes, Batteries Required Yes, Battery Type 9V, Calibration Certificate Included No, Data Hold Yes
