Shop All Manometers
Extech

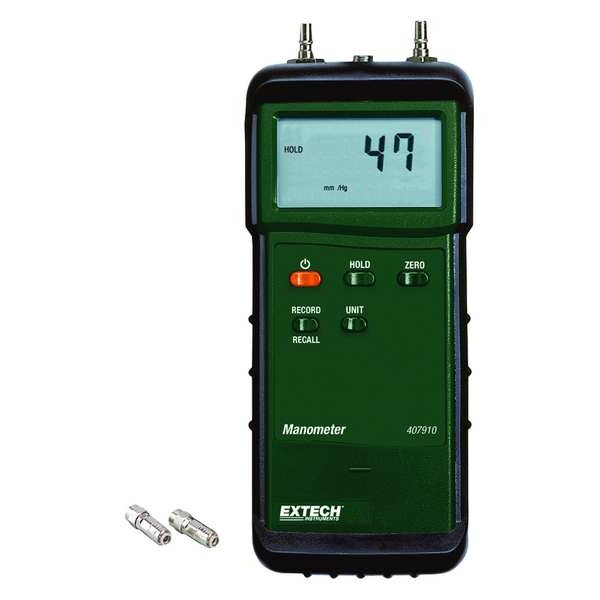

Manometer, Digital, LCD

product price: $293.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Pressure Range -29 psi to 29 psi
  • For Use With Air, Non-Corrosive Gases and Liquids, Non-Ionized Gases and Liquids
  • Pressure Resolution 0.02 psi
  • Accuracy +/-1%
See all product information

Product Information

  • Brand Extech
  • MFR # 407910
  • Zoro # G3310474
  • UPC #
    793950409107
  • Country of Origin Taiwan, Province of China
  • Category Manometers

Dimensions

Manufacturers Warranty Length 3 yr
Housing Height 7 in
Process Connection Size 5/32 in
Housing Length 2.9 in

Details

Promotion Restriction Not eligible for promotion
Item Digital Manometer
Pressure Range -29 psi to 29 psi
For Use With Air, Non-Corrosive Gases and Liquids, Non-Ionized Gases and Liquids
Pressure Resolution 0.02 psi
Accuracy +/-1%
Pressure Accuracy +/-1% of Full Scale
Operating Temp. Range 32 Degrees to 122 Degrees F
Max. Pressure 29 psi (2 Bar)
Resolution 0.5 in wc
Operating Range 0 to 802 in wc
Includes (2) Quick-Disconnect Fittings, Case, Protective Holster with Stand
Display 1.4 in High LCD
Battery Type 9V
Calibration Certificate Included No
Number of Pressures Measured Dual
Type of Pressure Differential, Gauge
Weight 0.7 lb
Minimum Operating Temperature 32 Degrees F
Maximum Pressure 29 psi
Min/Max Capture Yes
Number of Connections 2
Batteries Required Yes
Data Hold Yes
Auto Power Off Yes
Batteries Included Yes
Minimum Pressure -29 psi
Application Air; Non-Corrosive Gases; Non-Ionized Gas
Digital Display Features Dual LCD
Data Interface RS-232
Maximum Operating Temperature 122 Degrees F
Series 407910
Operating Pressure Range -29 to 29 psi
Low Battery Indicator Yes
Standards CE
Process Connection Type Quick Disconnect
Display Units atm, in H2O, in Hg, kg/cm2, mbar, mm H2O, mm Hg, psi
Manometer Type General Purpose Digital Manometer
NIST Traceable Certificate No
Maximum Operating Pressure 29 psi

Description

Digital Manometer, Maximum Pressure 29 psi, Minimum Pressure -29 psi, Accuracy +/-1 Percent of Full Scale, Process Connection Size 5/32 in, Process Connection Type Quick Disconnect, Batteries Included Yes, Digital Display Features Dual LCD, NIST Traceable Certificate No, Series 407910, Application Air; Non-Corrosive Gases; Non-Ionized Gas, Auto Power Off Yes, Batteries Required Yes, Battery Type 9V, Calibration Certificate Included No, Data Hold Yes, Data Interface RS-232
