Shop EXTECH

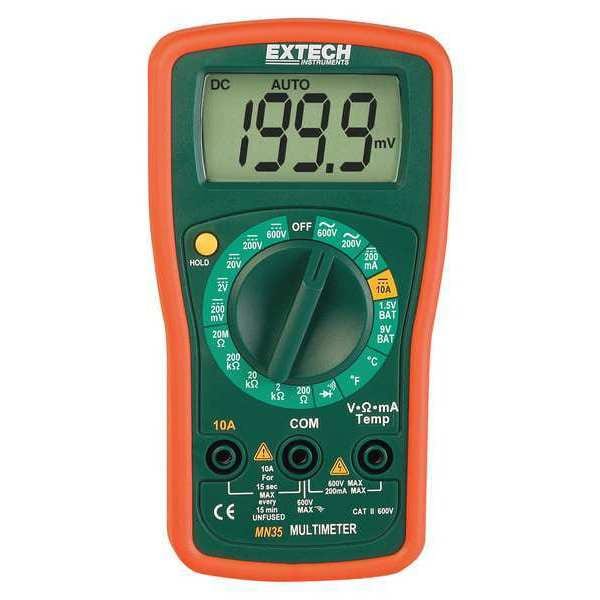

Digital Multimeter, 600 V Max DC, 0.1 V Max AC, Average, 1,999 Instrument Counts, LCD

  • Mfr # MN35

  • Zoro # G4019915

product price:  $25.99
/ea

Key Features

Display Type
LCD
Data Hold
Yes
Instrument Counts
1,999
Includes
Battery, Type K Bead Wire Temperature Probe, Protective Rubber Holster, Test Leads
Standards
CE, EN61010-1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MN35
Zoro #
G4019915
UPC #
793950380352
Country of Origin
China

Dimensions

Manufacturers Warranty Length
2 yr
Overall Height
5.43 in
Battery Size
9V
Overall Width
2.8 in
Depth
1.5 in

Details

Item
Digital Multimeter
Display Type
LCD
Data Hold
Yes
Instrument Counts
1,999
Includes
Battery, Type K Bead Wire Temperature Probe, Protective Rubber Holster, Test Leads
Standards
CE, EN61010-1
Auto Power Off
No
Data Logging
No
Audible Continuity
Yes
Diode Test
Yes
Series
EXTECH (R) MN35
Auto Ranging
No
Max. AC Amps
10:00 AM
Peak Hold
No
Instrument Safety Rating
CAT II 600V
Temp. Range
-4 Degrees to 1400 Degrees F
Max. Ohms
20 megohm
Basic DC Accuracy
+/-0.50% of Reading +2 Digits
Max. DC Amps
10 A
Multimeter Style
Compact - Basic Features
Interface
None
Calibration Certificate Included
No Certification Included
AC Response
Average
Display
LCD
Intrinsically Safe
No
Minimum Operating Temperature
32 Degrees F
Bluetooth Compatible
No
Computer Interface Connection Type
None
Battery Access
Yes
Current Leakage Testing
No
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
Maximum AC Current Measurement
10 A
Resistance Measurement Accuracy
+/-0.8%
Thermal Imaging
No
Bar Graph Included
No
Maximum Storage Temperature
140 Degrees F
Minimum DC Voltage Measurement
0 mV
Basic AC Current Accuracy
+/-1.50%
Fuse Access
Yes
Minimum Resistance Measurement
0.1 ohm
AC Response Calculation
Average
Maximum DC Current Measurement
10 A
AC Voltage Measurement Resolution
0.1 V
Battery Voltage
9 V
DC Voltage Measurement Resolution
0.1 V
Minimum AC Voltage Measurement
0 V
Removable Screen
No
Minimum Storage Temperature
-4 Degrees F
Maximum Resistance Measurement
20 megaohm
Batteries Included
Yes
Maximum Operating Temperature
104 Degrees F
Maximum AC Voltage Measurement
600 V
Temperature Measurement Resolution
1 Degrees F
Basic DC Voltage Accuracy
+/-0.50%
Minimum DC Current Measurement
0 mA
NIST Certification By Manufacturer
Not Certified
Dustproof
No
Minimum Temperature Measurement
-4 Degrees F
Temperature Measurement Accuracy
+/-1%
DC Current Measurement Resolution
0.1 mA
Resistance Measurement Resolution
0.1 microohm
Weight
5.4 oz
Waterproof
No
Basic DC Current Accuracy
+/-1.5%
Maximum Temperature Measurement
1,400 Degrees F
Basic AC Voltage Accuracy
+/-1.2%
Battery Chemistry
Alkaline
Maximum DC Voltage Measurement
600 V
Voltage Units
mV, V
Current Units
A, mA
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
CAT Safety Rating
CAT II 600V
IP Rating
Not Rated
Includes Auto Sensing
No Auto Sensing Included
Special Features
1.5V and 9V Battery Test Function, AC/DC Voltage, DC Current, Resistance, Type K Temperature, Continuity/Diode, Convenient Mini Size with Protective Rubber Holster and Tilt Stand, Data Hold Locks Reading in the Display, Includes Protective Rubber Holster, 9V Battery, Bead Wire Type K Temp. Probe and Test Leads, Large Easy to Read Digital Display

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-1.2 Percent, Basic DC Voltage Accuracy +/-0.50 Percent, Data Hold Yes, Basic DC Current Accuracy +/-1.5 Percent, Instrument Safety Rating CAT II 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 1,999
