Shop EXTECH

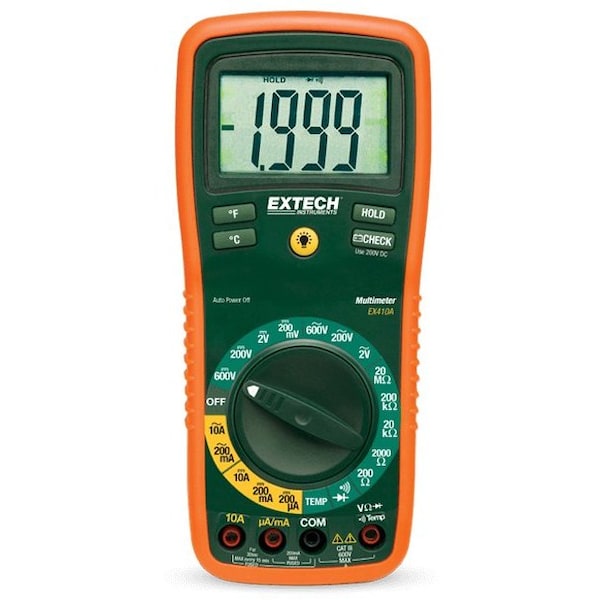

Digital Multimeter, 600 V Max DC, 1 mV Max AC, TRMS, 6000 Instrument Counts, Backlit LCD

  • Mfr # EX410A

  • Zoro # G511935171

product price:
$
78.99
/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
Battery, Test Leads, Hanging Strap, Holster with Test Lead Storage, Stand, Type K Bead Wire Temperature Probe
Standards
CE
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EX410A
Zoro #
G511935171
UPC #
793950384138
Country of Origin
China

Dimensions

Battery Size
9V
Manufacturers Warranty Length
2 yr
Overall Width
3.2 in
Depth
2 in
Overall Height
7.4 in

Details

Item
Digital Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
Battery, Test Leads, Hanging Strap, Holster with Test Lead Storage, Stand, Type K Bead Wire Temperature Probe
Standards
CE
Audible Continuity
Yes
Diode Test
Yes
Battery Voltage
9 V DC
Instrument Safety Rating
CAT III 600V
Maximum AC Current Measurement
10 A
Maximum AC Voltage Measurement
600 V
Auto Ranging
No
Intrinsically Safe
No
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
Minimum Resistance Measurement
0.1 ohm
Minimum DC Current Measurement
0 uA
Maximum Temperature Measurement
1,382 Degrees F
Minimum Temperature Measurement
-4 Degrees F
Minimum DC Voltage Measurement
0 mV
AC Response Calculation
TRMS
Duty Cycle
No Duty Cycle Test Included
Batteries Included
Yes
Maximum Resistance Measurement
20 megaohm
Basic DC Voltage Accuracy
+/-0.50%
Maximum DC Voltage Measurement
600 V
Minimum AC Current Measurement
0 mA
Maximum DC Current Measurement
10 A
Calibration Certificate Included
No Certification Included
Weight
0.75 lb
Minimum AC Voltage Measurement
0 mV
Waterproof
No
Thermal Imaging
No
Basic DC Current Accuracy
+/-0.50%
Removable Screen
No
Basic AC Voltage Accuracy
+/-0.50%
Dustproof
No
Bluetooth Compatible
No
Basic AC Current Accuracy
+/-0.5%
Current Leakage Testing
No
Current Units
A, mA, uA
IP Rating
Not Rated
Includes Auto Sensing
No Auto Sensing Included
Voltage Units
mV, V
Data Logging
No
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
CAT Safety Rating
CAT III 600V
Special Features
True RMS or Averaging measurements, Advanced functions of Capacitance, Frequency, and Duty Cycle. Top of the line model with built-in InfraRed Thermometer. Ergonomically designed housing

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-0.50 Percent, Basic DC Voltage Accuracy +/-0.50 Percent, Data Hold Yes, Basic DC Current Accuracy +/-0.50 Percent, Instrument Safety Rating CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 6000
