  9. Digital Multimeter, 600 V Max DC, 0.1 V Max AC, TRMS, 4,000 Instrument Counts, Backlit LCD

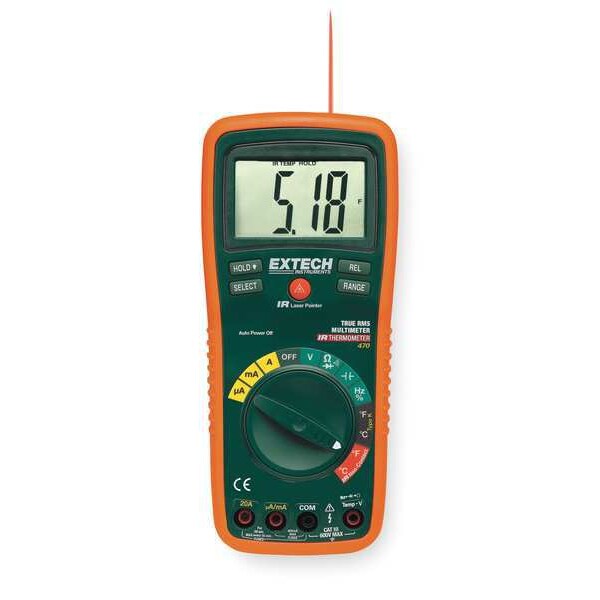

Extech Digital Multimeter, 600 V Max DC, 0.1 V Max AC, TRMS, 4,000 Instrument Counts, Backlit LCD EX470A - main

Digital Multimeter, 600 V Max DC, 0.1 V Max AC, TRMS, 4,000 Instrument Counts, Backlit LCD

  • Mfr # EX470A

  • Zoro # G1162113

product price: $189.99
/ea
Free Shipping & Returns

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
4,000
Includes
CAT III Test Leads, Protective Holster, Tilt Stand, Type K Bead Wire Temp Probe and 9V Battery, Velcro Hanging Strap
Standards
CE
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EX470A
Zoro #
G1162113
UPC #
793950384701
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Depth
2 in
Pulse Width
Yes
Overall Height
7.4 in
Overall Width
3.2 in
Battery Size
9V

Details

Item
Digital Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
4,000
Includes
CAT III Test Leads, Protective Holster, Tilt Stand, Type K Bead Wire Temp Probe and 9V Battery, Velcro Hanging Strap
Standards
CE
Auto Power Off
Yes
Data Logging
No
Audible Continuity
Yes
Diode Test
Yes
Multimeter Style
Full Size - Basic Features
Peak Hold
No
Calibration Certificate Included
No
Temp. Range
-4 Degrees to 1382 Degrees F
Instrument Frequency Counter Range
0.001 Hz to 10 MHz
Duty Cycle
Yes
Max. DC Amps
10
Instrument Safety Rating
CAT III 600V
Max. AC Amps
10
Series
EXTECH (R) EX470
Auto Ranging
Yes
AC Response
TRMS
Display
Backlit LCD
Max. Ohms
40 megohm
Interface
None
Capacitance Range
10 pF to 100 uF
Basic DC Accuracy
+/-0.30% of Reading +2 Digits
Intrinsically Safe
No
Maximum Temperature Measurement
1,382 Degrees F
Computer Interface Connection Type
None
Minimum Resistance Measurement
0.1 ohm
Minimum Storage Temperature
-4 Degrees F
Battery Chemistry
Alkaline
Basic DC Current Accuracy
+/-2.5%
Basic AC Current Accuracy
+/-3.5%
Bar Graph Included
No
Resistance Measurement Resolution
0.1 ohm
Minimum AC Current Measurement
0.1 uA
AC Current Measurement Resolution
0.1 uA
Fuse Access
Yes
Weight
0.75 lb
Maximum DC Voltage Measurement
600 V
Resistance Measurement Accuracy
+/-1%
Current Leakage Testing
No
NIST Certification By Manufacturer
Not Certified
Maximum Storage Temperature
140 Degrees F
DC Current Measurement Resolution
0.1 uA
Frequency Measurement Accuracy
+/-0.50%
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (IR), Temperature (K)
Maximum Capacitance Measurement
100 uF
Maximum Frequency Measurement
10 MHz
Maximum AC Current Measurement
10 A
AC Voltage Measurement Resolution
0.1 V
Minimum AC Voltage Measurement
0.1 V
Temperature Measurement Accuracy
+/-2%
Maximum Operating Temperature
104 Degrees F
Battery Access
Yes
Minimum Frequency Measurement
0.001 Hz
Batteries Included
Yes
Capacitance Measurement Resolution
0.01 nF
Frequency Measurement Resolution
0.001 Hz
Bluetooth Compatible
No
Battery Voltage
9V
Thermal Imaging
No
Maximum Resistance Measurement
40 megaohm
Minimum Operating Temperature
41 Degrees F
Capacitance Measurement Accuracy
+/-0.50%
Removable Screen
No
Basic DC Voltage Accuracy
+/-0.30%
Minimum DC Current Measurement
0.1 uA
Basic AC Voltage Accuracy
+/-3%
Software Included
No
Minimum DC Voltage Measurement
0.1 V
DC Voltage Measurement Resolution
0.1 V
Waterproof
No
Minimum/Maximum Memory
No
Maximum AC Voltage Measurement
600 V
Minimum Capacitance Measurement
0.01 nF
Maximum DC Current Measurement
10 A
Minimum Temperature Measurement
-4 Degrees F
AC Response Calculation
TRMS
Dustproof
No
Temperature Measurement Resolution
1 Degrees F

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-3 Percent, Basic DC Voltage Accuracy +/-0.30 Percent, Data Hold Yes, Basic DC Current Accuracy +/-2.5 Percent, Instrument Safety Rating CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 4,000
