Shop FLUKE

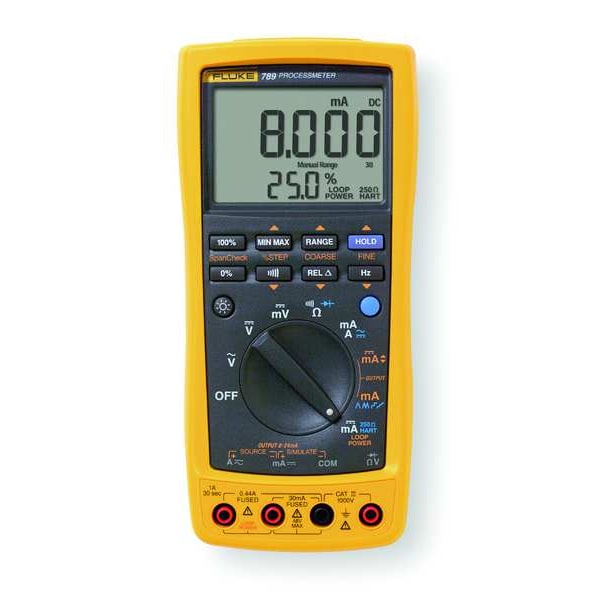

Process Calibrator Multimeter

  • Mfr # FLUKE-789

  • Zoro # G2763047

product price:
$
1,444.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Display Type
LCD
Data Hold
Min/Max/Average/Hold/Relative modes
Includes
Alligator Clips, Safety-Designed Test Lead Set
Standards
ANSI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1-92, IEC 1010-1
Audible Continuity
Beeps for resistance < 100 Ω
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-789
Zoro #
G2763047
UPC #
095969207072
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr
Battery Size
AA

Details

Item
Process Calibrator Multimeter
Display Type
LCD
Data Hold
Min/Max/Average/Hold/Relative modes
Includes
Alligator Clips, Safety-Designed Test Lead Set
Standards
ANSI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1-92, IEC 1010-1
Audible Continuity
Beeps for resistance < 100 Ω
Diode Test
2.0 V shoes diode voltage drop
Voltage Measurement Range
0 to 1000V AC/DC
Amps AC
1 A
Basic DC Accuracy
0.2% + 2 LSD (DC)
Source/Simulate
mA
Voltage (AC)
400mV/4/40/400/1000
Measurement Functions
F, mA, Ohms, V
Amps DC
30mA/1A
Accuracy
+/-0.5% + 2 Digits
Intrinsically Safe
No
True RMS
Yes
Current Measurement Range
0 to 30 mA DC
Resistance (Ohms)
400/4K/40K/400K/4M/40M
Source Current
0 to 20mA DC
Loop Supply Voltage
24 V DC
Frequency Range (Hz)
.01 Hz to19.999 K
Voltage (DC)
400mV/4/40/400/1000
Temp. Range
-200 °C to 1372 °C using the t3000 FC
Interface
Wireless
Parameters Sourced
DC Current, Resistance
Battery Chemistry
Alkaline
Current Measurement - Minimum
0 mA
Source Current - Minimum
0 mA
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Voltage Measurement - Maximum
1,000 V AC/DC
AC Magnitude Calculation
True RMS
Current Measurement - Maximum
30 mA
Calibration Certificate Type
Not Certified
IP Rating
IP42
Loop Current - Maximum
20 mA
Number of Batteries Required
4
Parameters Measured
AC Current, AC Voltage, Continuity, DC Voltage, Diode, Frequency
Voltage Measurement - Minimum
0 V AC/DC
Source Current - Maximum
20 mA
Batteries Included
Batteries Included
Maximum Frequency Measurement
19.999 kHz
Maximum Resistance Measurement
40 megaohm
Minimum Frequency Measurement
0.5 Hz
Frequency Measurement - Maximum
19.999 kHz
Intrinsic Safety
Not Specified Intrinsically Safe
Resistance Measurement - Maximum
40 megaohm
Frequency Measurement - Minimum
0.5 Hz
Digital Display Screen Type
LCD
Includes Batteries
Batteries Included

Description

Process Calibrator Multimeter, Source Current 0 to 20mA DC, Current Measurement Range 0 to 30 mA DC, Source Voltage -, Voltage Measurement Range 0 to 1000V AC/DC, Loop Supply Voltage 24 V DC, Accuracy +/-0.5 Percent + 2 Digits, Voltage (AC) 400mV/4/40/400/1000, Voltage (DC) 400mV/4/40/400/1000, Basic DC Accuracy 0.2 Percent + 2 LSD (DC), Amps AC 1 A, Amps DC 30mA/1A, Resistance (Ohms) 400/4K/40K/400K/4M/40M, True RMS Yes, Temp. Range (F) -, Temp. Rating (C) -
