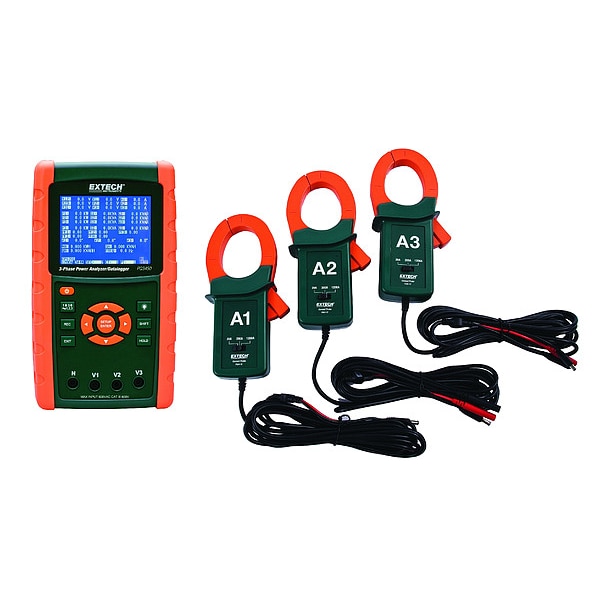

Graphical 3-Phase Power Analyzer Kit

Mfr # PQ3450-12-NIST
Zoro # G711935155

$3,645.99

8% off

$3,341.99

Free Shipping & Returns

Key Features

Includes

(3) 1200 A Current Clamps, (4) Voltage Leads with Alligator Clips, (8) AA Batteries, 100 to 240 V AC Adapter, Case, SD Card

Voltage Channels

Standards

CE, UL

Current Channels

Power Factor

0 to 1

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

PQ3450-12-NIST

Zoro #

G711935155

UPC #

793950334515

Country of Origin

Taiwan, Province of China

Dimensions

Battery Size

Tool Width

4.9 in

Tool Length

8.9 in

Tool Height

2.5 in

Manufacturer Warranty Length

2 yr

Details

Item

Graphical 3-Phase Power Analyzer Kit

Includes

(3) 1200 A Current Clamps, (4) Voltage Leads with Alligator Clips, (8) AA Batteries, 100 to 240 V AC Adapter, Case, SD Card

Voltage Channels

Standards

CE, UL

Current Channels

Power Factor

0 to 1

Peak Capture

Calibration Certificate

NIST

Voltage Accuracy

+/-0.50% Reading

Power Source

Battery

Current Accuracy

+/-0.50% Reading

Features

Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1,000) Ratio for High Power Distribution Systems, Banana Style Input Jacks and Easy-To-Hold Rugged Over Molded Housing, Built-In Clock and Calendar and Easy-To-Use On-Screen Menu, Captured Measurements can be Imported Directly Into Excel Via the SD Memory Card, Large, Dot-Matrix, Sun Readable, Numerical, Backlit LCD, Log upto 30,000 Reading on a Removable SD Memory Card in MS Excel(R) Format, Wide Sampling Rate Range (2 Seconds to 2 Hours)

Includes Software

Maximum Wattage

9.999 mW

Display Screen Type

LCD

Number of Records Stored

30,000

Testing Functions

AC Current, AC Voltage, Active Power, Active Power Energy, Apparent Power, Apparent Power Energy, Frequency, Phase, Power Factor, Reactive Power, Reactive Power Energy

Number of Batteries Required

CAT Safety Rating

CAT III 600V

Maximum AC Current Measured

1,200 A

For Phase

Three

Frequency Rating

45 to 65 Hz

AC Magnitude Calculation

True RMS

Maximum AC Voltage Measured

600 V

Display Type

Digital

Phase Angle

-180 Degrees to +180 Degrees

Maximum Volt-Amps

9.999 MVA

Includes Batteries

Yes

Data Logger

Yes

Digital Memory Capacity

30,000 measurement sets

Description

Graphical 3-Phase Power Analyzer Kit, CAT Safety Rating CAT III 600V, Calibration Certificate NIST, Current Channels 3, Data Logger Yes, Display Screen Type LCD, For Phase Three, Includes (3) 1200 A Current Clamps, (4) Voltage Leads with Alligator Clips, (8) AA Batteries, 100 to 240 V AC Adapter, Case, SD Card, Maximum AC Current Measured 1,200 A, Maximum AC Voltage Measured 600 V, Maximum DC Current Measured Not Applicable, Maximum DC Voltage Measured Not Applicable, Maximum Wattage 9.999 mW
