  5. Handheld Digital Oscilloscope, 20 MHz MHz, 2 Channels, 3.8 in Color LCD

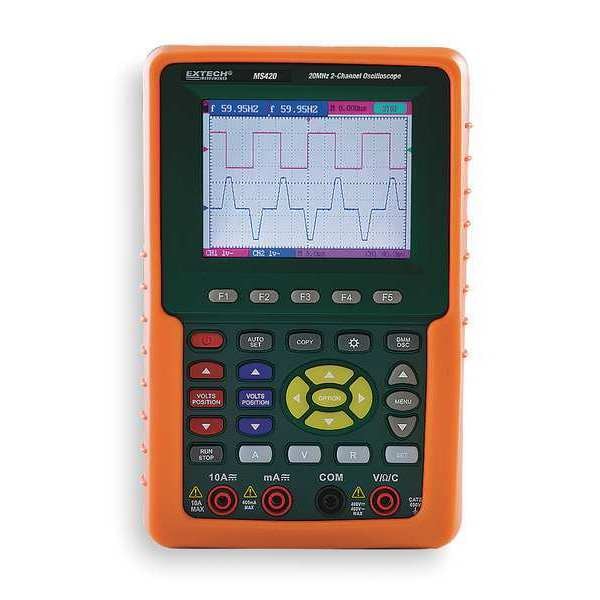

Extech Handheld Digital Oscilloscope, 20 MHz MHz, 2 Channels, 3.8 in Color LCD MS420 - main

Handheld Digital Oscilloscope, 20 MHz MHz, 2 Channels, 3.8 in Color LCD

  • Mfr # MS420

  • Zoro # G2088712

product price:  $1,205.99
/ea
Free Shipping & Returns

Key Features

Channels
2
Bandwidth (MHz)
20 MHz
Display
3.8 in Color LCD
Max./Min. Sweep Speed
5 nsec to 5 sec/div
Triggering Mode
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MS420
Zoro #
G2088712
UPC #
793950394205
Country of Origin
China

Dimensions

Bandwidth (MHz)
20 MHz
Max. Record Length
6k/ Channel
Manufacturers Warranty Length
2 yr
Bandwidth
20 MHz
Memory Depth
6,000 Data Points Per Channel
Display Screen Length
3.8 in

Details

Item
Handheld Digital Oscilloscope
Channels
2
Display
3.8 in Color LCD
Max./Min. Sweep Speed
5 nsec to 5 sec/div
Triggering Mode
Single
Battery Type
Rechargeable Li-ion
Cursors & Zoom
Cursors
Waveform / Measurement Stored
4
Input Sensitivity
5 mV/Div to 5 V/Div
Battery Pack Recharge Time (Hr.)
4 hr
Capacitance Measurements
Yes
Sampling Rate
100 MS/s
Safety Rating
CAT II 400V
Interface
USB
Glitch Capture
50 nsec
True RMS
Yes
Persistence
Yes
Battery Life
4 hr
Includes
(2) 1X/10X Oscilloscope Probes, AC Power Adapter, Adjustment Screwdriver, Capacitor Measuring Module, Hard Carrying Case, Test Leads
Features
(5) Automatic Measurements, AC/DC Voltage, Auto-Setup, Average Mode, Current, Diode Check and Continuity, Peak Detect, Resistance, Waveform Math, XY Mode
Green Environmental Attribute
Product is Rechargeable
Cursors and Zoom
Cursors
CAT Safety Rating
CAT II 400V
Input Sensitivity - Maximum
5 V/div
Input Sensitivity - Minimum
5 mV/div
DC Voltage Measurement - Maximum
400 V DC
Power Source
AC Adapter, Battery
Basic DC Voltage Accuracy
+/-1% +/-1 Digits; +/-1.50% +/-2 Digits
Battery Chemistry
Lithium Ion
DC Current Measurement - Minimum
40 mA
Digital Display Screen Type
LCD
Capacitance Measurement - Maximum
100 uF
Basic AC Voltage Accuracy
+/-1% +/-3 Digits
Calibration Certificate Type
Not Certified
AC Voltage Measurement Resolution
1 mV
Capacitance Measurement - Minimum
51.2 nF
Time Base - Maximum
5 sec/div
Battery Run Time
6 hr
AC Current Measurement - Minimum
40 mA
AC Current Measurement - Maximum
20 A
AC Voltage Measurement - Maximum
400 V AC
Time Base - Minimum
5 nsec/div
DC Current Measurement - Maximum
20 A
AC Voltage Measurement - Minimum
400 mV AC
Basic DC Current Accuracy
+/-1.50% +/-1 Digits; +/-3% +/-3 Digits
Standards
CE
DC Voltage Measurement - Minimum
400 mV
Body Style
Handheld
Basic AC Current Accuracy
+/-1.50% +/-3 Digits; +/-2% +/-1 Digits; +/-5% +/-3 Digits
Channel Source Isolation
Fully Isolated
AC Magnitude Calculation
True RMS
AC Current Measurement Resolution
10 uA
Number of Channels
2

Description

Handheld Digital Oscilloscope, Bandwidth (MHz) 20 MHz, 2 Channels, 3.8 in Color LCD Display, True RMS Yes, Sampling Rate 100 MS/s, 5 nsec to 5 sec/div Max./Min. Sweep Speed, 4 Waveform / Measurement Stored, Max. Record Length 6k/ Channel, Cursors and Zoom Cursors, Single Triggering Mode, Input Sensitivity 5 mV/Div to 5 V/Div, Yes Persistence, Glitch Capture 50 nsec, Capacitance Measurements Yes, USB Interface, Safety Rating CAT II 400V, Rechargeable Li-Ion Battery Type, Battery Life 4 hr

Restrictions

Hazardous material
