Shop EXTECH

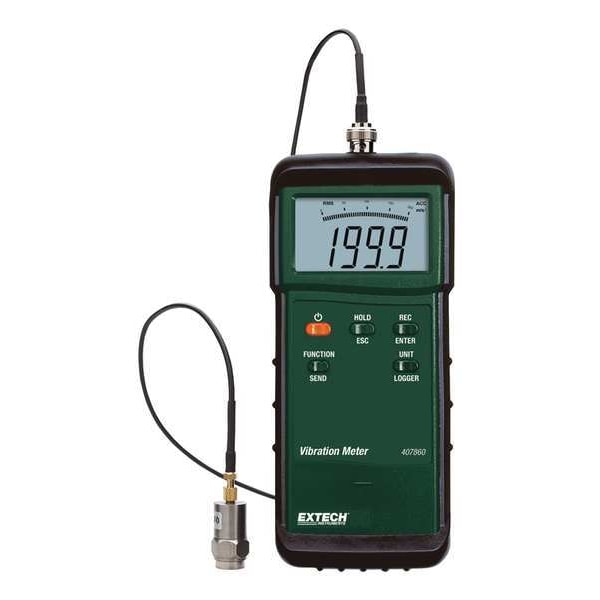

Heavy Duty Vibration Meter w/NIST Cert

  • Mfr # 407860-NIST
  • Zoro # G8270534
product price:
$
1,344.00
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Acceleration Range
2 to 656 ft/sq sec or 0.5 to 200 m/sq sec
Frequency Range (Hz)
10 To 1 K
Temp. Range (F)
32 Degrees to 122 Degrees F
Velocity
0.02 to 7.87 in/sec or 0.5 to 200 mm/sec
Manufacturers Warranty Length
1 yr
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
407860-NIST
Zoro #
G8270534
UPC #
793950418604
Country of Origin
Taiwan, Province of China
Item
Vibration Meter Kit
Acceleration Range
2 to 656 ft/sq sec or 0.5 to 200 m/sq sec
Frequency Range (Hz)
10 To 1 K
Temp. Range (F)
32 Degrees to 122 Degrees F
Velocity
0.02 to 7.87 in/sec or 0.5 to 200 mm/sec
Battery Type
9V
Auto Power Off
Yes
Temp. Range (C)
0 Degrees to 50 Degrees
Display
LCD
Special Features
Displacement (peak-to-peak) measurement, Manual.Auto store/Recall up to 500 readings, RMS or Peak value measurement, Wide 10Hz to 1kHz frequency range
Includes
Carrying Case, Magnetic Mount, Stand
Data Hold
Yes
Interface
RS-232
Calibration Certificate
NIST Certificate included
Accuracy
+/-5%
Velocity Max Resolution
0.02 in/sec
Acceleration Measurement - Minimum
2 ft/sq sec
Features
Remote Vibration Sensor
Alert Type
Vibration
Acceleration Measurement - Maximum
656 ft/sq sec
Maximum Velocity Measured
7.87 in/sec
Calibration Certificate Type
NIST
Displacement Max Resolution
0.001 in
Batteries Included
Yes
Number of Records Stored
500
Frequency Ranges
10 to 1 KHz
Maximum Operating Temperature
122 Degrees F
Minimum Operating Temperature
32 Degrees F
Number of Batteries Required
1
Maximum Displacement Measured
0.078 in
Minimum Displacement Measured
0.001 in
Battery Voltage
9V
Acceleration Max Resolution
2 ft/sq sec
Testing Functions
Acceleration, Displacement, Velocity
Digital Display Screen Type
LCD
Minimum Velocity Measured
0.02 in/sec

Description

Vibration Meter Kit, Accuracy +/-5 Percent, Acceleration Measurement - Minimum 2 ft/sq sec, Acceleration Measurement - Maximum 656 ft/sq sec, Number of Records Stored 500, Maximum Velocity Measured 7.87 in/sec, Minimum Velocity Measured 0.02 in/sec, Acceleration Max Resolution 2 ft/sq sec, Displacement Max Resolution 0.001 in, Maximum Displacement Measured 0.078 in, Minimum Displacement Measured 0.001 in, Velocity Max Resolution 0.02 in/sec, Auto Power Off Yes, Batteries Included Yes
