Shop All Vibration Meters
Extech

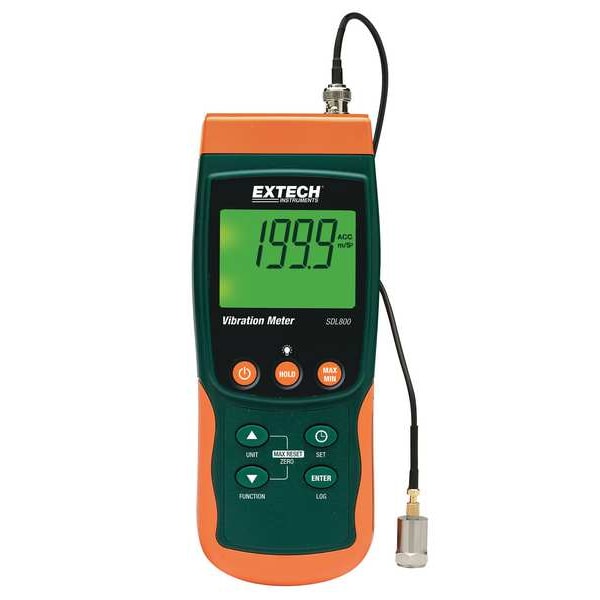

Vibration Meter with Displacement

product price: $1,149.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Acceleration Range 20.39g, 200 m/sq sec, 656 ft/sq sec
  • Frequency Range (Hz) 10 to 1k
  • Velocity 19.99cm/s, 200mm/s, 7.87in/s
  • Bearing/Gear Check No
See all product information

Product Information

  • Brand Extech
  • MFR # SDL800
  • Zoro # G4260627
  • UPC #
    793950438015
  • Country of Origin Taiwan, Province of China
  • Category Vibration Meters

Dimensions

Manufacturers Warranty Length 1 yr
Manufacturer Warranty Length 3 yr
Battery Size AA

Details

Promotion Restriction Not eligible for promotion
Item Vibration Meter
Acceleration Range 20.39g, 200 m/sq sec, 656 ft/sq sec
Frequency Range (Hz) 10 to 1k
Velocity 19.99cm/s, 200mm/s, 7.87in/s
Bearing/Gear Check No
Accuracy +/-5% + 2 Digits
Auto Power Off Yes
Battery Type (6) AA
Interface RS-232
Display Backlit LCD
Data Hold Yes
Special Features Datalogger Stores Up To 20M Readings In Excel(R) Format On A 2G SD Card, Displacement Measurement
Includes Carrying Case, Magnetic Mount, SD Card
Alert Type Vibration
Number of Digits 2
Features Manually Store 99 Readings
Minimum Velocity Measured 0.01 in/sec
Displacement Max Resolution 0.001 in
Acceleration Measurement - Maximum 656 ft/sq sec
Maximum Velocity Measured 7.87 in/sec
Maximum Displacement Measured 0.078 in
Testing Functions Acceleration, Displacement, Velocity
Minimum Displacement Measured 0.001 in
Velocity Max Resolution 0.01 in/sec
Number of Records Stored 99
Acceleration Max Resolution 1 ft/sq sec
Number of Batteries Required 6
Frequency Ranges 10 Hz to 1 kHz
Digital Display Screen Type LCD
Batteries Included Yes
Battery Voltage 1.5V
Acceleration Measurement - Minimum 1 ft/sq sec

Description

Vibration Meter, Accuracy +/-5 Percent + 2 Digits, Acceleration Measurement - Minimum 1 ft/sq sec, Acceleration Measurement - Maximum 656 ft/sq sec, Number of Records Stored 99, Maximum Velocity Measured 7.87 in/sec, Minimum Velocity Measured 0.01 in/sec, Acceleration Max Resolution 1 ft/sq sec, Displacement Max Resolution 0.001 in, Maximum Displacement Measured 0.078 in, Minimum Displacement Measured 0.001 in, Velocity Max Resolution 0.01 in/sec, Auto Power Off Yes, Batteries Included Yes

Restrictions

  • Hazardous material
