  5. LCR Meter, 20microH to 2000H, +/-0.5% Reading + 5 Digits, 20 pF to 20 mF

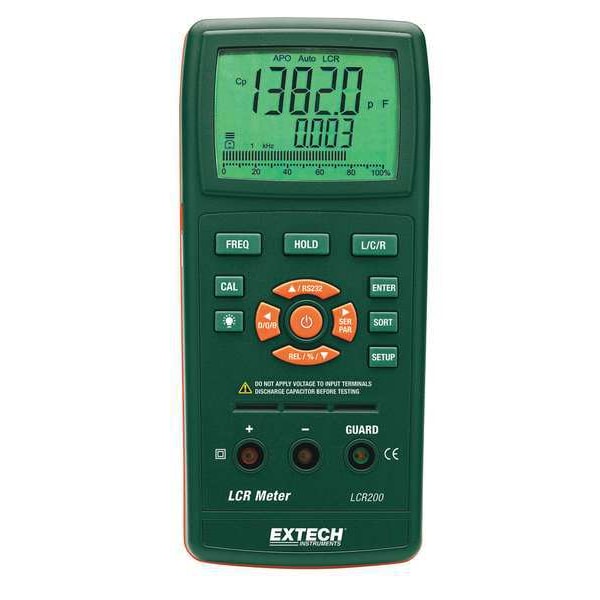

Extech LCR Meter, 20microH to 2000H, +/-0.5% Reading + 5 Digits, 20 pF to 20 mF LCR200 - main

LCR Meter, 20microH to 2000H, +/-0.5% Reading + 5 Digits, 20 pF to 20 mF

  • Mfr # LCR200

  • Zoro # G4069615

product price:  $329.99
/ea
Free Shipping & Returns

Key Features

Inductance Range
20microH to 2000H
Inductance Accuracy
+/-0.5% Reading + 5 Digits
Capacitance Range
20 pF to 20 mF
Capacitance Accuracy
+ /-0.5% Reading + 5 Digits (DF Less Than0.1)
Resistance Range (Ohms)
20ohms to 200Mohms
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LCR200
Zoro #
G4069615
UPC #
793950360200
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
2 yr
Battery Size
9V

Details

Item
LCR Meter
Inductance Range
20microH to 2000H
Inductance Accuracy
+/-0.5% Reading + 5 Digits
Capacitance Range
20 pF to 20 mF
Capacitance Accuracy
+ /-0.5% Reading + 5 Digits (DF Less Than0.1)
Resistance Range (Ohms)
20ohms to 200Mohms
Includes
Test Leads
Display
Dual LCD
Counts
20,000/2,000
Battery Type
9V
Auto Power Off
Yes with Disable
Resistance Accuracy
+ /-0.5% Reading + 5 Digits
Audible Continuity
No
Test Frequencies
100 Hz, 120 Hz, 1,000 Hz, 10 kHz, 100 kHz
Product Type
LCR Meter
Resistance Measurement - Maximum
200 megaohm
Digital Display Screen Type
LCD with Backlight
Inductance Measurement - Minimum
20 uH
Inductance Measurement - Maximum
2,000 H
Primary Display Counts
20,000
Resistance Measurement - Minimum
20 ohm
Battery Chemistry
Alkaline
Capacitance Measurement - Minimum
20 pF
Includes Batteries
Batteries Included
Number of Batteries Required
1
Battery Voltage
9 V
Capacitance Measurement - Maximum
20 mF
Standards
CE
Calibration Certificate Included
No Certification Included
Instrument Style
Handheld

Description

LCR Meter, Inductance Range 20microH to 2000H, Inductance Accuracy +/-0.5 Percent Reading + 5 Digits, Capacitance Range 20 pF to 20 mF, Capacitance Accuracy + /-0.5 Percent Reading + 5 Digits (DF less than 0.1), Resistance Range (Ohms) 20ohms to 200Mohms, Resistance Accuracy + /-0.5 Percent Reading + 5 Digits, Display Dual LCD, Counts 20,000/2,000, Test Frequencies 100 Hz, 120 Hz, 1,000 Hz, 10 kHz, 100 kHz, Auto Power Off Yes with Disable, Audible Continuity No, Battery Type 9V
