Extech Power Analyzer/Logger, 9.99MW, 1200A 382100 - main

Power Analyzer/Logger, 9.99MW, 1200A

  • Mfr # 382100

  • Zoro # G3384272

product price:  $2,699.00
/ea
Free Shipping & Returns

Key Features

Phase
3
Storage
52,428/17,476 Readings
Max. AC Amps
1,200 A
Data Logging
Yes
Current Channels
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
382100
Zoro #
G3384272
UPC #
793950382103
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AA

Details

Item
Power Analyzer/Datalogger
Phase
3
Storage
52,428/17,476 Readings
Max. AC Amps
1,200 A
Data Logging
Yes
Current Channels
3
Power Factor
0 to 1
Voltage Accuracy
+/-0.5% +30 Digits
Current Accuracy
+/-0.5% +30 Digits
Peak Capture
Yes
Includes

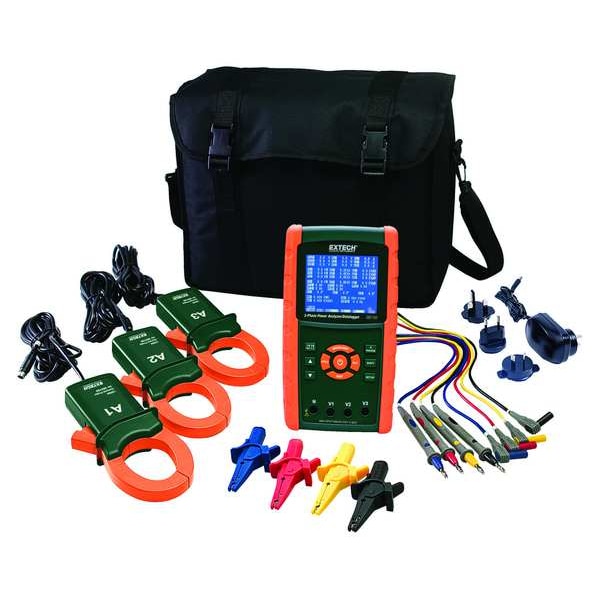

(3) 1200 A Current Clamps, (4) Voltage Leads with Alligator Clips, (8) AA Batteries, 2G SD Memory Card, AC Adapter, Carrying Case and Instructions
Max. DC Amps
3,000 A
Display
Back Lighted LCD
Calibration Frequency
45 to 65 Hz
Voltage Channels
3
AC Response
TRMS
Max. VA
9.99 MVA
Sampling Rate
2 sec to 2 hr
Safety Rating
Cat III 600V
Max. Watts
9.99 MW
Kit Current Capability
1,200 A
Max. AC Voltage
600
Communication Protocol
RS-232, SD Memory Card
Maximum AC Current Measured
1,200 A
For Phase
Three
Minimum Operating Temperature
0 Degrees F
Maximum Operating Temperature
122 Degrees F
Calibration Certificate Included
No Certification Included
IP Rating
Not Rated
Data Output Type
RS-232, SD Card
AC Magnitude Calculation
True RMS
Maximum AC Voltage Measured
600 V
Maximum Wattage
9.99 mW
Display Type
Digital
CAT Safety Rating
CAT III 600V
Testing Functions
AC Current, AC Voltage, Active Power (MW), Active Power Energy (MWH), Apparent Power (MVA), Apparent Power Energy (MVAh), Frequency, Phase, Power Factor, Reactive Power (MVAR), Reactive Power Energy (MVARHh)
Input Impedance
10 megaohm
Power Source
Battery

Description

Power Analyzer/Datalogger, Current Channels 4, For Phase Three, Includes (3) 1200 A Current Clamps, (4) Voltage Leads with Alligator Clips, (8) AA Batteries, 2G SD Memory Card, AC Adapter, Carrying Case and Instructions, Maximum AC Current Measured 1,200 A, Peak Capture Yes, Power Factor 0 to 1, Voltage Channels 4, Calibration Frequency 45 to 65 Hz, Communication Protocol RS-232, SD Memory Card, Current Accuracy +/-0.5 Percent +30 Digits
