- MFR #
- PRC20
- Zoro #
- G5076583
- UPC #
- 793950710210
- Country of Origin
- Taiwan, Province of China
- Item

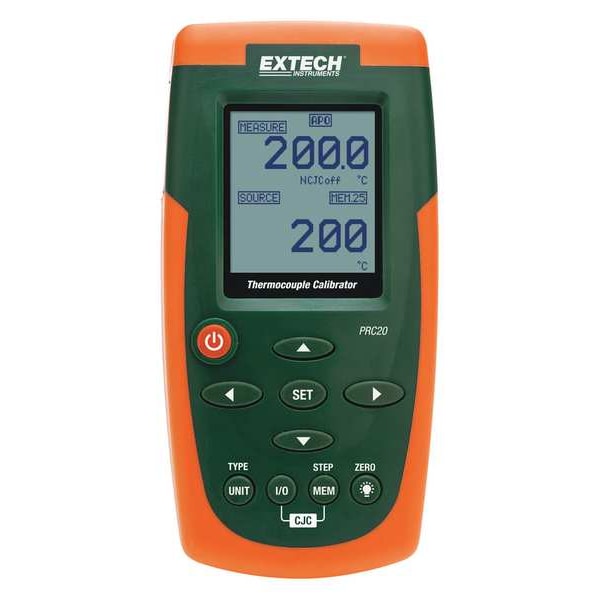

- Handheld Temperature Calibrator
- Includes
- 100 to 240V Universal AC Adapter, Batteries, Calibration Cables, Carrying Case, Instruction
- Display
- LCD
- Accuracy
- +/-(0.05% + 1.8 Degrees F)
- Powered By
- (6) AA Batteries or 100 to 240V Universal AC Adapter
- Voltage Measurement Range
- -10mV to 60mV DC
- Measurement Functions
- Temperature, Voltage
- Thermocouple Temperature Range
- -58 Degrees to 2498 Degrees F (Dependent on Thermocouple Type)
- Source Voltage
- 55 mV DC
- Thermocouple Type
- J, K, T, C, E, N, R and S
- Includes NIST-Traceable Certificate
- No
- For Thermocouple Type
- Type C, Type E, Type J, Type K, Type N, Type R, Type S, Type T
- Sensor Maximum Temperature F
- 3,182 Degrees F (Type C), 1,382 Degrees F (Type E), 1,832 Degrees F (Type J), 2,498 Degrees F (Type K), 2,732 Degrees F (Type N), 3,182 Degrees F (Type R), 3,182 Degrees F (Type S), 752 Degrees F (Type T)
- Data Hold
- No
- Temperature Accuracy
- +/-0.05% +2 Degrees F/1 Degrees C
- Display Type
- LCD
- Temperature Range
- -58 Degrees to 2498 Degrees F/-50 Degrees to 1,750 Degrees C
- Number of Digits
- 4
- Thermocouple Temperature Range F
- -58 Degrees to 2,498 Degrees F
- Accuracy - Measure
- 0.05% Reading +/-1 Degrees
- Probe Connection Type
- Mini Thermocouple Connector, Standard Banana I/O Ports
- Thermocouple Temperature Range C
- -50 Degrees to 1,750 Degrees C
- Sensor Temperature Range
-184 Degrees to 752 Degrees F/-120 Degrees to 400 Degrees C (Type T), -58 Degrees to 1,382 Degrees F/-50 Degrees to 750 Degrees C (Type E), -58 Degrees to 1,832 Degrees F/-50 Degrees to 1,000 Degrees C (Type J), -58 Degrees to 2,498 Degrees F/-50 Degrees to 1,370 Degrees C (Type K), -58 Degrees to 2,732 Degrees F/-50 Degrees to 1,300 Degrees C (Type N), 32 Degrees to 3,182 Degrees F/0 Degrees to 1,750 Degrees C (Type C), 32 Degrees to 3,182 Degrees F/0 Degrees to 1,750 Degrees C (Type R), 32 Degrees to 3,182 Degrees F/0 Degrees to 1,750 Degrees C (Type S)
- Sensor Minimum Temperature F
- 32 Degrees F (Type C), -58 Degrees F (Type E), -58 Degrees F (Type J), -58 Degrees F (Type K), -58 Degrees F (Type N), 32 Degrees F (Type R), 32 Degrees F (Type S), -184 Degrees F (Type T)
- Auto Power Off
- Yes
- Sensor Minimum Temperature C
- 0 Degrees C (Type C), -50 Degrees C (Type E), -50 Degrees C (Type J), -50 Degrees C (Type K), -50 Degrees C (Type N), 0 Degrees C (Type R), 0 Degrees C (Type S), -120 Degrees C (Type T)
- Sensor Maximum Temperature C
- 1,750 Degrees C (Type C), 750 Degrees C (Type E), 1,000 Degrees C (Type J), 1,370 Degrees C (Type K), 1,300 Degrees C (Type N), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T)
- Millivolt Accuracy
- 10uV +/-1 Digit
- Display Functions
- Degrees C/ Degrees F Switchable, Datalogging
- Accuracy - Source
- 0.05% Reading +/-1 Degrees
- Sensor Type
- Thermocouple
- Millivolt Range
- -10 to 60mV DC
- Sensor Maximum Temperature °C
- 1,750 Degrees C (Type C), 750 Degrees C (Type E), 1,000 Degrees C (Type J), 1,370 Degrees C (Type K), 1,300 Degrees C (Type N), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T)
- Sensor Minimum Temperature °F
- 32 Degrees F (Type C), -58 Degrees F (Type E), -58 Degrees F (Type J), -58 Degrees F (Type K), -58 Degrees F (Type N), 32 Degrees F (Type R), 32 Degrees F (Type S), -184 Degrees F (Type T)
- Sensor Minimum Temperature °C
- 0 Degrees C (Type C), -50 Degrees C (Type E), -50 Degrees C (Type J), -50 Degrees C (Type K), -50 Degrees C (Type N), 0 Degrees C (Type R), 0 Degrees C (Type S), -120 Degrees C (Type T)
- Sensor Maximum Temperature °F
- 3,182 Degrees F (Type C), 1,382 Degrees F (Type E), 1,832 Degrees F (Type J), 2,498 Degrees F (Type K), 2,732 Degrees F (Type N), 3,182 Degrees F (Type R), 3,182 Degrees F (Type S), 752 Degrees F (Type T)
- RTD Temperature Fahrenheit - Maximum
- 3,182 Degrees F
- For RTD Type
- Thermocouple
- Sensor Technology
- Thermocouple
- Thermocouple Temperature Fahrenheit - Maximum
- 2,498 Degrees F
- Thermocouple Temperature Celsius - Maximum
- 1,750 Degrees C
- RTD Temperature Celsius - Maximum
- 1,750 Degrees C
- Thermocouple Temperature Fahrenheit - Minimum
- -58 Degrees F
- Thermocouple Temperature Celsius - Minimum
- -50 Degrees C
- RTD Temperature Celsius - Minimum
- -120 Degrees C
- Temperature Source Accuracy
- 0.05% Reading +/-1 Degrees
- Millivolt - Maximum
- 60mV DC
- Includes Data Logging
- Data Logging Included
- RTD Temperature Fahrenheit - Minimum
- -184 Degrees F
- Millivolt - Minimum
- -10mV DC
- Parameters Measured
- Temperature, Voltage
- Temperature Measurement Accuracy
- 0.05% Reading +/-1 Degrees
- Probe Connection Ports
- Mini Thermocouple Connector, Standard Banana I/O Ports
