Current Measurement Range
|
0 to 24mADC
|
|
Item
|

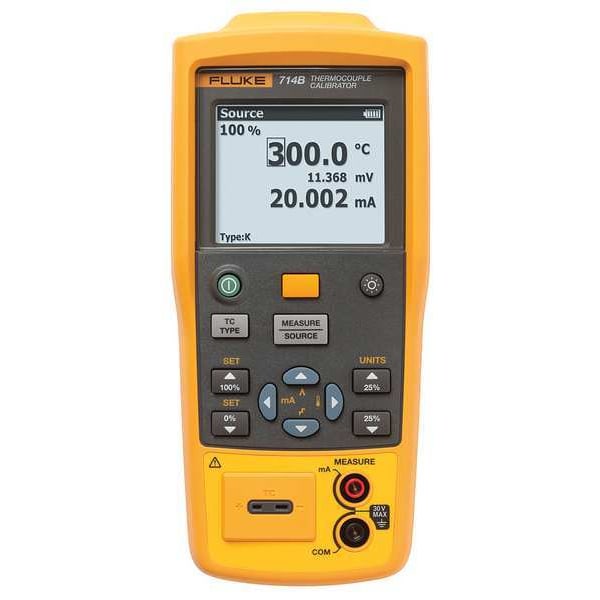

Handheld Temperature Calibrator
|
|
Voltage Measurement Range
|
-10mV to 75mV DC
|
|
Accuracy
|
Dependent on Thermocouple Type
|
|
Thermocouple Type
|
J, K, T, C, E, N, R and S
|
|
Source Voltage
|
-10mV to 75mV DC
|
|
Measurement Functions
|
Current, Temperature, Voltage
|
|
Thermocouple Temperature Range
|
-250 Degrees to 2300 Degrees C (Dependent on Thermocouple Type)
|
|
Source/Simulate
|
T, mV, mA
|
|
Powered By
|
(4) AA Alkaline Batteries
|
|
FM Approved
|
No
|
|
Display
|
Backlit LCD
|
|
Calibration Certificate
|
NIST Traceable
|
|
Agency Compliance
|
CE, CSA, TUV, RCM
|
|
Includes
|
Alligator Clips, Batteries, Magnetic Hanging Tool, Manual, Quick Reference Guide, Test Leads
|
|
Sensor Temperature Range
|
-20 Degrees to 1,750 Degrees C (Type R), -20 Degrees to 1,750 Degrees C (Type S), -200 Degrees to 1,200 Degrees C (Type U), -200 Degrees to 1,370 Degrees C (Type K), -200 Degrees to 400 Degrees C (Type T), -200 Degrees to 600 Degrees C (Type U), -200 Degrees to 900 Degrees C (Type L), -200 Degrees to 950 Degrees C (Type E), 600 Degrees to 1,800 Degrees C (Type B)
|
|
RTD Temperature Range F
|
-328 Degrees to 1,472 Degrees F
|
|
Sensor Type
|
Thermocouple
|
|
Accuracy - Source
|
0.015% +10 uA
|
|
Accuracy - Measure
|
0.010% +2 uA
|
|
Sensor Maximum Temperature C
|
Type B 1.800 Degrees C, 950 Degrees C (Type E), 1,370 Degrees C (Type K), 900 Degrees C (Type L), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T), 1,200 Degrees C (Type U), 600 Degrees C (Type U)
|
|
RTD Temperature Range C
|
-200 Degrees to 800 Degrees C
|
|
Includes NIST-Traceable Certificate
|
Yes
|
|
Thermocouple Temperature Range C
|
-250 Degrees to 2,300 Degrees C
|
|
Display Type
|
LCD
|
|
Calibration Details
|
+/-0.002% of Reading +0.002% of Range / Degrees C ( 28 Degrees C)
|
|
Number of Digits
|
5
|
|
Data Hold
|
No
|
|
Resistance Range
|
0 to 3,200 ohm
|
|
Auto Power Off
|
Yes
|
|
Temperature Range
|
-328 Degrees to 1,472 Degrees F/-200 Degrees to 800 Degrees C
|
|
Sensor Minimum Temperature C
|
600 Degrees C (Type B), -200 Degrees C (Type E), -200 Degrees C (Type K), -200 Degrees C (Type L), -20 Degrees C (Type R), -20 Degrees C (Type S), -200 Degrees C (Type T), -200 Degrees C (Type U)
|
|
Millivolt Accuracy
|
0.025% +1 Count
|
|
Millivolt Range
|
-10 to 75mV
|
|
For RTD Type
|
Ni 120, Pt 100 (385), Pt 100 (392) (3926), Pt 100 JIS (3916), Pt 1000 (385), Pt 200 (385), Pt 500 (385)
|
|
For Thermocouple Type
|
Type B, Type E, Type J, Type K: Type T, Type L, Type R, Type S, Type U
|
|
Sensor Minimum Temperature °C
|
600 Degrees C (Type B), -200 Degrees C (Type E), -200 Degrees C (Type K), -200 Degrees C (Type L), -20 Degrees C (Type R), -20 Degrees C (Type S), -200 Degrees C (Type T), -200 Degrees C (Type U)
|
|
Sensor Maximum Temperature °C
|
Type B 1.800 Degrees C, 950 Degrees C (Type E), 1,370 Degrees C (Type K), 900 Degrees C (Type L), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T), 1,200 Degrees C (Type U), 600 Degrees C (Type U)
|
|
Sensor Maximum Temperature °C
|
Type B 1.800 Degrees C, 950 Degrees C (Type E), 1,370 Degrees C (Type K), 900 Degrees C (Type L), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T), 1,200 Degrees C (Type U), 600 Degrees C (Type U)
|
|
Sensor Minimum Temperature °C
|
600 Degrees C (Type B), -200 Degrees C (Type E), -200 Degrees C (Type K), -200 Degrees C (Type L), -20 Degrees C (Type R), -20 Degrees C (Type S), -200 Degrees C (Type T), -200 Degrees C (Type U)
|
