Shop EXTECH

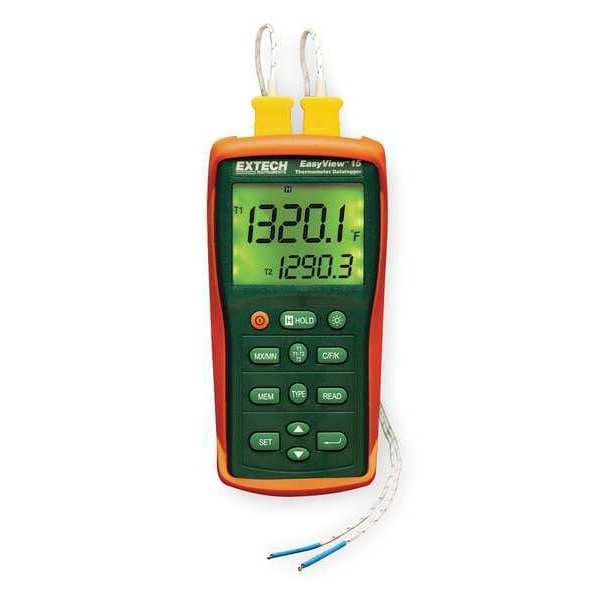

Thermometer, LCD, 2.8 in, Thermocouple

  • Mfr # EA15
  • Zoro # G2033455
product price:
$
350.00
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Thermometer Item
Thermocouple Thermometer
Thermometer Thermocouple Type
Type E, Type J, Type K, Type N, Type R, Type S, Type T
Number of Inputs
2
Probe Connector
Mini-Type
Temp. Range (F)
Type E -200 Degrees to 1,598 Degrees F, Type J -200 Degrees to 1,994 Degrees F, Type K -200 Degrees to 1,999 Degrees F, Type N -200 Degrees to 1,999 Degrees F, Type R 32 Degrees to 1,999 Degrees F, Type S 32 Degrees to 1,999 Degrees F, Type T -200 Degrees to 752 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EA15
Zoro #
G2033455
UPC #
793950411155
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Display Size
1.5 in H x 2.8 in W
Manufacturer Warranty Length
1 yr
Digit Height
1 in
Display Height
1.5 in
Display Width
2.8 in
Battery Size
AAA

Details

Thermometer Item
Thermocouple Thermometer
Thermometer Thermocouple Type
Type E, Type J, Type K, Type N, Type R, Type S, Type T
Number of Inputs
2
Probe Connector
Mini-Type
Temp. Range (F)
Type E -200 Degrees to 1,598 Degrees F, Type J -200 Degrees to 1,994 Degrees F, Type K -200 Degrees to 1,999 Degrees F, Type N -200 Degrees to 1,999 Degrees F, Type R 32 Degrees to 1,999 Degrees F, Type S 32 Degrees to 1,999 Degrees F, Type T -200 Degrees to 752 Degrees F
Temp. Range (C)
Type E -150 Degrees to 870 Degrees , Type J -150 Degrees to 1090 Degrees , Type K -150 Degrees to 1372 Degrees , Type N -150 Degrees to 1300 Degrees , Type R 2 Degrees to 1767 Degrees , Type S 2 Degrees to 1767 Degrees , Type T -150 Degrees to 400 Degrees
Accuracy
+/-0.05 % + 1.5 Degrees F/0.75 Degrees C (Type J, K, E, T, N), +/-0.05 % + 4 Degrees F/2 Degrees C (Type R, S)
Display
Backlit 3 Line LCD
Battery Type
(6) AAA
Features
Timer Function Displays Elapsed Time Plus The Time When Min/Max Readings Occurred, Offset Key Used for Zero Function to Make Relative Measurements
Includes
(2) Type K Bead Wire Temperature Probe, Batteries, Built-In Stand, Protective Holster
Data Hold
Yes
Resolution
0.1 Degrees
Sampling Rate
3 to 355 sec
Auto Power Off
Yes
Calibration Certificate Included
No
Item
Thermocouple Thermometer
Data Logging
Yes
Interface
RS232
Standards
CE
Memory
Min/Max/Avg/Dif
NIST Certification By
Not Certified
Display Type
LCD
Functions
Degrees F/ Degrees C Switchable, Open Input Indication, Over Range Indication
Sensor Type
Thermocouple
Temperature Meter Type
Multichannel Thermocouple Temperature Meter with Data Output and Min/Max
Number of Digits
5
Power Source Details
(6) AAA Batteries
Included Probes
(2) Type K Bead Wire Temperature Probe
Digital Display
1.5 in H x 2.8 in W Display with - 5-Digit Backlit LCD - 1 in Digit Height
Includes Wireless Transmission
No
Thermocouple Temperature Range F
-200 Degrees to 1,598 Degrees F (Type E), -200 Degrees to 1,994 Degrees F (Type J), -200 Degrees to 1,999.9 Degrees F (Type K, N), -200 Degrees to 752 Degrees F (Type T), 35 Degrees to 1,999.9 Degrees F (Type R, S)
Backlit
Yes
Response Time
1 sec
For Thermocouple Type
Type E, Type J, Type K, Type N, Type R, Type S, Type T
Includes Batteries
Yes
Thermocouple Temperature Range C
-150 Degrees to 1,090 Degrees C (Type J), -150 Degrees to 1,300 Degrees C (Type N), -150 Degrees to 1,370 Degrees C (Type K), -150 Degrees to 400 Degrees C (Type T), -150 Degrees to 870 Degrees C (Type E), 2 Degrees to 1,767 Degrees C (Type R, S)
Data Output Type
RS-232, SD Card
Temperature Range
-200 Degrees to 1,598 Degrees F/-150 Degrees to 870 Degrees C (Type E), -200 Degrees to 1,994 Degrees F/-150 Degrees to 1,090 Degrees C (Type J), -200 Degrees to 1,999.9 Degrees F/-150 Degrees to 1,300 Degrees C (Type N), -200 Degrees to 1,999.9 Degrees F/-150 Degrees to 1,370 Degrees C (Type K), -200 Degrees to 752 Degrees F/-150 Degrees to 400 Degrees C (Type T), 35 Degrees to 1,999.9 Degrees F/2 Degrees to 1,767 Degrees C (Type R, S)
Number of Channels
2
Includes NIST-Traceable Certificate
No
Relative Humidity - Maximum
80%
Temperature Units
Celsius, Fahrenheit
Number of Batteries Required
6
Number of Probes
2
RTD Temperature Fahrenheit - Maximum
1,999 Degrees F
Thermocouple Temperature Fahrenheit - Maximum
1,598 Degrees F (Type E), 1,994 Degrees F (Type J), 1,999.9 Degrees F (Type K, N), 1,999.9 Degrees F (Type R, S), 752 Degrees F (Type T)
Testing Functions
Average Temperature, Differential Temperature, Min/Max Temperature
RTD Temperature Fahrenheit - Minimum
-200 Degrees F
Calibration Certificate Type
Not Certified
Sensor Technology
Thermocouple
Meter Type
Handheld
Relative Humidity - Minimum
0%
Temperature Resolution F
0.1 Degrees F
Thermocouple Temperature Fahrenheit - Minimum
-200 Degrees F (Type E), -200 Degrees F (Type J), -200 Degrees F (Type K, N), -200 Degrees F (Type T), 35 Degrees F (Type R, S)

Description

Thermocouple Thermometer, Thermocouple, Number of Channels 2, Includes NIST-Traceable Certificate No, Accuracy +/-0.05 Percent +1.5 Degrees F/+0.75 Degrees C (Types J, K, E, T, N), +/-0.05 Percent +4 Degrees F/+2 Degrees C (Types R, S)
