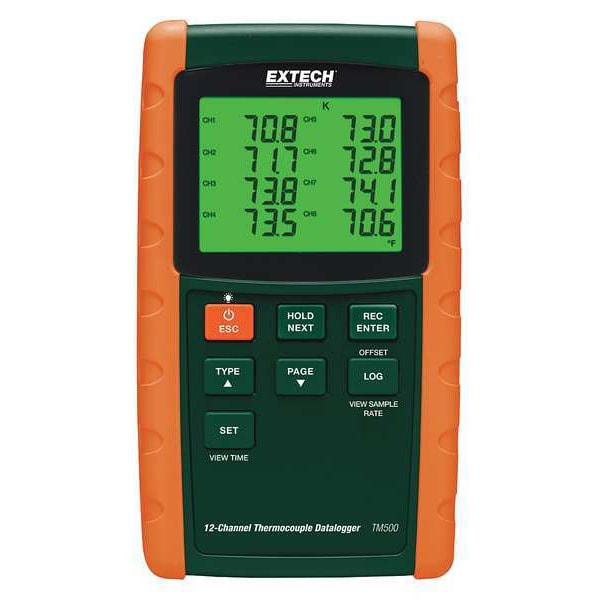

Thermometer, LCD, 4.9 in, Thermocouple

  • Mfr # TM500

  • Zoro # G7523521

product price:  $1,363.99
/ea
Free Shipping & Returns

Key Features

Thermometer Item
Thermocouple Datalogger
Thermometer Thermocouple Type
Type E, Type J, Type K, Type R, Type S, Type T
Number of Inputs
12
Probe Connector
Thermocouple
Temp. Range (F)
-148 Degrees to 3092 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
TM500
Zoro #
G7523521
UPC #
793950420058
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Digit Height
0.75 in
Manufacturer Warranty Length
1 yr
Display Size
2.5 in H x 4.9 in W
Display Height
2.5 in
Display Width
4.9 in
Battery Size
AA

Details

Thermometer Item
Thermocouple Datalogger
Thermometer Thermocouple Type
Type E, Type J, Type K, Type R, Type S, Type T
Number of Inputs
12
Probe Connector
Thermocouple
Temp. Range (F)
-148 Degrees to 3092 Degrees
Temp. Range (C)
-100 Degrees to 1700 Degrees
Accuracy
+/-0.4 % +1.8 Degrees F/1 Degrees C (Type J, K, E, T), +/-0.5 % +5 Degrees F/3 Degrees C (Type R, S)
Display
LCD
Battery Type
(8) AA
Features
(12) Channels, (6) Thermocouple Types, Datalog Up to 20M Readings Using a 2G SD Card, Offset Adjsutment, Data Hold, Auto Power Off with Disable
Auto Power Off
Yes
Resolution
0.1 Degrees , 1 Degrees
Data Logging
Yes
Sampling Rate
1 to 3600 sec
Memory
Min/Max
Interface
SD card
Calibration Certificate
Available Separately
Includes
(12) Type K Bead Wire Temperature Probes, (8) AA Batteries, Hard Carrying Case, SD Card
Standards
CE
Calibration Certificate Included
No
Data Hold
Yes
Item
Thermocouple Thermometer
NIST Certification By
Not Certified
Response Time
1 sec
Digital Display
2.5 in H x 4.9 in W Display with 5-Digit Backlit LCD - 0.75 in Digit Height
Includes NIST-Traceable Certificate
No
Functions
Degrees F/ Degrees C Switchable, Low Battery Indication, Min/Max Memory
Thermocouple Temperature Range C
-100 Degrees to 1,150 Degrees C (Type J), -100 Degrees to 1,300 Degrees C (Type K), -100 Degrees to 400 Degrees C (Type T), -100 Degrees to 900 Degrees C (Type E), 0 Degrees to 1,500 Degrees C (Type S), 0 Degrees to 1,700 Degrees C (Type R)
Thermocouple Temperature Range F
-148 Degrees to 1,652 Degrees F (Type E), -148 Degrees to 2,102 Degrees F (Type J), -148 Degrees to 2,372 Degrees F (Type K), -148 Degrees to 752 Degrees F (Type T), 32 Degrees to 2,732 Degrees F (Type S), 32 Degrees to 3,092 Degrees F (Type R)
Temperature Meter Type
Multichannel Thermocouple Temperature Meter with Data Output and Min/Max
Included Probes
(12) Type K Bead Wire Temperature Probe
Backlit
Yes
Power Source Details
(8) AA Batteries
Display Type
LCD
Temperature Range
-148 to 2,372 Degrees F/-100 Degrees to 1,300 Degrees C (Type K), -148 Degrees to 1,652 Degrees F/-100 Degrees to 900 Degrees C (Type E), -148 Degrees to 2,102 Degrees F/-100 Degrees to 1,150 Degrees C (Type J), -148 Degrees to 752 Degrees F/-100 Degrees to 400 Degrees C (Type T), 32 Degrees to 2,732 Degrees F/0 Degrees to 1,500 Degrees C (Type S), 32 Degrees to 3,092 Degrees F/0 Degrees to 1,700 Degrees C (Type R)
Data Output Type
RS-232
Sensor Type
Thermocouple
For Thermocouple Type
Type E, Type J, Type K, Type R, Type S, Type T
Includes Wireless Transmission
No
Number of Channels
12
Number of Digits
5
Includes Batteries
Yes
Includes Low Battery Indicator
Low Battery Indicator
Thermocouple Temperature Fahrenheit - Minimum
-148 Degrees F (Type E), -148 Degrees F (Type J), -148 Degrees F (Type K), -148 Degrees F (Type T), 32 Degrees F (Type R), 32 Degrees F (Type S)
Relative Humidity - Maximum
85%
Number of Probes
12
Number of Batteries Required
8
Calibration Certificate Type
Not Certified
RTD Temperature Fahrenheit - Maximum
3,092 Degrees F
Sensor Technology
Thermocouple
Relative Humidity - Minimum
0%
RTD Temperature Fahrenheit - Minimum
-100 Degrees F
Meter Type
Handheld
Temperature Units
Celsius, Fahrenheit
Testing Functions
Min/Max Temperature
Thermocouple Temperature Fahrenheit - Maximum
1,652 Degrees F (Type E), 2,102 Degrees F (Type J), 2,372 Degrees F (Type K), 2,732 Degrees F (Type S), 3,092 Degrees F (Type R), 752 Degrees F (Type T)
Temperature Resolution F
0.1 Degrees F below 1,000 Degrees F, 1 Degrees F at or above 1,000 Degrees F

Description

Thermocouple Datalogger, Thermocouple, Number of Channels 12, Includes NIST-Traceable Certificate No, Accuracy +/-0.4 Percent +1.8 Degrees F/1 Degrees C (Types J, K, E, T), +/-0.5 Percent +5 Degrees F/3 Degrees C (Types R, S)
