Extract-All

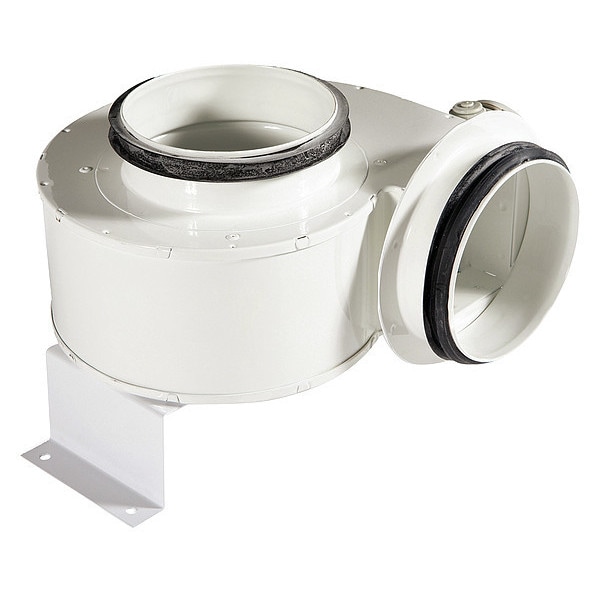

Exhaust Blower, Universal Mount

product price: $609.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Wheel Dia. (In.) 5 in
  • Voltage 120/240
  • Housing Length (In.) 8 1/2 in
  • Housing Height (In.) 12 in
  • Inlet Dia. (In.) 5 in
See all product information

Product Information

Dimensions

Wheel Dia. (In.) 5 in
Housing Length (In.) 8 1/2 in
Housing Height (In.) 12 in
Inlet Dia. (In.) 5 in
Housing Width (In.) 9 in
Housing Depth 8 1/2 in
Outlet Diameter 5 in
Inlet Diameter 5 in
Wheel Diameter 5 in
Housing Width 9 in
Manufacturer Warranty Length 3 yr
Housing Height 12 in

Details

Item Exhaust Blower
Voltage 120/240
Motor RPM 2,000 RPM
Full Load Amps 2.83 A
dBA @ 5 Feet 68 dBA
Hz 60
Motor Enclosure Totally Enclosed
Phase 1
Motor Type 350W
CFM @ 2.000-In. SP 240
Bearing Type Ball
Includes Mounting Hardware Yes
Standards CE Compliant, UL Listed
Features Heavy-Duty Construction, Helps Ensure Compliance with Current and Future OSHA Regulations, High Static Capabilities, Long Motor Life
Wheel Type Forward-Curved
Outlet Shape Round
Current 2.8 A
Sound Level 64 dB @ 12 in, 68 dB @ 6 ft
Includes Mounting Brackets, Wiring
Airflow @ 0.500 in SP 350 cfm
Application Chemical Vapors, Cutting, Grinding, Powder Mixing, Welding
Maximum Fan Speed 2,000 RPM
For Ventilation Type Exhaust
Thermal Overload Protection Yes
Number of Inlets 1
Motor Speed 2,000 RPM
Frequency 60 Hz
For Location Indoor
Mount Type Bench, Ceiling, Floor, Wall
Housing Color White
Nameplate Voltage 120V AC
Assembly Assembled
OEM Replacement No

Description

Exhaust Blower, Wheel Type Forward-Curved, Assembly Assembled, Wheel Diameter 5 in, Airflow @ 0.500 in SP 350 cfm
