Extract-All

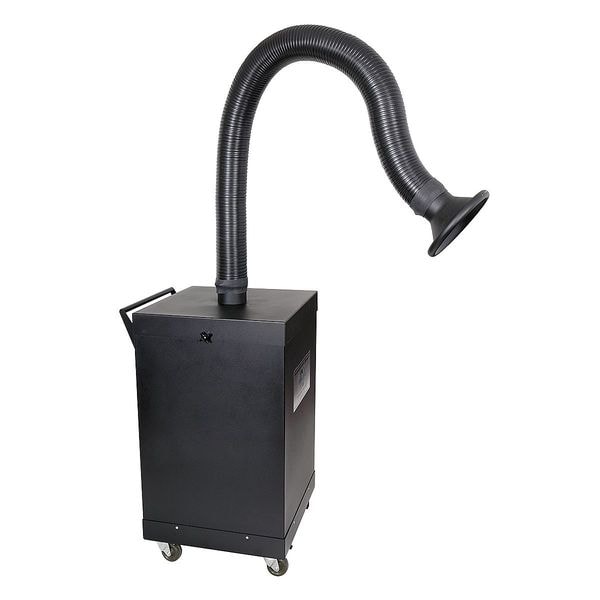

Fume Extractor and Air Cleaning System

original price: $2,997.19
11% off
new price: $2,648.99
/ea
Item requires special delivery charges. A $140.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Color Black
  • Type Fume And Dust Extractor
  • Voltage 120
  • Watts 330 W
  • Width (In.) 20 in
See all product information

Product Information

Dimensions

Width (In.) 20 in
Depth (In.) 20 in
Hose Dia. (In.) 4 in
Cord Length (Ft.) 8
Hose Length (Ft.) 5
Height (In.) 36 in
Overall Dimensions - H x W x D 36 in x 20 in x 20 in
Housing Depth 20 in
Extraction Arm Diameter 4 in
Extraction Arm Length (Maximum) 6 ft
Power Cord Length 7 ft

Details

Item Source Capture Air Cleaning System
Color Black
Type Fume And Dust Extractor
Voltage 120
Watts 330 W
Number of Speeds 1
Amps AC 2.91
MERV 14
Finish Polyurethane Powder Coated
Includes 7 ft Power Cord with Plug, Baffle Spark Trap Prefilter, Disposable Carbon Pleated Filter, Easy-Grip Handle, Heavy Duty Casters, Merv 8 Secondary Pleated Filter, Optional HEPA Filter, Optional Refillable Adsorption Modules For Chemical Fume Removal, Primary Merv 14 Cell Filter
Mount Floor
Filter Efficiency (%) 95
Hz 60
Comes With 4 in dia Extractor Arm, Three-Stage Filter
Air Flow (CFM) 400
Sound Level dBA 70
Phase Single
Sound Level 71 dB @ 5 ft
Filter Efficiency 97 %
Standards CE, OSHA, UL
Weight 123 lb
Includes Extraction Arm Yes
Motor Horsepower (Maximum) 1/8 hp
Housing Material Steel
Current 2.91 A
Housing Color Black
Filter Type Activated Carbon Filter, Disposable Minipleat Filter, Disposable Pleated Filter, Spark Arrestor
Housing Finish Polyurethane Powder Coated
Number of Extraction Arms 1
Power Consumption 350 W
Filter MERV Rating 14
Extraction Arm Material Polypropylene
Power Source Corded
Frequency 60 Hz
Input Voltage 120V AC
Minimum Air Flow 500 cfm
Filter Area 82 sq ft
Compatible Filter Manufacturer Part Number RF-400-1, RF-400-2, RF-400-3, RF-400-4
Maximum Air Flow 500 cfm

Description

Source Capture Air Cleaning System, Maximum Air Flow 500 cfm, Minimum Air Flow 500 cfm, Extraction Arm Diameter 4 in, Extraction Arm Length (Maximum) 6 ft, Filter Efficiency 97 Percent, Power Consumption 350 W, Sound Level 71 dB @ 5 ft, Filter Area 82 sq ft, Filter MERV Rating 14, Filter Type Activated Carbon Filter, Disposable Minipleat Filter, Disposable Pleated Filter, Spark Arrestor, Input Voltage 120V AC, Motor Horsepower (Maximum) 1/8 hp
