Shop EXTRACT-ALL

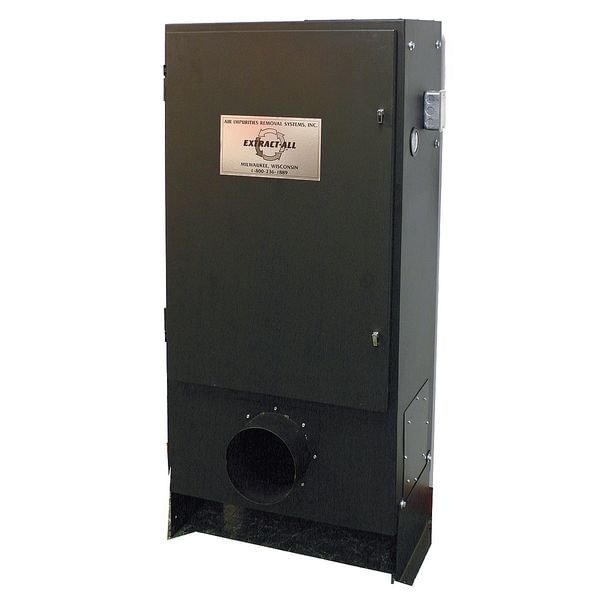

Oil Mist, Smoke and Particulate Collector

  • Mfr # E-1400G

  • Zoro # G1062616

product price:
$
5,619.99
/ea
Additional $230.00 delivery surcharge applies per item.
See details

Key Features

Air Flow
1,520 cfm, 1,610 cfm
Color
Black
Type
Oil Mist/Smoke Collector
Voltage
208/230/460V AC
Hz
60
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E-1400G
Zoro #
G1062616
UPC #
819724010109
Country of Origin
United States

Dimensions

Width (In.)
25 1/2 in
Height (In.)
51 in
Depth (In.)
16 1/2 in
Overall Dimensions - H x W x D
51 in x 25-1/2 in x 16-1/2 in
Overall Height
51 in
Overall Width
26 1/2 in
Overall Depth
16 1/2 in
Housing Thickness
16 ga
Manufacturer Warranty Length
3 yr
Inlet Collar Diameter
8 in

Details

Item
Source Capture Air Cleaning System
Air Flow
1,520 cfm, 1,610 cfm
Color
Black
Type
Oil Mist/Smoke Collector
Voltage
208/230/460V AC
Hz
60
Sound Level dBA
72 @ 6 Ft
Amps AC
2.8 A
Air Flow (CFM)
1520 to 1650
Includes
2 hp Three Phase Motor, Drain Assembly, Inlet Plenum with 8 in Diameter Collar, Mounting Brackets, Pressure Gauge
Finish
Polyurethane Powder Coated
Mount
Multiple
Number of Speeds
1
Phase
3
Filter Efficiency
95 %
Standards
CE Listed, UL Listed
Weight
189 lb
Recommended Environments
Boring, Chemical & Miscellaneous Mixing, Chuckers, CNC Machining, EDM Machining, Glue Spraying, Laser Etching, Laser Fumes, Laser Marking, Laser Printing, Lathes, Metal Turing Centers, Milling, Paint & Ink Spraying, Parts Washing, Solvent, Welding, Wet Grinding
Number of Inlet Openings
4
Amperage
2.8 A
Frequency
60 Hz
Includes Mounting Hardware
Yes
Housing Material
Steel
Air Cleaning Method
Direct Source Capture, Filtration
Housing Finish
Polyurethane Powder Coated
Mounting Hardware Included
Three-Way Brackets
Filters Out
Oil, Smoke
Noise Level
72dB at 6 ft; 70 dB at 12 ft
Motor Horsepower
2 hp
Ducted
Yes
Includes Drain Fitting
Yes
Housing Color
Black
Includes Pressure Gauge
Yes

Description

Source Capture Air Cleaning System, Air Cleaning Method Direct Source Capture, Filtration, Air Flow 1,520 cfm, 1,610 cfm, Amperage 2.8 A
