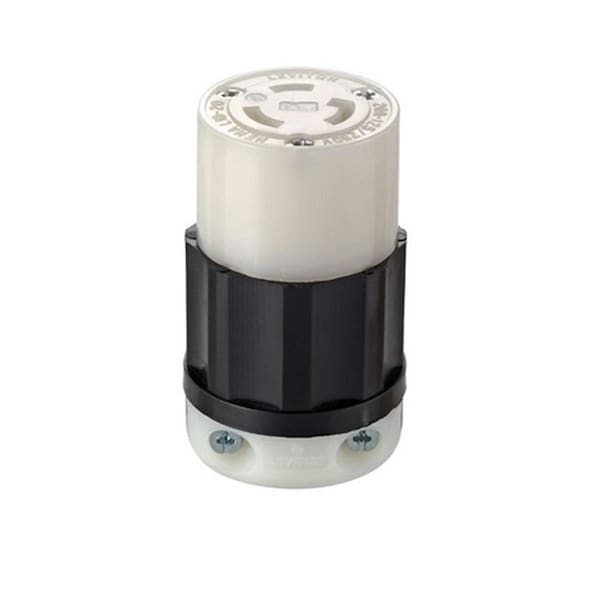

Locking Connector, L10-20R, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White
Mfr # EZ2741906
Zoro # G511962504
product price: $30.89
/eaKey Features
NEMA Receptacle Configuration
L10-20R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EZ2741906
Zoro #
G511962504
UPC #
748702068361
Country of Origin
China
Dimensions
For Maximum Cable Diameter
0.78 in
For Minimum Cable Diameter
0.385 in
Details
Item
Locking Connector
NEMA Receptacle Configuration
L10-20R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Cap Type
No Cap
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13393, UL 94, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
