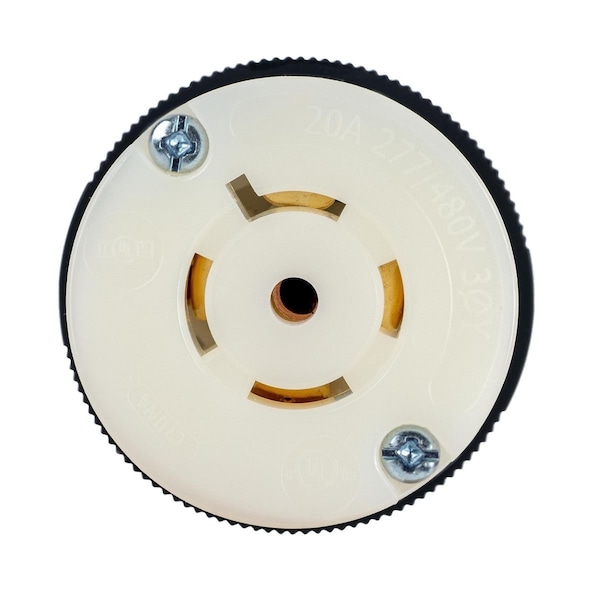

Locking Connector, L22-20R, 20 A, 277/480V AC, Three Phase, 4 Pole, Spring Clamp Terminals

  • Mfr # HBL2523ST

  • Zoro # G106170840

product price:
$
80.87
/ea

Key Features

NEMA Receptacle Configuration
L22-20R
Current Rating
20 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2523ST
Zoro #
G106170840
UPC #
783585719160
Country of Origin
China

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
For Minimum Cable Diameter
0.35 in
For Maximum Cable Diameter
1.15 in
Overall Length
2.33 in
Wire Rope Length
2.33 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L22-20R
Current Rating
20 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Spring Clamp Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
Grade
Federal Specification
IP Rating
IP20
Market
Industrial
Horsepower Rating
5 hp
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Midget Locking
No
UL 94 Flammability Rating
HB
For Environment
Dry
Housing Material
Nylon

Description

The HUBBELL Locking Connector is a screwless electrical connector intended for use in industrial settings. It features the EdgeConnectTM system, allowing insertion of wire and securing by pressing a plunger; does not require tools during installation. This connector accommodates a range of wire sizes and is suitable for dry environments requiring locking connections.


Key Features of the HUBBELL Locking Connector:

  • Wire Connection Type: Spring clamp terminals enable termination without tools via insertion of wire and depression of the plunger.

  • NEMA Configuration: Configured for three-phase power with 4 poles and 4 wires.

  • Current/Voltage Rating: Rated for 20 A at 277/480V AC; maximum horsepower rating: 5 hp.

  • Wire Size Compatibility: Compatible with wire sizes from 16 AWG to 8 AWG; accommodates cable diameters between 0.35 in and 1.15 in.

  • Operating Temperature Range: Rated operating temperature range: -40°C to +75°C.

  • Housing Material & Resistance Properties: Housing material: nylon (UL94 HB flammability rating); overall length: 2.33 inches.

  • Cord Grip Design: Cord grip design helps reduce strain on terminations; funnel-shaped entry facilitates wiring process.

  • Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, UL498 standards.
