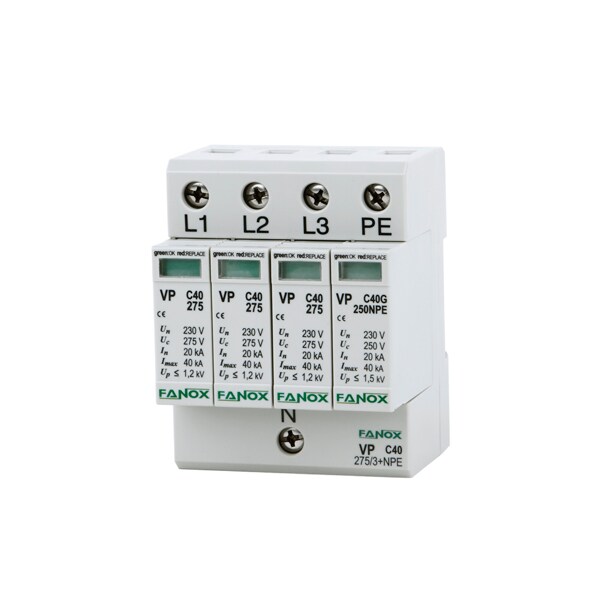

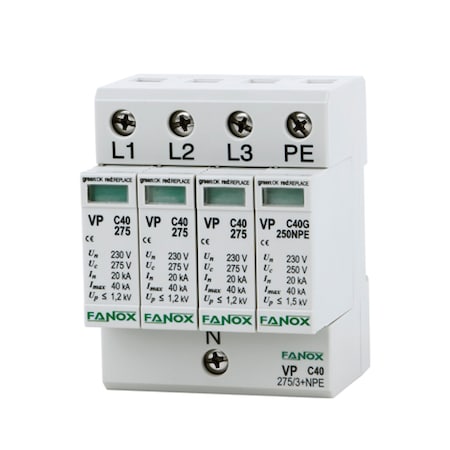

Fanox Surge Protection Device (SPD) Class II (Class C) VP C40 275/4 (Discontinued)

Fanox VP series of surge arresters protect electrical equipment and installations against transient overvoltage that may arise in the electrical supply. Besides, the VP range can be classified into 3 different types (C, B, B+C) which provide the highest protection level in order to prevent damages in the electrical equipment and financial losses.
- Compact devices for all distribution systems
- High discharge capacity via zinc oxide varistors and gas dischargers
- With thermal separation device
- Visual indication of a fault in the equipment
- Remote indication of the protection status
- Plug-in protection modules which facilitate maintenance
CODE: 41610
Model: VP C40 275/4
According to IEC 61643-1: Class II (Class C)
Type of network: TT/TN
Electrical line: 3P+N+PE
Nominal voltage Un (Vac): 230 Vac
Maximum continuous operating voltage Uc(Vac) : 275 Vac
Nominal discharge current (8/20 μs) In (kA): 20
Maximum discharge current (8/20 μs) Imax (kA): 40
Protection level Up (kV): < 1.2
Protection level at 5 kA (kV): < 1.0
Response time ta (ns): <25
Maximum back-up fuse (A gL/gG): 125
No Modules: 4
Plug-in modules Code: 41611
