This item is Discontinued.

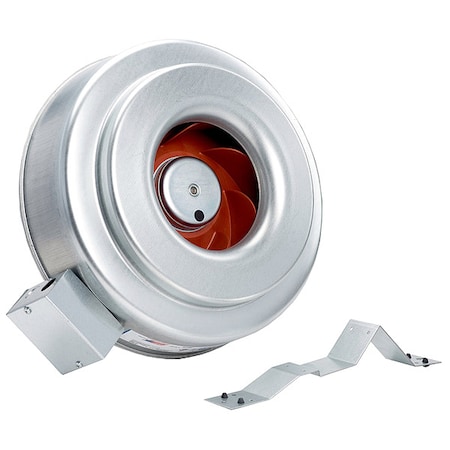

Fantech Centrifugal Inline Duct Fan, 12 In. Dia. FG 12 EC

Centrifugal Inline Duct Fan, 12 In. Dia. (Discontinued)

  • Mfr # FG 12 EC
  • Zoro # G7514245
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FG 12 EC
Zoro #
G7514245
UPC #
650737499037
Country of Origin
Germany

Dimensions

Fits Duct Dia.
12 in
Housing Dia.
16 in
Length
8 15/16 in
Inlet and Outlet Dia.
12 in
Flange Width
1 7/8 in
Overall Diameter
16 in
Overall Width
8 in
Duct Diameter
12 in
Overall Dimensions H x W
18 in x 8 in
Overall Height
18 in

Details

Item
In-Line Duct Fan
Housing Material
Galvanized Steel
Voltage
120v
Hz
60
Max. Amps
0.95 A
CFM @ 0.000-In. SP
633
Max. Wattage
153
Number of Speeds
1
Motor RPM
2665
Phase
1
CFM @ 0.500-In. SP
560 cfm
Bearing Type
Ball Bearing
CFM @ 0.600-In. SP
577 cfm
CFM @ 0.750-In. SP
515 cfm
Max. Inlet Temp.
140 Degrees F
Housing Finish
G90
CFM @ 0.800-In. SP
542 cfm
CFM @ 0.400-In. SP
600 cfm
Mounting Position
Horizontal or Vertical
CFM @ 1.000-In. SP
467 cfm
CFM @ 0.125-In. SP
616 cfm
Standards
AMCA, cULus, cCSAus, HVI
CFM @ Duct
600 cfm
Motor Enclosure
44 IP
Speed Control
Yes
Green Certification or Other Recognition
ENERGY STAR
CFM @ 1.500-In. SP
379 cfm
CFM @ 0.375-In. SP
582 cfm
CFM @ 0.200-In. SP
621 cfm
CFM @ 0.250-In. SP
594 cfm
Includes
Mounting Bracket
Product Type
Centrifugal Inline Duct Fan
Maximum Inlet Air Temperature
140 Degrees F
Mounting Orientation
Horizontal or Vertical
Speed Control Included
Yes
Speed Controllable
Yes
Airflow @ 0.000 in SP
633 cfm
Airflow @ 0.000 in. SP - Range
0 to 999 cfm
Motor Output Power
136 W
Application
General Purpose
Nameplate Voltage
120V AC
Motor IP Rating
IP44
Motor Speed
2,665 RPM
Airflow @ 0.000 in SP - Range
500 to 749 cfm
High-Efficiency Motor
Yes
Nominal Voltage
120V AC
For Fan Type
Centrifugal Duct Fan

Description

In-Line Duct Fan, For Fan Type Centrifugal Duct Fan, Airflow @ 0.000 in SP 633 cfm, Duct Diameter 12 in, Motor Output Power 136 W, Motor IP Rating IP44, Nameplate Voltage 120V AC, Phase 1, Number of Speeds 1, Overall Diameter 16 in, Overall Height 18 in, Overall Width 8 in, Application General Purpose, High-Efficiency Motor Yes, Housing Material Galvanized Steel, Motor Speed 2,665 RPM, Includes Mounting Bracket, Maximum Inlet Air Temperature 140 Degrees F, Speed Control Included Yes
