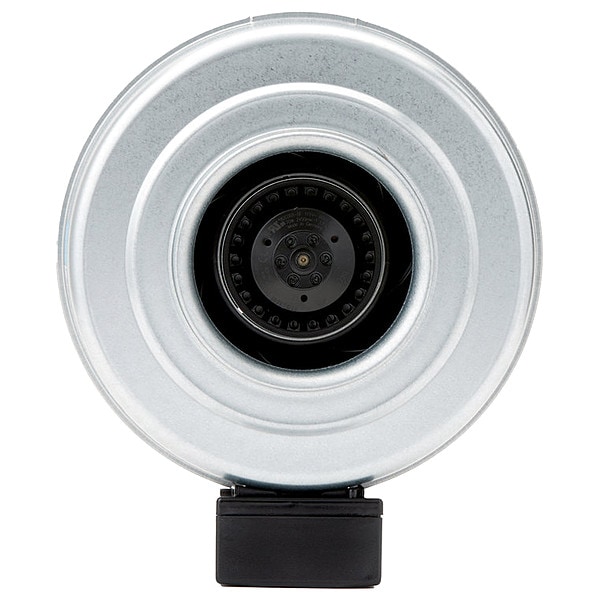

Fantech Inline Centrifugal Duct Fan, 6 In. Dia. 45017 - main

Inline Centrifugal Duct Fan, 6 In. Dia.

  • Mfr # 45017

  • Zoro # G0845275

product price: $175.99
/ea
Free Shipping & Returns

Key Features

Max. Amps
0.68 A
Voltage
120v
Includes
Mounting Bracket
Max. Wattage
72
Housing Dia.
11 3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45017
Zoro #
G0845275
UPC #
650737480608
Country of Origin
Multiple

Dimensions

Housing Dia.
11 3/8 in
Fits Duct Dia.
6 in
Length
6 1/8 in
Inlet and Outlet Dia.
5 7/8 in
Overall Width
7 1/2 in
Overall Height
13 3/8 in
Duct Diameter
6 in
Overall Diameter
11 3/8 in

Details

Item
In-Line Duct Fan
Max. Amps
0.68 A
Voltage
120v
Includes
Mounting Bracket
Max. Wattage
72
Hz
60
CFM @ 0.125-In. SP
284 cfm
Number of Speeds
1
Motor Enclosure
Totally Enclosed
CFM @ 0.250-In. SP
260 cfm
Motor RPM
2700
CFM @ 1.500-In. SP
58 cfm
CFM @ 0.200-In. SP
270 cfm
Housing Material
Galvanized Steel
Phase
1
CFM @ 0.375-In. SP
241 cfm
CFM @ 0.000-In. SP
303
Standards
AMCA, cULus
CFM @ 1.200-In. SP
97 cfm
Bearing Type
Ball Bearing
CFM @ 0.750-In. SP
172 cfm
CFM @ 0.800-In. SP
164 cfm
CFM @ 0.600-In. SP
196 cfm
CFM @ 0.400-In. SP
232 cfm
Motor HP
1/10 hp
Green Certification or Other Recognition
ENERGY STAR
Speed Control
Mfr. No. 48C172
Max. Inlet Temp.
140 Degrees F
CFM @ Duct
303 cfm
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Mounting Position
Horizontal or Vertical
CFM @ 0.500-In. SP
214 cfm
CFM @ 1.000-In. SP
134 cfm
Motor IP Rating
IP44
High-Efficiency Motor
No
Speed Controllable
Yes
Nameplate Voltage
120V AC
Maximum Inlet Air Temperature
140 Degrees F
Motor Speed
2,700 RPM
For Fan Type
Centrifugal Duct Fan
Motor Output Power
70 W
Speed Control Included
No
Airflow @ 0.000 in SP
303 cfm
Application
General Purpose
Mounting Orientation
Horizontal or Vertical

Description

In-Line Duct Fan, For Fan Type Centrifugal Duct Fan, Airflow @ 0.000 in SP 290 cfm, Duct Diameter 6 in, Motor Output Power 70 W, Motor IP Rating IP44, Nameplate Voltage 120V AC, Phase 1, Number of Speeds 1, Overall Diameter 11 3/8 in, Overall Height 13 3/8 in, Overall Width 7 1/2 in, Application General Purpose, High-Efficiency Motor No, Housing Material Galvanized Steel, Motor Speed 2,700 RPM, Includes Mounting Bracket, Maximum Inlet Air Temperature 140 Degrees F, Speed Control Included No
